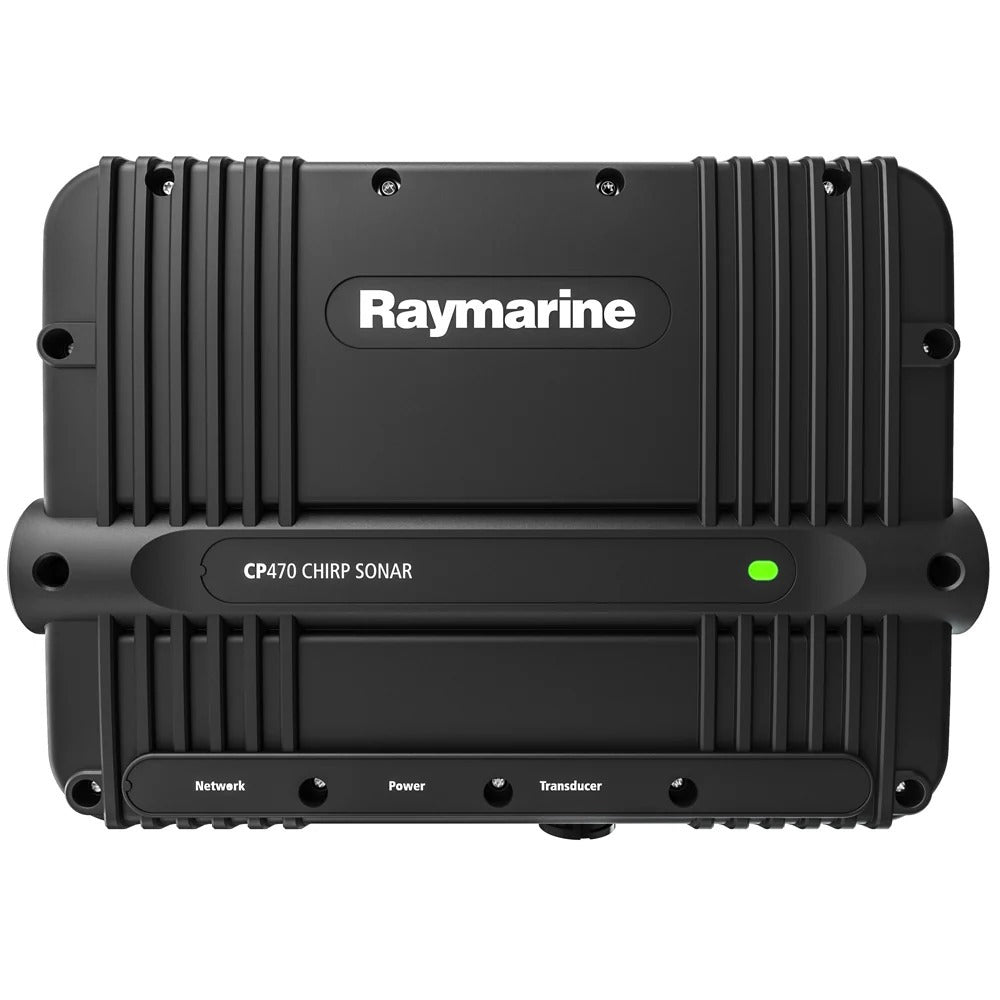

CHIRP vs. Traditional Sonar: What's The Difference And Which Do You Need?

Key Takeaways:

• CHIRP Wins At Depth: CHIRP sonar sweeps multiple frequencies per pulse, producing cleaner target separation and stronger returns than single-frequency sonar at serious fishing depths.
• Transducer Choice Is Critical: The transducer has to match the sonar module's frequency range, the hull type, and the depth the boat actually fishes, or performance suffers, no matter how good the module is.
• Installation Determines Results: Placement, cable routing, and network integration shape every return that shows up on screen. The hardware alone doesn't guarantee performance.

This guide is written for DIY captains running roughly 25–60 ft center consoles and offshore sportfish boats who want cleaner sonar returns without guessing what they're seeing on the screen.

Two anglers can be fishing the same depth with the same budget and end up looking at two very different pictures. One sees clean fish arches with clear separation from the bottom. The other sees a blurred return that could be fish, could be structure, or could be nothing worth marking. That gap almost always comes down to the sonar technology behind the screen, and specifically whether the system is running CHIRP or traditional sonar.

Running a 70 ft+ yacht or planning a full refit? Talk to our yacht electronics team about professional sonar and network design.

At Concord Marine Electronics, we have installed sonar systems on vessels ranging from inshore center consoles to offshore sportfish builds. We have also spent plenty of time diagnosing systems that were installed correctly on paper but underperformed on the water. From this experience, we know what separates a system that produces actionable returns from one that leaves anglers guessing.

This piece walks through CHIRP vs. traditional sonar, how to think through transducer selection, and which setup fits different fishing styles.

Want to see CHIRP sonar modules we recommend?

View CHIRP black box modules and transducers that fit most 25–60 ft offshore fishing boats.

Shop CHIRP Sonar Modules & Transducers →

How Traditional Sonar Works

Traditional sonar transmits a single fixed-frequency pulse and waits for the return. Understanding that process makes it clear exactly where the technology's ceiling sits.

The Single-Frequency Signal And Its Limits

Traditional sonar emits a pulse at a single fixed frequency and measures the echo that returns. A narrower frequency carries less acoustic energy per transmission, which makes it harder for the system to resolve targets that are close together in the water column.

Why Transmit Power Alone Is Not Enough

Increasing power pushes the signal deeper, but it does not improve target separation. Two fish holding near the bottom at 300 feet will return as a single blurred echo on a single-frequency system, regardless of how much power is driving the pulse.

How Speed And Depth Expose The Weaknesses

At higher boat speeds, turbulence around the transducer introduces noise into the return and reduces the effective depth range. Deep water compounds the problem further, since signal degradation accumulates across the water column before anything makes it back to the transducer. For a broader look at how these electronics interact with the rest of the helm, our Best Boat Radar Systems 2026 Comparison covers similar tradeoffs between raw output and usable performance.

Where It Falls Short

For nearshore fishing at moderate depths, traditional sonar performs adequately. The limitations become significant once depth increases past a few hundred feet, once fish are holding tight to structure, or once the boat is running at speed. Those are exactly the conditions that define serious offshore fishing.

What CHIRP Changes

CHIRP operates on a different signal principle entirely. Rather than being an upgraded version of traditional sonar, it is a unique approach to how acoustic energy enters and returns from the water column.

How Does CHIRP Sonar Work?

Instead of transmitting at one fixed frequency, CHIRP sweeps continuously across a range of frequencies within each pulse. That sweep produces more acoustic energy per transmission without increasing power draw, and the return carries far more information about what it reflected off of. For additional reading, our Marine Electronics Definitive Guide goes into more detail on how sonar fits into a complete onboard electronics build.

Target Separation And What It Means For Anglers

On traditional sonar, fish holding tight to the bottom at 400 feet tend to merge into the bottom return and disappear. On CHIRP, those same fish typically show up as distinct arches, because the system can resolve the difference between the fish and the substrate underneath them. That distinction changes where an angler decides to drop.

Traditional Sonar vs. CHIRP Fishfinder On The Water

The gap between traditional sonar and a CHIRP fishfinder shows up most clearly at depth and at speed. On a drift in 800 feet of water, CHIRP can resolve suspended fish layers and bottom composition that single-frequency sonar cannot tell apart.

Reading Fish, Bottom, And Structure With CHIRP

CHIRP returns show bottom hardness through signal intensity. A hard rock bottom returns a strong, narrow line, while soft mud returns a thicker, weaker signal. Fish arches tend to come through cleaner and better defined, which makes productive bottom features faster to spot and act on.

Picking The Right Transducer

The transducer is where every sonar signal originates, and the wrong choice can undermine an otherwise capable module before a single return ever reaches the screen.

• Frequency Range Match: The transducer's frequency range needs to align with the sonar module's operating range. For instance, a module that sweeps 40 kHz to 225 kHz needs a transducer rated across that same range, or the sweep advantage is lost before it starts.
• Beam Angle And Coverage: Wider beams cover more lateral area, which suits nearshore structure fishing. By contrast, narrower beams concentrate energy for better target separation at offshore depth.
• Matching The Transducer To The Boat: The right choice depends on hull material, typical cruising speed, and target depth. Thru-hull transducers tend to suit larger boats running at higher speeds, while transom-mount units work well on smaller boats in shallower water.
• Mounting Position: A transducer placed in a turbulent flow zone introduces noise into every return, regardless of how capable the module is. Correct placement is a prerequisite, not an afterthought.
• Power Rating: Serious offshore canyon fishing at 1,000 feet or deeper requires a transducer rated for the module's full power output. An undersized transducer caps depth performance no matter what is driving it.

Want to see CHIRP sonar modules we recommend?

Shop CHIRP Sonar Modules & Transducers →

Recommended CHIRP Sonar Modules for 25–60 ft Offshore Boats

Garmin GSD 28 – Flagship Offshore CHIRP Best for: Garmin-equipped 30–60 ft offshore boats fishing roughly 300–1,200 ft.

• Dual-channel CHIRP across low and high frequencies
• Up to 3 kW per channel (with matched transducer)
• Integrates via Garmin Marine Network for shared sonar across displays View Garmin GSD 28 →

Raymarine CP570 – High-Power CHIRP for Deep Drops Best for: Raymarine-equipped 30–60 ft boats targeting canyon depths and deep structure.

• High-power CHIRP for serious offshore work
• Dual-channel operation with compatible transducers
• Integrates with Raymarine multifunction displays over SeaTalk HS View Raymarine CP570 →

Recommended CHIRP Transducers for Offshore Fishing

Garmin GT20-TM - DownVu 500W (CHIRP 455/800kHz), Traditional 500W (77/200kHz), 4-Pin [010-01960-00] Best for: budget-conscious owners who want both sonar types without a second transducer. View Garmin GT20-TM Transom Mount DownVu 500W →

Garmin GT51M-TM - DownVu/SideVu 500W CHIRP, Traditional 600W Mid-Band CHIRP, 12-Pin [010-01966-00] Best for: anglers who want SideVu structure scanning alongside standard fishfinding. View Garmin GT51M-TM Transom Mount DownVu/SideVu 500W →

Garmin GT56UHD-TM - Ultra HD Transom Mount Transducer [010-13073-00]
Best for: owners upgrading for max image clarity, no traditional sonar fallback needed. View Garmin GT56UHD-TM Transom Mount Transducer →

Recommended Add-Ons for CHIRP Sonar Systems

NMEA 2000 Starter Backbone Kits Best for: boats adding CHIRP sonar to an existing electronics setup and needing clean network integration. View NMEA 2000 Kits →

Network Cables and Switches Best for: multi-display helms that need reliable connectivity between modules and screens. View Network Accessories →

Fairing Blocks and Mounting Hardware Best for: thru-hull CHIRP transducers on 30–60 ft offshore hulls. View Mounting Hardware →

Which System Fits Your Fishing Style?

The right sonar setup comes down to how the boat is used, not what looks impressive on a spec sheet.

Nearshore And Coastal Applications

For fishing in 50 to 200 feet of water, a quality integrated CHIRP sonar delivers noticeably better target separation than traditional sonar, without requiring a dedicated black box module. The improvement shows up immediately in real fishing conditions. Our Best Marine Radar for Coastal Navigation guide covers similar thinking for building out a complete coastal electronics setup.

Offshore And Deep Water Requirements

Beyond 300 feet, and especially at canyon depths of 800 feet or more, a dedicated black box CHIRP sonar module paired with a matched high-power transducer becomes the baseline for reliable returns. At these depths, the best CHIRP transducer for boats fishing offshore is almost always a high-power thru-hull unit rated for the module's full output, since anything undersized will cap performance regardless of the module driving it. Integrated sonar generally is not built for the power levels or frequency management that serious offshore work requires. For a closer look at how a dedicated black box module changes the sonar architecture on a boat, our Network Sounder guide breaks down how these modules work and which Garmin and Raymarine options fit different offshore builds.

CHIRP Sonar Module Comparison Across Platforms

A CHIRP sonar module comparison between the Garmin GSD series and the Raymarine CP series shows strong performance from both, provided the module is correctly matched to the boat and transducer. Garmin GSD modules integrate through the Garmin Marine Network, while Raymarine CP modules connect via SeaTalk High Speed (HS), and neither crosses over without interface hardware. That makes an existing chartplotter investment one of the biggest factors in the decision. Our Garmin vs. Raymarine Comparison breaks down the platform differences in more depth.

How Sonar Ties Into Your Full Electronics Network

A correctly designed NMEA 2000 backbone lets every display on the boat access the same sonar picture at the same time, without duplicating hardware. Our NMEA 2000 Explained guide covers how sonar fits into that kind of integrated onboard network.

DIY vs Professional Installation

Good DIY fit: single-station, trailerable boats with simple transom-mount CHIRP transducers and straightforward wiring runs. Call a pro: 30 ft+ boats, thru-hull or tilted-element transducers, multi-station networks, or anything tied into a larger NMEA 2000 backbone.

Most mystery sonar issues offshore come from transducer placement, cabling, or configuration, not the black box itself.

Prefer professional installation? South Florida customers receive a 10% installation credit on all shop purchases with Concord Marine Electronics at Safe Harbor Lauderdale Marine Center. Learn about professional sonar installation →

Final Thoughts

The gap between CHIRP and traditional sonar is not really a matter of preference. It comes down to what single-frequency physics can and cannot resolve at depth. For nearshore fishing, CHIRP delivers a meaningfully clearer picture. For serious offshore work, it functions as the baseline requirement rather than an upgrade.

At Concord Marine Electronics, we approach sonar systems starting from the transducer and working up. Our certified technicians handle module selection, transducer matching, network integration, and commissioning, so the system performs the way it is supposed to from the first trip out. Contact Concord Marine Electronics to discuss the right CHIRP sonar setup for your boat.

Want to see CHIRP sonar modules we recommend?

View CHIRP black box modules and transducers that fit most 25–60 ft offshore fishing boats.

Shop CHIRP Sonar Modules & Transducers →

Frequently Asked Questions About CHIRP vs. Traditional Sonar

What is the main difference between CHIRP vs. traditional sonar?

CHIRP sweeps multiple frequencies per pulse, which produces sharper returns and better target separation at depth than a single fixed-frequency pulse.

What makes CHIRP sonar technology different from a conventional single-frequency system?

It transmits a continuous frequency sweep rather than one fixed pulse, which delivers more acoustic energy per transmission and cleaner resolution on the return.

What should offshore anglers look for in a transducer paired with a CHIRP module?

Serious anglers should look for a high-power thru-hull unit that matches the module's frequency range and is rated for the depths the boat actually fishes.

Does CHIRP sonar perform better at speed than traditional sonar?

Generally, yes. The broader frequency sweep provides more signal redundancy per transmission, which helps CHIRP handle turbulence-related noise better than single-frequency sonar.

Can a CHIRP sonar module work with an existing chartplotter?

It depends on the brand. Garmin GSD modules are built for Garmin displays, and Raymarine CP modules are built for Raymarine displays, so crossing platforms typically requires interface hardware.

Is CHIRP sonar worth it for nearshore fishing, or only offshore?

CHIRP tends to deliver noticeably better target separation even nearshore, which makes it worth considering at most serious fishing depths, not just offshore.
