CHIRP Sonar

CHIRP sonar changes the fundamental way sound energy reads the water column, and the difference in results is significant and immediate.

The Frequency Range That Separates CHIRP From Conventional Sonar

CHIRP sonar sweeps continuously across a range of frequencies within each pulse, producing more acoustic energy per transmission without increasing power draw. The result is sharper target separation, better signal-to-noise ratio at depth, and the ability to distinguish fish from structure that conventional sonar renders as a single blurred return.

How A Network Sounder For Boats Distributes Sonar Across Multiple Displays

A network sounder for boats separates the sonar processing hardware from the display, sharing sonar data across multiple chartplotters simultaneously. This is particularly useful on boats with a pilothouse helm and a separate fishing station where both positions need the same sonar picture. Figuring out how these systems communicate starts with our NMEA 2000 Explained guide.

Transducer Selection And Why It Shapes Everything You See

The transducer's frequency range, beam angle, power rating, and mounting position determine what the sonar module can detect and how clearly it displays it. The thing is, a high-performance CHIRP sonar module paired with an incorrectly mounted transducer will not deliver the returns it is capable of producing. Both must be matched to the boat before any order is placed.

CHIRP Sonar In Offshore And Nearshore Conditions

How CHIRP sonar performs changes significantly between nearshore structure fishing and deep offshore work, and that distinction shapes which module fits your boat.

Black Box Sonar Module For Offshore Fishing And Deep Water Performance

A black box sonar module for offshore fishing separates the sonar processor from the display, driving higher transmit power, supporting wider frequency ranges, and handling the depth and signal complexity that integrated sonar units are not designed to manage. For serious offshore work, the black box format is the baseline requirement. Our Marine Electronics Definitive Guide covers how sonar fits into a complete electronics build.

How Target Separation Changes The Way You Fish Offshore

With conventional sonar, fish stacked near the bottom merge into the bottom return and become invisible. With CHIRP sonar, those same fish appear as distinct targets above the bottom, giving the captain actionable information rather than an ambiguous return that requires guesswork. That distinction affects trolling depth decisions, drift positioning, and anchoring locations when targeting specific species.

Why Boat Speed Affects Sonar Returns And What To Do About It

At higher speeds, water turbulence around the transducer introduces noise into the sonar return and impacts the effective depth range. CHIRP sonar handles speed-induced noise better than conventional single-frequency sonar, but proper transducer placement remains critical regardless of which module is driving it.

Garmin And Raymarine CHIRP Sonar Options Compared

Both platforms build capable CHIRP sonar systems. The right choice depends on your boat, existing network equipment, and depth requirements.

Garmin GSD Sonar Module And Network Integration

The Garmin GSD sonar module lineup connects to compatible Garmin chartplotters via the Garmin Marine Network, sharing sonar data across all compatible displays simultaneously. Generally speaking, GSD modules support high-power CHIRP transmission and work with a wide range of Airmar transducers, enabling flexible installation across boat types. For a direct platform breakdown, our Garmin vs. Raymarine comparison covers the key differences between these top brands.

Raymarine CP Series Sonar And Its Real-World Applications

The Raymarine CP series sonar modules connect via RayNet to compatible Raymarine chartplotters and deliver professional-grade CHIRP performance across nearshore and offshore depth profiles. The CP series uses wide-spectrum CHIRP technology across dual independent channels, giving captains high-resolution target separation and reliable bottom tracking from a single module.

How Both Platforms Connect To Your Existing Marine Network

Garmin GSD modules communicate via the Garmin Marine Network, whereas Raymarine CP modules communicate via RayNet. Neither platform crosses over without additional interface hardware, making existing chartplotter investment a significant factor in module selection. Our Marine Electronics Installation Expectations guide covers what the integration process looks like from design through commissioning.

Ready to pick a module?

View CHIRP Sonar Modules →

Recommended CHIRP Sonar Modules For Offshore And Coastal Fishing

Every module in this lineup is selected for proven performance in the conditions anglers actually fish.

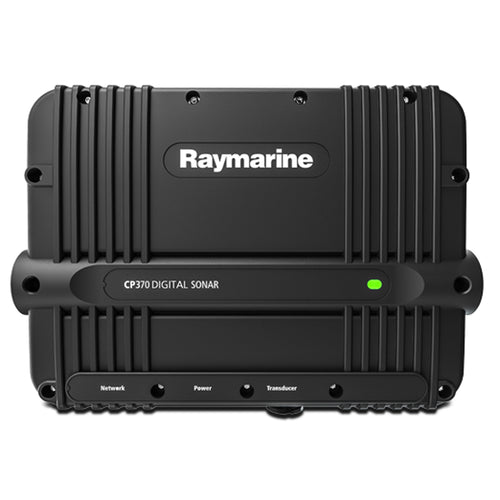

Good: Raymarine CP370 — Step-Up From Conventional Sonar

Best for: 25–40 ft coastal boats transitioning from fixed-frequency sonar who want better target clarity to 5,000 ft.

The Raymarine CP370 Digital Sonar Module provides ClearPulse™ signal processing at 50kHz and 200kHz, up to 1,000 watts of power, and depth capability to 5,000 feet. ClearPulse intelligently manages sonar parameters across conditions so anglers spend less time adjusting settings and more time fishing.

• Fixed 50/200kHz ClearPulse processing
• Depth capability to 5,000 ft
• Practical entry point into black box sonar

View Raymarine CP370 →

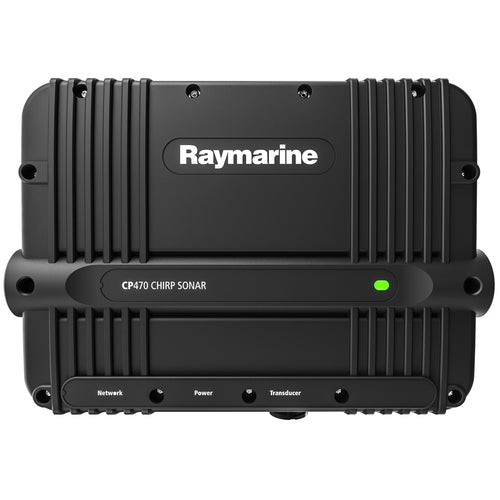

Better: Raymarine CP470 — Offshore CHIRP For Serious Anglers

Best for: 30–50 ft boats doing regular offshore trips to 10,000 ft that don't need full tournament-grade power.

Engineered for serious anglers, this is a strong CHIRP performer for offshore and coastal applications, delivering 1kW to 2kW depending on transducer across dual independent channels spanning 25 to 250kHz. It shares the CP570's 10,000-foot depth capability, TruZoom magnification, and automatic transducer identification, at a lower output tier.

• Dual-channel CHIRP, 25–250kHz
• 1kW–2kW output depending on transducer
• Depth capability to 10,000 ft, TruZoom magnification

View Raymarine CP470 →

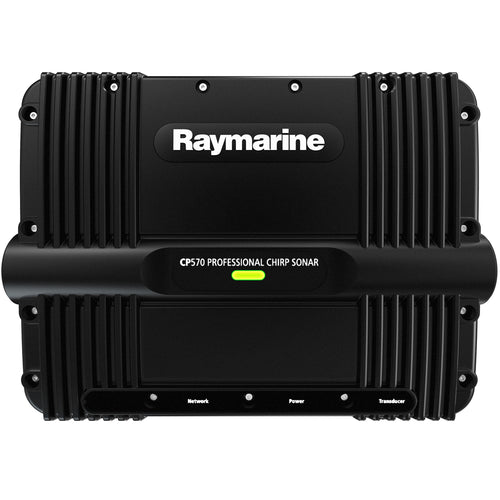

Best: Raymarine CP570 — Tournament-Grade Offshore CHIRP

Best for: 30–70 ft offshore and tournament boats that want dual 2kW channels and maximum depth performance.

Raymarine's professional-grade CHIRP module for serious offshore and tournament fishing. Two fully independent 2kW CHIRP channels deliver up to 4kW combined output power, spanning 25 to 250kHz, with depth capability to 10,000 feet. TruZoom magnification reveals extra target detail without resolution loss, automatic transducer identification adjusts parameters on connection, and an IPX6 waterproof aluminum enclosure adds durability.

• Dual independent 2kW channels, up to 4kW combined
• Depth capability to 10,000 ft
• IPX6 waterproof aluminum enclosure

View Raymarine CP570 →

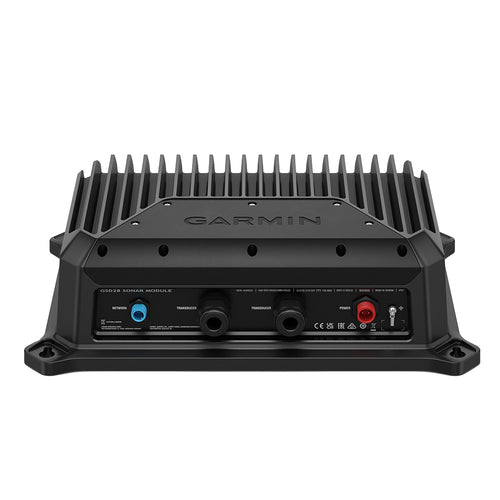

Running Garmin? Garmin GSD 28 — Flagship Offshore Module

Best for: Garmin-equipped offshore boats targeting deep structure and pelagics with maximum resolution and ping rate.

Garmin's most capable black box sonar module, engineered specifically for offshore sport fishing. Dual-channel CHIRP from 25 to 250kHz with transmit power from 300W to 3kW per channel, depending on the transducer. xCHIRP technology lets you distinguish bait from sport fish with Garmin's clearest traditional sonar fish arches. RapidReturn sonar provides two to six times the ping rate of Garmin's GSD 26, allowing faster decisions based on what's below the boat.

• Dual-channel CHIRP, 25–250kHz, up to 3kW per channel
• xCHIRP target separation, RapidReturn ping rate
• The module we consistently recommend for Garmin-navigation boats

View Garmin GSD 28 →

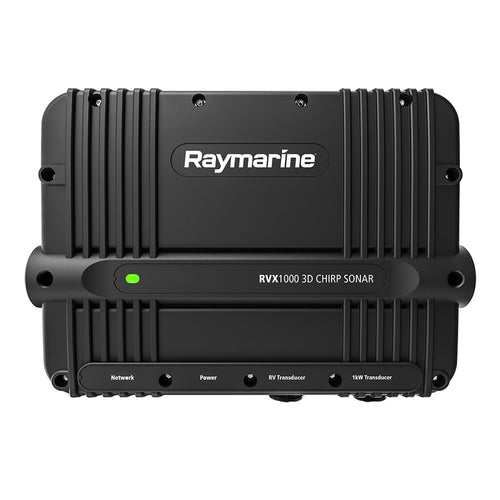

Fishing Structure? Raymarine RVX1000 — 3D Structure Fishing

Best for: Boats fishing complex structure where 3D and scroll-back change how you work a mark.

A five-channel sonar module combining RealVision 3D, CHIRP DownVision, CHIRP SideVision, high-frequency CHIRP, and 1kW high-power CHIRP in a single black box. RealVision 3D gyro stabilization compensates for boat movement, delivering stable three-dimensional imagery in rough conditions. Depth capability varies by mode: 1kW CHIRP to 5,000 ft, high-frequency CHIRP to 900 ft, DownVision to 600 ft, and SideVision to 300 ft port and starboard. Sonar Scroll Back allows rewind and playback of recorded sonar history.

• Five-channel: RealVision 3D, DownVision, SideVision, high-frequency and 1kW CHIRP
• Gyro-stabilized 3D imagery, Sonar Scroll Back
• Built for structure fishing, not just open-water depth

View Raymarine RVX1000 →

Recommended Add-Ons For CHIRP Sonar

A module is only half the system. The transducer and network determine whether it performs the way it's rated to.

Offshore Transducer Pairings — Best for deep-drop and canyon fishing, where transducer power rating and mounting position drive depth performance as much as the module itself. Match the transducer's power rating and frequency range to the module before ordering either one. [Button: View transducer options →](URL NEEDED — see production notes)

NMEA 2000 Network Components — Ensures the module shares sonar data to every display cleanly, without bottlenecking at the network level. Backbone cable, tees, and terminators are where most "the sonar drops out intermittently" problems actually originate. View NMEA 2000 networking →

DIY vs. Professional CHIRP Sonar Installation

Not every install needs a technician, but some do, and the difference usually shows up at speed offshore, not at the dock.

Good DIY fit: Single-station installs on smaller boats with simple bilge layouts where you're comfortable drilling, fairing, sealing, and running cable.

Call a pro instead if: You're installing a thru-hull or pocket-mount transducer, running a 40 ft+ boat, wiring multiple stations, or integrating with an existing network and engine electronics.

Cabling matters as much as mounting. Noisy or poorly routed cable runs cause the same symptoms as a bad transducer mount, and most captains blame the module first.

Plan for more time than you think. A clean single-station install is a half-day job for most owners; multi-station or thru-hull installs run longer.

Based in South Florida and prefer professional installation? Equipment purchased through this store qualifies for a 10% installation credit with Concord Marine Electronics at Safe Harbor Lauderdale Marine Center.

Ready to upgrade your sonar?

CHIRP Sonar Module to Cart →
