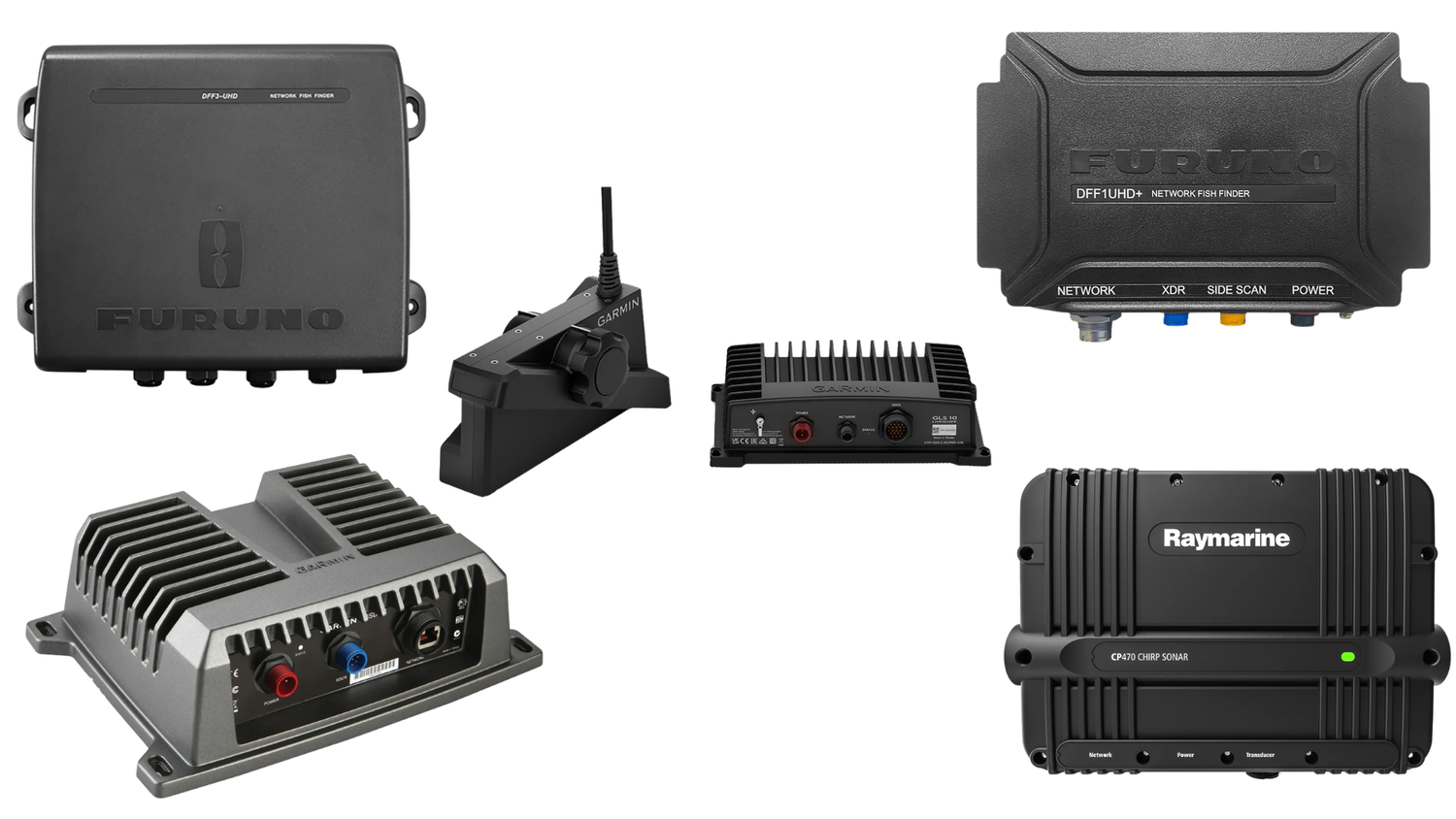

What Is A Black Box Sonar Module? Network Sounders Explained For Offshore Anglers

Key Takeaways:

• Separate Processor, Better Performance: A black box fishfinder module separates the sonar processor from the display, unlocking higher power output and deeper-water capability.
• Multi-Station Data Sharing: A network sounder simultaneously shares sonar data across every compatible display on the boat, without duplicating hardware.
• Installation Drives Results: Transducer matching, network configuration, and cable routing determine whether a sonar module performs to its rated capability.



Offshore fishing exposes the limits of integrated sonar faster than any other use case. Deep water, multiple helm stations, and complex bottom structure all demand more transmit power, more frequency flexibility, and more processing capacity than a chartplotter's built-in sonar can reliably deliver.

This guide is written for serious offshore anglers running roughly 25–70 ft center consoles and sportfish boats who are out-fishing the limits of built-in sonar and considering a black box upgrade.

Running a 70 ft+ yacht with a full electronics or network refit on the horizon? Talk to our yacht electronics team about professional sonar and network design.

At Concord Marine Electronics, we have spent over three decades installing sonar systems on serious fishing boats. We know what separates a system that produces clean, actionable returns at depth from one that looks capable on paper but underperforms when conditions get demanding.

This piece explains what a network sounder is, how it works, what CHIRP technology adds offshore, and what anglers need to know before committing to a black box sonar build.



Want to see black box sonar modules we recommend?

View Garmin and Raymarine network sounders suited for offshore center consoles and sportfish boats.

Shop CHIRP Sonar & Network Sounders →



The Problem With Integrated Sonar On Serious Fishing Boats

Built-in sonar handles coastal conditions well, but offshore depth and multi-station demands quickly expose its limitations. Integrated sonar is designed to serve the broadest range of users from a single unit, providing a practical solution for recreational and coastal boating that begins to show its limits as depth increases, boat speed increases, or multiple stations need simultaneous access to the same sonar picture.



Where Built-In Sonar Hits Its Ceiling Offshore

The deeper issue is architectural. When the sonar processor shares physical space and resources with the chartplotter, both functions compete for the same processing capacity and heat management. That competition limits transmit power, frequency flexibility, and the ability to drive high-resolution returns at the depths serious offshore anglers target. Our Marine Electronics Definitive Guide covers how each component fits into a complete offshore electronics build.



How A Black Box Fishfinder Module Changes The Architecture

A black box fishfinder module mounts independently, connects directly to the transducer, and feeds processed sonar data to every compatible chartplotter on the boat's network simultaneously. That division of responsibility between the display and the sonar processor eliminates the constraints of integrated sonar, allowing the module to drive higher transmit power and produce better returns under conditions that push an integrated unit past its limits.





How Does A Network Sounder Work?

Understanding the mechanics behind a network sounder makes it easier to match the right module to the right boat and fishing profile.



Network Sounder Mechanics From The Transducer Up

The transducer sends sound pulses into the water column, receives the returning signal, and passes it to the sonar module for processing before the image appears on the chartplotter screen. That processing step, handled by a dedicated black box rather than a shared chartplotter processor, is what allows the system to deliver crisper returns at greater depth. For a full explanation of how that signal travels across the boat's network, our NMEA 2000 Explained guide covers the network backbone that carries sonar data, GPS position, depth, and heading to every connected device.



The Role Of Transmit Power In Deep Water Performance

Transmit power determines how much acoustic energy reaches depth and returns with enough strength to produce a clean signal. Entry-level integrated sonar typically operates below 500 watts. Meanwhile, dedicated black box modules for offshore use start at 1 kilowatt, enough to maintain reliable returns at depths where integrated sonar produces blurred or incomplete pictures. Matching power output to the depths the boat actually fishes is one of the first decisions that determines whether the system provides what the angler needs.



How Sonar Data Travels Across A Marine Network

Once the sonar module processes the return signal, it distributes that data to every compatible display on the boat's network simultaneously. So, a captain at the helm and a crew member at a separate fishing station both see the same sonar picture in real time, without additional sonar hardware at each position, which is a meaningful operational advantage on boats where multiple people make fishing decisions from different locations. When the network backbone is designed and installed correctly, every device communicates cleanly. When it is not, intermittent failures follow. Our Marine Electronics Installation Expectations guide covers what a properly commissioned installation looks like from start to finish.



CHIRP Sonar Module For Offshore Fishing Performance

CHIRP technology inside a dedicated black box raises the capability ceiling well beyond what conventional single-frequency sonar can offer at offshore depths.



The Frequency Sweep That Separates CHIRP From Single-Frequency Sonar

A CHIRP sonar module for offshore fishing sweeps continuously across a range of frequencies within each pulse, producing more acoustic energy per transmission and sharper target separation in the water column. Fish that merge into the bottom return on conventional sonar appear as distinct targets on CHIRP, which changes how an angler reads the screen and where they decide to fish.



Target Separation At Depth And Why It Changes How You Fish

At offshore canyon depths, distinguishing individual fish from bottom structure is the difference between actionable information and a blurred return that requires guesswork. CHIRP reliably provides that separation across the range of boat speeds and water column conditions that consistently challenge conventional sonar, giving the angler a clearer picture to act on rather than an ambiguous one to interpret.



Network Sounder Modules We Recommend

Two modules cover the majority of offshore builds we specify, and which one is right for your boat comes down to the platform already at your helm.



Ready to start comparing modules?

View Network Sounders →



Garmin GSD 24 — Step-Up For Garmin-Equipped Boats

Best for: 25–40 ft boats already running compatible Garmin GPSMAP 4000–8000 series units that want more depth and clarity without a full electronics overhaul.

Selectable transmit power at 600 watts, 1 kilowatt, and 2 kilowatts covers the range from nearshore structure fishing to deep canyon work at depths down to 5,000 feet. It connects to the Garmin Marine Network without additional interface hardware, which simplifies both installation and ongoing system management. Compatibility is specific to GPSMAP® 4000, 5000, 6000, 7000, and 8000 series chartplotters.

View Garmin GSD 24 Network Sounder →



Raymarine CP570 — Tournament-Grade Offshore CHIRP

Best for: 30–70 ft Raymarine-equipped boats targeting deep canyons and pelagics where dual 2 kW CHIRP channels and 10,000 ft capability matter.

The flagship of the CP series connects via RayNet to compatible Raymarine multifunction displays. Two fully independent 2kW CHIRP channels deliver up to 4kW combined output spanning 25 to 250kHz, with depth capability to 10,000 feet. It automatically identifies connected transducers and adjusts sonar parameters accordingly, and supports low, medium, and high CHIRP frequency transducers in standard or wide-beam configurations.

View Raymarine CP570 CHIRP Sonar Module →

For anglers weighing their options across platforms, our Garmin vs Raymarine comparison breaks down how the two brands differ in practice.





What Offshore Anglers Should Know Before Buying

These variables determine whether a network sounder performs as expected, and they matter more than the module's rated specifications.

Transducer Compatibility: The module and transducer must be matched in power rating and frequency range. A mismatched transducer limits module performance regardless of how capable the hardware is rated. After all, the sonar return is only as good as the signal the transducer produces and the module is built to process.

Network Platform: Garmin GSD modules require Garmin displays, whereas Raymarine CP modules require Raymarine displays. Cross-brand mixing requires interface hardware that adds complexity and potential failure points to the installation. Confirming platform alignment before purchase avoids that problem entirely.

Transmit Power For Target Depth: Entry-level modules are not built for canyon fishing at 1,000 feet or beyond. Matching power output to the depths the boat targets is a prerequisite for getting useful returns, not an optional upgrade. Confirming that match before purchase prevents the most common performance gap we see in black box sonar builds.

Multi-Station Access: On boats with more than one helm position, confirming that the module shares sonar data across all stations before purchasing prevents a common post-installation gap. Namely, you can prevent the frustration of discovering that a second fishing station cannot access the sonar image without additional hardware.

If you are also evaluating radar as part of your offshore electronics build, our Best Boat Radar Systems 2026 Comparison covers the major brands and what separates them in real-world use.





DIY vs Professional Network Sounder Installation

Good DIY fit: Single-station installs on smaller boats where you are replacing an existing module and are comfortable with power wiring and clean transducer mounting.

Pro-install recommended: Thru-hull or fairing-block transducers, 40 ft+ boats, multi-station networks, or mixing old and new gear.

Most of the "mystery issues" we see offshore come from transducer placement, cabling, or network config, not the black box itself.

When you purchase equipment through Concord Marine Electronics, 10% of your online equipment purchase price is applied toward professional installation by our certified technicians.



Final Thoughts

A network sounder changes the sonar architecture of a serious fishing boat in ways that integrated sonar cannot match. But higher transmit power, dedicated processing, and multi-station data sharing only deliver on their potential when the module, transducer, and installation are matched correctly to the boat.

At Concord Marine Electronics, we design sonar systems from the transducer up, handling module selection, network integration, and commissioning. Contact Concord Marine Electronics to discuss the right network sounder setup for your boat.



Frequently Asked Questions About Network Sounders

What is a network sounder and how is it different from integrated sonar?

A network sounder is a dedicated black box sonar processor that mounts separately from the display, delivers higher transmit power, and shares sonar data across multiple chartplotters simultaneously. These are capabilities that integrated sonar cannot match at serious offshore depths.



How does a network sounder work with multiple displays onboard?

It processes the sonar return signal independently and simultaneously distributes the data to every compatible chartplotter on the boat's network, without requiring additional sonar hardware at each station.



What transmit power do I need for offshore canyon fishing?

At least 1 kilowatt of transmit power is the starting point for reliable signal returns at serious offshore depths. Deeper canyon fishing may require higher output depending on the target depth range.



Can I install a network sounder myself?

A single-station module swap on a smaller boat is a reasonable DIY project if you are comfortable with power wiring and clean transducer mounting. Thru-hull and fairing-block transducers, multi-station networks, and mixed old-and-new gear are worth handing to a certified installer.



Does the Garmin GSD 24 network sounder work with all Garmin chartplotters?

No. It is compatible with GPSMAP® 4000, 5000, 6000, 7000, and 8000 series chartplotters specifically. Compatibility should be confirmed against the boat's existing display before ordering.



Can I use a Raymarine sonar module with a Garmin chartplotter?

No. Raymarine CP modules require compatible Raymarine displays and do not integrate directly into the Garmin network without additional interface hardware.



Why does transducer selection matter as much as the sonar module itself?

The transducer determines the quality of every signal the module receives and processes. A mismatched transducer limits performance regardless of how capable the module is rated. Overall, both must be matched to the boat and target depth range.
