Garmin vs Raymarine Chartplotter

Brand loyalty does not determine the best marine chartplotter for a vessel. Platform integration with existing systems and real-world performance does. At Concord Marine Electronics, every chartplotter build starts with a vessel evaluation, then matches the platform to what that vessel actually requires.

What Garmin's GPSMAP And ECHOMAP Platforms Do Well

Garmin's chartplotter platform is built around deep sonar integration, a mature ecosystem of networked accessories, and a GPS architecture that performs well on vessels where position accuracy and fish finding are the primary priorities on the water.

Where Raymarine's Lighthouse Os Changes The Conversation

The Raymarine Axiom line runs on LightHouse OS, which offers a fluid, intuitive interface that handles radar overlay, autopilot integration, thermal camera control, and chart display from a single coherent operating environment. For glass bridge builds, it integrates with a breadth of peripheral hardware cleanly.

Why The Decision Starts With Your Network Architecture

Any Garmin chartplotter review or Raymarine Axiom review that skips the existing NMEA 2000 network, peripheral compatibility, and autopilot ecosystem of the specific vessel misses the point entirely. Network fit determines whether a chartplotter investment delivers its full capability.

How Each Platform Behaves In Multi-display Glass Bridge Setups

Garmin's multi-unit networking allows sonar, waypoints, and routes to be shared across compatible displays. Raymarine's Axiom 2 XL is built specifically for glass bridge environments with 6-core processing, gigabit networking, and HDMI input and output for centralized helm integration.

Why Processing Speed Matters More Than Screen Size Offshore

Chart redraw speed, sonar rendering, and radar overlay performance degrade under heavy network load on underpowered processors. Offshore, where conditions change fast, a chartplotter that hesitates is a chartplotter that creates risk. Processing power is not a luxury specification.

Garmin Chartplotter Lineup: GPSMAP 9213xsv, ECHOMAP Ultra 2, And 1243xsv

Garmin's lineup covers a wide range of vessel sizes and use cases. Each unit serves a specific operational role, and selecting the wrong one creates integration problems that only become visible after installation. We match Garmin units to vessel builds based on sonar requirements, network complexity, and helm layout.

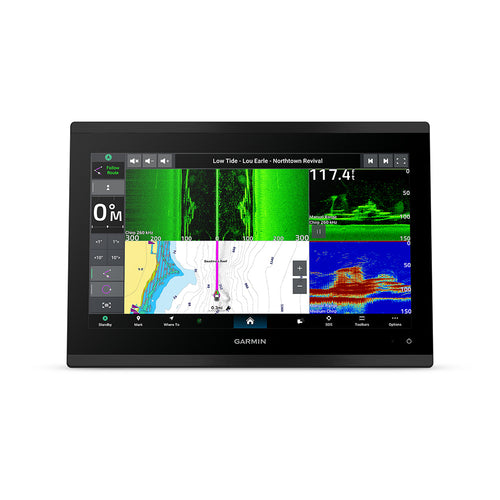

• Garmin GPSMAP 9213xsv Premium Chartplotter/Sonar Combo: A premium 12-inch glass bridge-capable unit with built-in sonar, Garmin Navionics+ mapping, and robust NMEA 2000 networking suited for serious offshore and cruising vessel builds requiring multi-display integration. The 9213xsv performs best when installed as part of a fully engineered Garmin ecosystem.

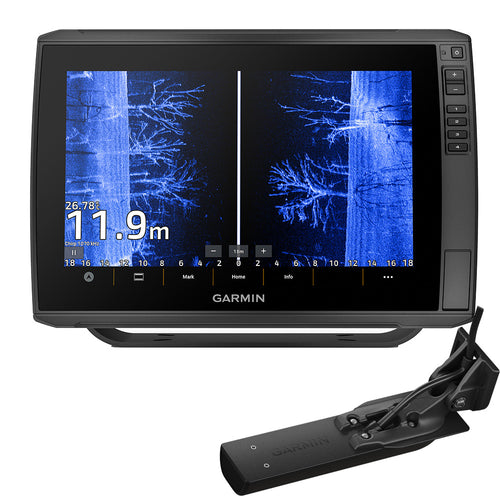

• Garmin ECHOMAP Ultra 2 122sv With GT56UHD-TM Transducer: A 12-inch sunlight-readable touchscreen combining UHD ClearVü and SideVü sonar, LiveScope support, multi-band GPS with 10 Hz updates, and wired and wireless networking for fishing-focused vessel builds.

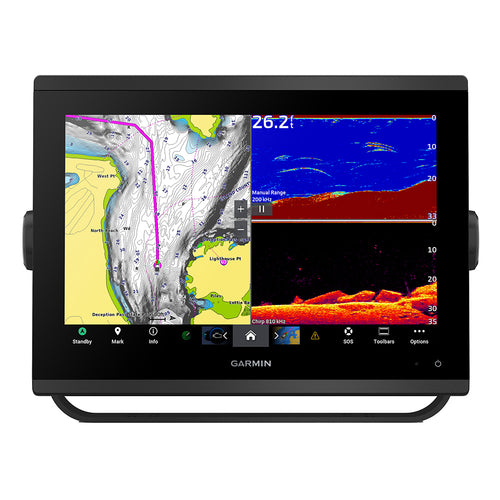

• Garmin GPSMAP 1243xsv Combo: A 12-inch chartplotter and fishfinder with built-in sonar, preloaded Garmin Navionics+ mapping, and NMEA 2000 compatibility suited for mid-to-large vessel navigation and sonar integration requirements. Captains researching Best Prices on Garmin Marine Electronics without compromising on installation quality will find the 1243xsv delivers capable performance at a more accessible price point.

Raymarine Axiom Lineup: Axiom 12, Axiom 7, And Axiom 2 XL

The Raymarine Axiom line is built around the LightHouse operating system. How well it performs depends as much on how the system is configured as on which display size is selected. We deploy Axiom units on builds where LightHouse OS integration, FLIR thermal compatibility, and glass bridge architecture are the primary requirements. Our Raymarine Chartplotter Guide covers the full Axiom family in depth. However, for most glass bridge builds, the decision narrows to three units.

Axiom 12: Quad-Core Performance And Chart Redraw Speed

The Raymarine Axiom 12 runs a quad-core processor with an IPS display rated up to 1,800 nits. HydroTough nano-coated glass repels water and maintains touch accuracy in wet conditions. Chart redraw, radar overlay, and RealVision 3D sonar all operate on that processing platform without the hesitation found in lighter-duty units.

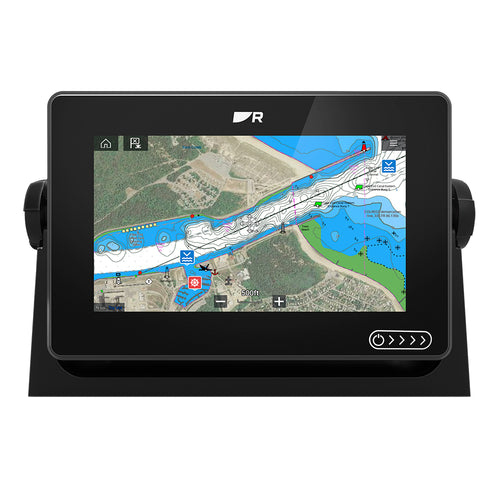

Axiom 7: Where Compact Display Fits A Larger Network

The Raymarine Axiom 7 is a 7-inch multifunction display built on the same LightHouse OS platform as larger Axiom units. It functions as a secondary display or station unit in multi-display networks, bringing consistent interface behavior and network compatibility to positions on the vessel where a full-size screen is not required.

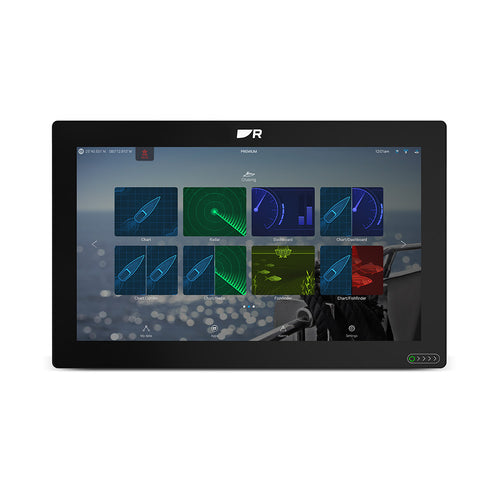

Axiom 2 XL: 6-core Processing And Glass Bridge Integration

The Axiom 2 XL is Raymarine's flagship glass bridge chartplotter, available in 16 to 24-inch displays with a 6-core processor, gigabit RayNet Ethernet, HDMI input and output, and three PoE network ports. It is designed specifically for enclosed helm stations and premium glass bridge builds on larger vessels.

Realvision 3d Vs Garmin's UHD Scanning Sonar Approach

Raymarine's RealVision 3D produces a gyro-stabilized, GPS-locked bathymetric model of the bottom and water column. Garmin's UHD ClearVü and SideVü deliver photo-like imaging of what is directly below and to the sides of the vessel. Both are capable sonar platforms. The right choice depends on the fishing style and vessel usage profile of the specific build.

Lighthouse Os Vs Garmin's Interface Under Real Operating Pressure

LightHouse OS is a unified operating environment that handles all connected peripherals from a single interface. Garmin's platform is deep in sonar ecosystem integration and ActiveCaptain connectivity. Neither is objectively superior. Both require proper configuration to perform as designed on the water.

The Garmin vs Raymarine chartplotter decision comes down to vessel fit, network architecture, and installation quality, not brand preference. Concord Marine Electronics installs both platforms and designs every chartplotter built around the vessel and how it is operated on the water. The best part? Equipment purchased through us qualifies for a 10% installation discount.

Garmin Vs Raymarine: Head-To-Head Where It Matters

Spec comparisons look clean on paper. Real differences show up on the water under load, in variable conditions, and inside complex onboard networks. We have installed both extensively, and the patterns are consistent across vessel types and build complexity.

Captains who have reviewed our post, What's Better Garmin or Raymarine, will arrive at the same conclusion: the winning platform is the one engineered around the vessel's existing systems, not the one with the most impressive spec sheet.

Sonar Architecture: How Each Brand Approaches Fish Finding

Garmin builds sonar integration deeply into its chartplotter hardware, offering CHIRP, ClearVü, SideVü, and LiveScope compatibility from the unit itself. Raymarine uses modular sonar black boxes that attach to the Axiom network, offering more flexibility in sonar type selection but requiring more careful installation planning.

Multi-display Networking: Where Each Platform Has An Edge

Garmin's wireless and wired networking allows units to share sonar, waypoints, and routes across compatible displays without complex configuration. Raymarine's Axiom 2 XL with gigabit RayNet Ethernet and multiple PoE ports scales more efficiently on larger vessels with demanding glass bridge builds.

Autopilot And Peripheral Integration On Each Ecosystem

Raymarine's Evolution autopilot integrates natively with the Axiom platform through LightHouse OS. Garmin's autopilot integration runs through its own ecosystem via NMEA 2000. Both work well when the full ecosystem is designed and installed as a complete system from the start.

Display Brightness And Sunlight Readability On The Water

Both Garmin and Raymarine Axiom displays are rated to 1,800 nits with IPS panels. Sunlight readability is comparable across both platforms in real-world conditions. Viewing angle, anti-glare coating, and mounting position influence perceived performance more than rated brightness differences between units.

Firmware, Long-term Support, And Investment Longevity

Both Garmin and Raymarine have demonstrated long-term firmware support for their chartplotter platforms. Garmin's ActiveCaptain ecosystem provides chart and software updates via mobile. Raymarine's LightHouse OS updates are delivered through the unit or the Raymarine app. Either platform, properly installed and maintained, supports reliable long-term operation on the water.

Why Installation Quality Decides Which Chartplotter Actually Wins

The Garmin vs Raymarine chartplotter debate becomes irrelevant if the installation is wrong. Most chartplotter performance complaints trace back to integration failures, not hardware limitations. We have corrected more installations than we have built from scratch, and the failure patterns are almost always the same.

How We Approach Chartplotter System Design

We begin every chartplotter build by mapping the vessel's existing electronics, network infrastructure, and autopilot system. The chartplotter is selected to integrate with what is already on the vessel, or the surrounding system is redesigned to support it correctly.

Why Transducer Placement Determines Sonar Performance

The best marine chartplotter with built-in sonar performs only as well as the transducer feeding it. We position transducers based on hull geometry, water flow patterns, and vessel speed profile. Incorrect placement produces noisy, unusable returns regardless of the chartplotter brand.

Our 10% Installation Discount And What It Includes

Equipment purchased through Concord Marine Electronics qualifies for a 10% installation discount applied toward professional installation by our certified technicians. Every chartplotter installation includes NMEA 2000 network design, peripheral integration, and full commissioning and testing on the water.

NMEA 2000 Network Planning: The Step Most Installers Skip

An NMEA 2000 network that is improperly terminated, overloaded, or missing critical backbone components produces intermittent failures across all connected devices. We design and verify every network before a chartplotter is powered on for the first time.

Commissioning, Testing, And Support After Installation

Every chartplotter system we install is tested on the water under operating load, with all connected devices active and all display functions verified. Post-installation support is part of how we work, not an additional service the captain has to request after something goes wrong.

How To Choose The Right Chartplotter For Your Vessel

Chartplotter selection done correctly starts with the vessel, not the product page. The right unit integrates with what is already on the vessel, scales to what the captain plans to add, and performs under the conditions the vessel actually operates in on the water. Our Marine Electronics Definitive Guide outlines the full scope of what a properly designed vessel network requires.

• Start With The Existing Electronics Ecosystem: A vessel with a Garmin autopilot, Garmin radar, and Garmin instruments integrates more cleanly around a Garmin chartplotter. A vessel built around Raymarine peripherals benefits from staying within the LightHouse OS ecosystem. Crossing platforms is possible but requires careful network planning before any unit is ordered.
• Match Screen Size To Helm Layout And Distance: A 12-inch display at arm's reach reads differently than a 12-inch display mounted at the back of a deep helm station. Viewing distance, helm geometry, and the number of split-screen functions the captain uses regularly all influence which screen size actually works on the water rather than just looking good in a showroom.
• Confirm Sonar Requirements: Garmin and Raymarine approach sonar integration differently. If the vessel requires specific sonar capabilities, including LiveScope, RealVision 3D, or black box sounder compatibility, those requirements need to drive the platform decision rather than being retrofitted around a unit selected for other reasons.
• Plan For Autopilot Integration From The Start: Autopilot integration is one of the most consequential compatibility considerations in any chartplotter build. We verify autopilot compatibility, heading sensor requirements, and drive unit communication protocols before a chartplotter platform is confirmed for a vessel, not after installation has begun.
