The Right Transom Mount Transducer For Bay Boats And Tenders

Compare traditional, CHIRP, and imaging transom transducers for Garmin, Raymarine, and more.

Shop transom mount transducers

Transom Mount Transducer Strengths And Limits

Transom units solve real problems for many boats, but they come with trade-offs every owner should understand first.

No Hull Drilling And Easy Service

A transom mount bolts to the back of the boat above the waterline, so the hull bottom stays untouched. That makes it a practical choice for trailered boats, cored hulls, charter and managed boats, and owners who want to avoid a haul-out. Because the transducer sits outside the hull, cleaning and replacement happen from the swim platform or the dock, and moving up to imaging later usually means swapping brackets and cables rather than cutting fiberglass.

Strong At Trolling Speeds, Limited At Higher Speeds

At low and moderate speeds, a well-placed transom unit performs very close to a thru hull model, which is why inshore anglers and slow-trolling setups get clean bottom tracking without hull work. As speed climbs, the transom sits in aerated water trailing off the hull, and readings can drop out, so offshore boats running 30 knots or more usually benefit from a thru hull design.

Signs Your Transducer Is Holding You Back

These symptoms usually point to a transducer that no longer matches the boat, the display, or the fishing.

• Fuzzy Bottom Readings: A blurred or doubled bottom often means an outdated element or a poor mounting angle.
• Lost Readings At Speed: Dropouts while planing point to aerated water around the face or a mount set too high.
• No Imaging Capability: If your display supports DownVü, ClearVü, or SideVü (Garmin's down and side imaging modes), a traditional-only transducer leaves those features unused.
• Outdated Connectors: Older pin configurations may require adapters that add failure points, so upgrade to a direct-connect model from our Marine Navigation and Instruments Transducers collection.

Choosing A Transom Mount Fish Finder Transducer

The right model depends on whether you need depth, fish detail, structure imaging, or all three together, and on the display that will drive it.

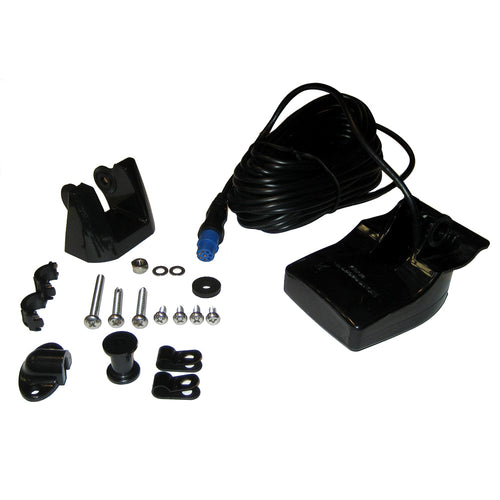

• If You Only Need Depth And Temperature: A traditional 50/200 kHz model, such as Garmin's Transom Mount Depth/Temp transducer (500 watts, rated to 1,500 feet), keeps the cost down, with adapter cable 010-11612-00 required for 6-pin Garmin sounders.
• If You Want CHIRP Fish Detail Without Imaging: A dedicated CHIRP transducer, which sweeps a band of frequencies with each pulse, separates fish from the bottom more cleanly than a traditional element.
• If You Want To See Structure Directly Below The Boat: A down imaging model adds near-photographic detail beneath the hull, and our DownVu vs. SideVu sonar guide explains how to read it.
• If You Want To Cover More Water Per Pass: A side imaging model scans structure to each side of the boat.

Whichever you choose, confirm your display's connector, supported sonar channels, and software version before ordering.

Recommended Transom Mount Transducer Kits By Fishing Style

Each kit works within its own brand's displays and sonar modules, so start with the display you run, then choose the tier that matches how you fish.

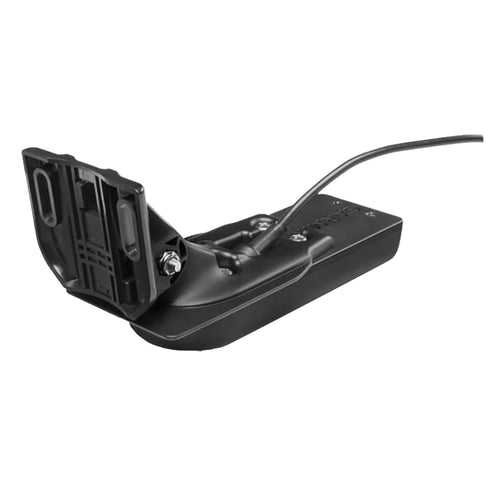

Good: Garmin GT20-TM DownVu Transom Transducer

Best for bay boats, small center consoles, and tenders that want traditional sonar plus down imaging on compatible Garmin displays.

• Traditional sonar at 500 watts (77/200 kHz) reaches 1,900 feet, while the 455 kHz DownVü element renders a near-photographic view of what is directly beneath the boat to 750 feet.
• Transom and trolling motor mounts are included, along with a built-in fast-response temperature sensor and a 20-foot cable with an 8-pin connector.
• It mounts on transom angles from 0° to 70°.

Add this kit to cart

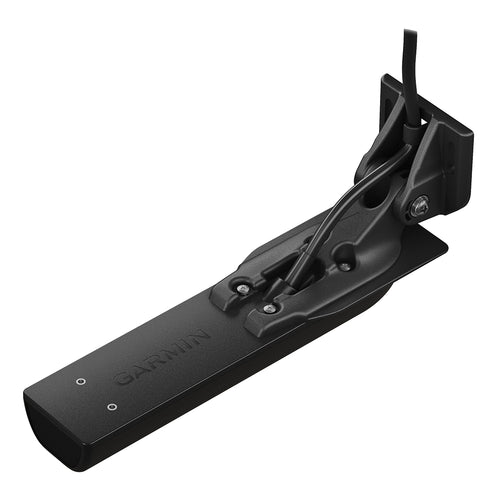

Better: Garmin GT36UHD-TM Side Imaging Transom Transducer

Best for anglers who want to scan structure to both sides and run a Garmin display that supports Ultra High-Definition scanning sonar.

• Ultra High-Definition SideVü at 455 kHz scans up to 500 feet on each side of the boat, which covers far more water per pass than a down-only view.
• Three scanning frequencies (455 kHz, 800 kHz, and 1 MHz) plus Ultra High-Definition ClearVü help it perform across a range of depths.
• Transom and trolling motor mounting hardware is included, along with a 25-foot cable, a 12-pin connector, and a built-in temperature sensor.
• Our Down and Side Imaging Transducer Kits collection groups compatible imaging packages if you want to compare.

Add this kit to cart

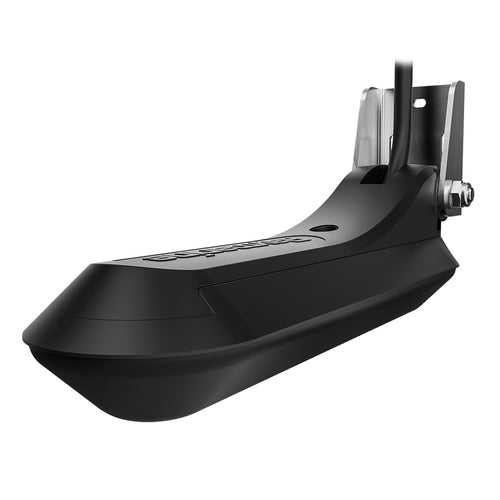

Best: Raymarine RVM-100 RealVision MAX Transom Transducer

Best for outboard-powered boats running Raymarine Axiom 2 Pro RVM or an RVM1600 sounder that want 3D, down, and side imaging in one unit.

• This all-in-one transducer combines DownVision, SideVision, high-frequency CHIRP fish targeting, and 3D sonar, with a built-in attitude and heading reference system (AHRS) that steadies the 3D picture against waves.
• A stainless steel bracket with an integrated kick-up, a hinge that lets the bracket swing up on impact, helps protect it from strikes with floating debris, rocks, or stumps.
• A built-in temperature sensor and an 8-meter cable come standard, and an optional jack-plate bracket suits bass boats, flats boats, and skiffs.

Add this kit to cart

CHIRP Transom Transducer Options (Without Imaging)

Our guide to CHIRP vs. Traditional Sonar explains the difference in practice.

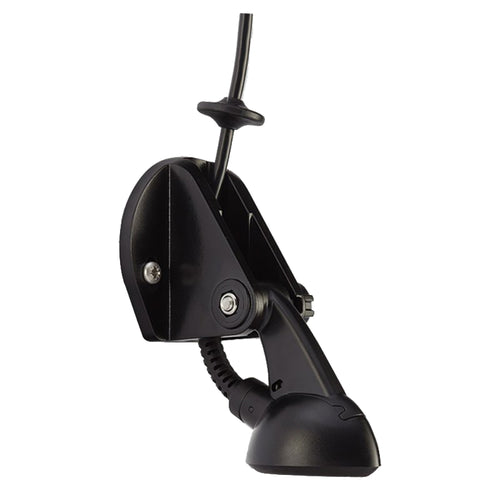

Raymarine CPT-S (high CHIRP)

Rated to about 900 feet with a built-in temperature sensor; requires a display running version 16 software or later.

Add this kit to cart

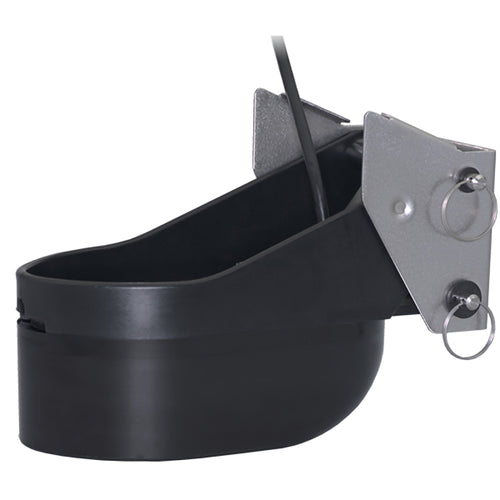

Furuno TM185HW (1kW CHIRP)

A 150 to 250 kHz CHIRP band in a urethane housing with a stainless bracket. Suited to deeper work; pair it with compatible Furuno sounders.

Add this kit to cart

Recommended Accessories For Transom Installs

Transom cable fittings and glands

Seal cable passthroughs and protect cored transoms from water intrusion.

Shop the Transducer Accessories collection

Mounting brackets and jack-plate mounts

Give more adjustment range and impact protection on jack plates and brackets.

Shop the Transducer Accessories collection

Extension cables and network adapters

Reach the helm without splices and tie into existing sonar networks.

Shop the Transducer Accessories collection

Transom Transducer Installation And Setup

A transom unit is simple to mount, but small errors in placement produce big errors on the screen, so here are the DIY install notes and warnings worth knowing.

Reasonable DIY:

• Solid, accessible transom and basic tools.
• You're replacing an existing transom transducer in a similar spot.
• You are comfortable drilling and sealing above the waterline and routing cable.

Call a pro when:

• Transom is cored and you're unsure how to seal it and protect the core.
• Dropouts persist after careful height and angle adjustments.
• Vessel is a larger yacht or tender where failed sonar is a safety or guest-experience risk.
• Space And Location: Choose a spot with solid, smooth water flow, clear of propeller wash and away from strakes (the raised ribs on the hull bottom), through-hull fittings, and trim tab hardware, since each creates turbulence.
• Height And Angle: The face should sit slightly below the hull bottom and run parallel to the water at planing attitude, since too high ventilates at speed and too low creates spray and drag, and small adjustments during sea trials often fix dropouts owners blame on the display.
• Cabling: Route the cable through a sealed transom fitting, secure it every 12 to 18 inches, keep it clear of steering gear, and seal every screw hole with marine sealant to protect cored transoms from water intrusion.
• Tools And Hardware: Expect to need a drill, marine sealant, and the right brackets and fittings, which our Transducer Accessories collection helps cover, and follow each transducer's installation instructions carefully to avoid damaging the boat.
• Estimated Time: A typical transom install is often a few hours at the dock, followed by a sea trial to confirm bottom tracking at idle, cruising, and planing speeds.

Prefer professional installation? South Florida customers receive a 10% installation credit on all shop purchases with Concord Marine Electronics at Safe Harbor Lauderdale Marine Center.
