DownVu vs. SideVu: Understanding Down Imaging vs. Side Imaging Sonar

Key Takeaways:

• Different Beams, Different Pictures: Down imaging looks directly beneath the boat while side imaging scans laterally to each side, which makes them complementary tools rather than interchangeable ones.
• Transducer Placement Is Everything: Both modes depend on a transducer mounted in clean, turbulence-free water flow. Image quality suffers if that placement is off, regardless of how capable the display is.
• Use Both Together: Running both modes in a complete sonar build gives anglers a more complete picture of structure, bottom composition, and fish position on the water.

This guide is written for DIY captains running roughly 25–60 ft center consoles and bay boats who want to read structure and cover more clearly without guessing what shows up on the screen.

Most anglers know that down imaging and side imaging show different things on the display. Fewer understand why the pictures look the way they do, what details each mode is capable of resolving, or when one mode gives a more useful read than the other. Getting that clarity changes how you interpret the screen and where you decide to fish.

At Concord Marine Electronics, we design and install complete sonar systems on vessels across a wide range of fishing applications. We know how each imaging mode performs in real conditions, and what it takes to get a usable picture out of both.

Running a 70 ft+ yacht or planning a full electronics refit? Talk to our yacht electronics team about professional sonar and network design.

This piece covers what down imaging vs. side imaging sonar does, how to read the screen correctly, how transducer selection affects the result, and how to match each mode to the way you fish.

Want to see down and side imaging kits we recommend?

View transducer kits that fit most 25–60 ft center consoles and bay boats.

Shop Down & Side Imaging Transducer Kits →

What Each Imaging Mode Does

Down imaging and side imaging rely on very specific beam geometries, which is why they produce such different pictures of the underwater environment.

How Down Imaging Reads The Water Column

Down imaging transmits a narrow, high-frequency beam directly beneath the boat and produces a detailed, near-photographic view of the water column and bottom below the hull. It tends to excel at showing bottom composition, structure directly under the boat, and fish suspended in the water column at depth.

How Side Imaging Scans Laterally From The Boat

Side imaging sends wide, fan-shaped beams to port and starboard at the same time, covering a broad swath of bottom on each side of the boat. It produces something closer to a top-down, aerial-style view of the bottom structure, cover, and fish-holding features that can extend a considerable distance from the hull.

Beam Angle, Coverage, And Return Quality Compared

Down imaging trades lateral coverage for depth detail and target definition directly beneath the boat. Meanwhile, side imaging trades some depth precision for wide lateral coverage, which reveals structure and cover that would otherwise take several passes to locate with a downward-looking beam alone.

Why Neither Mode Replaces Traditional CHIRP

Both imaging modes rely on high-frequency, narrow pulses optimized for image resolution rather than deep-water penetration. Traditional CHIRP sonar, running at lower frequencies, generally reaches greater depth and produces the fish arches and bottom discrimination that down and side imaging aren't designed to deliver. Our Marine Electronics Definitive Guide covers how all three sonar modes fit together in a complete fishing electronics build.

Reading The Screen Correctly

Knowing what a good return looks like on each mode changes how quickly an angler can identify productive water and act on it.

What Structure And Fish Look Like On Down Imaging

A hard bottom typically returns as a bright, high-contrast line, while a soft bottom appears as a thicker, lower-contrast return. Fish tend to show up as bright spots or short arches suspended above the bottom, and vertical structures like dock pilings or bridge columns usually appear as distinct vertical lines in the image.

How Side Imaging Reveals Cover And Suspended Fish

On side imaging, submerged timber tends to appear as a shadow line extending away from the object, opposite the transducer's position. Fish suspended over structure typically show up as bright spots against the darker background, and transitions from hard to soft bottom are usually visible as changes in return intensity across the image.

Garmin DownVu SideVu Explained

Simply put, Garmin DownVu and SideVu both use ultra-high-frequency beams, generally in the 455 kHz to 800 kHz range, to produce their image detail. Garmin builds both modes into a number of its chartplotter lines and compatible transducers, allowing both images to display simultaneously on a split screen without separate hardware. For a broader look at how Garmin's approach compares to another major platform, our dedicated Garmin vs. Raymarine Comparison covers the key differences.

Common Misinterpretations That Cost Anglers Fish

The most common misread on side imaging is mistaking a shadow for a fish. In particular, shadows sometimes extend away from the structure in a predictable direction based on the transducer's beam angle. Bright spots within or just ahead of a shadow are usually the actual target worth investigating.

Transducer Selection For Each Mode

Transducer choice shapes image quality for both modes. The wrong selection limits everything downstream of it, no matter how capable the display is.

• Best Transducer For Down Imaging: A high-frequency unit, typically 455 kHz or 800 kHz, matched to the boat's target depth range tends to perform best for down imaging. Deeper applications generally benefit from a dual-frequency unit that covers both imaging and CHIRP frequencies.
• Side Imaging Placement And Coverage Width: Side imaging transducers need to be mounted in clean water flow with the beam elements running parallel to the hull. Even a slightly off-axis mount can introduce distortion and narrow the effective scan width on one side.

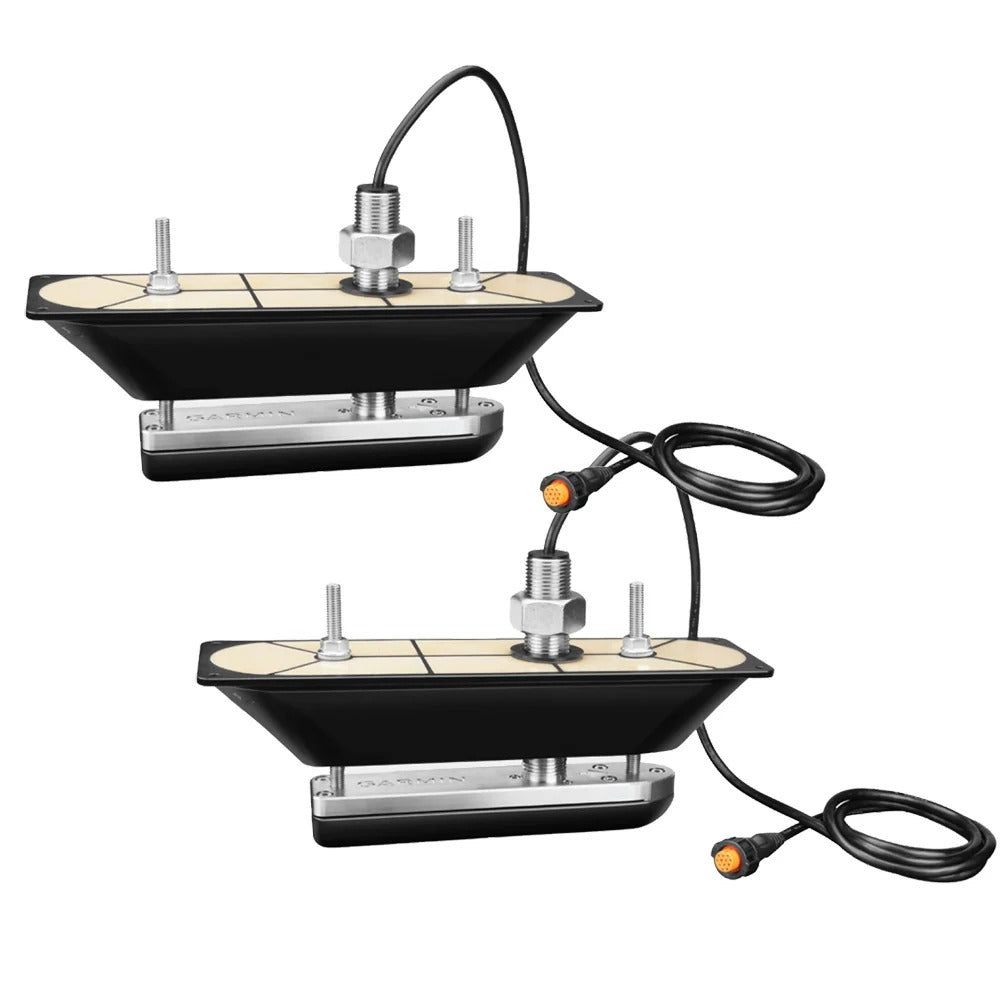

• DownVu SideVu Transducer Comparison: A DownVu SideVu transducer comparison more often than not favors thru-hull mounting for crisper returns at higher speeds, since it avoids the turbulence that transom-mount units tend to encounter behind the hull. Our Best Prices on Garmin Marine Electronics guide covers what to look for when building out a complete Garmin sonar system without overspending.
• Hull Type And Speed As Deciding Factors: Fiberglass hulls typically allow thru-hull installation that isn't possible on aluminum or composite hulls without specialized hardware. Higher-speed boats need transducers rated for the turbulence and ventilation that show up at running speeds above roughly 20 knots.

Want to see down and side imaging kits we recommend?

Shop Down & Side Imaging Transducer Kits →

Recommended Down & Side Imaging Transducer Kits for 25–60 ft Boats

Two kits cover the majority of DIY imaging builds we see, and which one fits comes down to the platform already at your helm.

Garmin GT56 Transducer Kit – DownVu & SideVu Imaging Best for: Garmin-equipped 20–40 ft center consoles and bay boats fishing lakes, inshore, and coastal structure.

• DownVu and SideVu imaging plus traditional CHIRP
• High-frequency coverage for detailed structure pictures
• Includes mounting hardware for common fiberglass hulls View Garmin GT56 Transducer Kit →

Garmin GT36 Transducer Kit – Imaging Upgrade for Garmin Systems Best for: 20–35 ft boats wanting to add or upgrade imaging on existing Garmin chartplotters.

• Dedicated down and side imaging channels
• Compatible with select Garmin displays
• Designed for clean returns at typical trolling speeds View Garmin GT36 Transducer Kit →

Recommended Add-Ons for Down & Side Imaging Sonar

NMEA 2000 Starter Kits Best for: boats adding imaging sonar into a growing network and needing clean data sharing between devices. View NMEA 2000 Kits →

Network Cables and Extension Leads Best for: routing imaging transducer signals cleanly to helm displays without noise or dropouts. View Network Accessories →

Mounting Brackets and Fairing Blocks Best for: thru-hull and transom-mount imaging transducers that need optimal angle and clean water flow. View Mounting Hardware →

Matching The Mode To How You Fish

Down imaging and side imaging serve specific purposes on the water, and the most productive setups tend to run both together.

Side Imaging Sonar For Fishing Structure And Cover

Side imaging sonar for fishing is most useful when searching for structure and cover in unfamiliar water. Running at 4 to 6 mph with side imaging active covers a wide swath of bottom quickly, which can help locate laydowns, channel edges, and hard-bottom transitions that would otherwise take hours to find.

When Down Imaging Gives The Better Picture

Once structure has been located with side imaging, down imaging provides a closer look at what's directly below the hull, how fish are positioned relative to that structure, and whether bottom composition supports the target species. It's the tool for confirming what side imaging revealed and deciding where to position the boat.

Running Both Modes In A Complete Sonar Build

The most effective sonar builds display traditional CHIRP, down imaging, and side imaging at the same time, either on a split screen or across multiple networked displays. Each mode contributes information the others can't, giving the angler a more complete read of the underwater environment without repeated repositioning. Understanding how these displays communicate with each other across the boat's network starts with our comprehensive NMEA 2000 Explained guide.

Installation And Network Variables That Matter

Transducer placement, cable quality, and network configuration all play a role in how cleanly each imaging mode performs on the final display. Our Best Boat Radar Systems 2026 Comparison provides useful context on building a complete, integrated onboard electronics system where sonar sits alongside radar and navigation.

DIY vs Professional Installation

Good DIY fit: smaller, single-station boats with basic transom-mount imaging transducers and short, accessible cable runs. Call a pro: 30 ft+ boats, thru-hull imaging transducers, multi-display networks, or anything tied into a larger NMEA 2000 backbone.

Most imaging problems on the water come from transducer placement, turbulence, or wiring issues, not the display itself.

Prefer professional installation? South Florida customers receive a 10% installation credit on all shop purchases with Concord Marine Electronics at Safe Harbor Lauderdale Marine Center. Learn about professional sonar installation →

Final Thoughts

Down imaging and side imaging aren't competing technologies. They're complementary tools that answer different questions about the same piece of water. Used together in a properly installed sonar system, they tend to give anglers more usable information per pass than either mode delivers on its own.

At Concord Marine Electronics, we design sonar systems starting from the transducer and working up, with our certified technicians handling mode selection, placement, network integration, and commissioning along the way. Contact Concord Marine Electronics to discuss the right down and side imaging setup for your boat.

Want to see down and side imaging kits we recommend?

View transducer kits that fit most 25–60 ft center consoles and bay boats.

Shop Down & Side Imaging Transducer Kits →

Frequently Asked Questions About Down Imaging vs. Side Imaging

What is the difference between down imaging vs. side imaging sonar?

Down imaging looks directly beneath the boat, while side imaging scans laterally to each side at the same time.

Which mode is better for finding fish near structure?

Side imaging tends to locate structure quickly across a wide area, while down imaging helps confirm fish position directly beneath the boat.

What is Garmin's DownVu and SideVu technology, and how does it work?

Both modes use ultra-high-frequency beams that integrate into compatible Garmin chartplotters and transducers to display side by side on a split screen.

What should anglers look for in a down imaging transducer on a fiberglass hull?

A high-frequency thru-hull transducer rated for the target depth range tends to deliver the cleanest down imaging returns at speed.

Can down imaging and side imaging run at the same time?

Generally, yes. Both modes can display simultaneously on a split screen with a compatible transducer and chartplotter, without additional hardware.

Does boat speed affect down imaging and side imaging quality?

Yes. Higher speeds introduce turbulence around the transducer that can degrade image quality in both modes without proper mounting.
