Garmin GPSMAP 8612xsv

The 8612xsv gives captains a full navigation and sonar suite in one unit, with clear charts, actionable sonar returns, and a network that talks to everything else at the helm without configuration headaches.

A 12-Inch Display That Holds Up When It Matters

Glare is not a minor inconvenience. Rather, it is a safety problem when a captain cannot read the screen in direct sunlight. The 8612xsv features a full HD in-plane switching touchscreen that remains readable in direct sunlight, including when wearing polarized sunglasses. Plus, multiple units can be flat-mounted edge-to-edge for a clean glass helm configuration.

On a 40 ft center console with an unshaded helm, that readability is the difference between reading your sonar on a July afternoon and shading the screen with your hand.

Built-In Sonar Capabilities Without A Black Box

Running a separate black box sonar module adds hardware, wiring complexity, and another point of failure to the system. The 8612xsv carries dual-channel 1 kW CHIRP traditional sonar for superior target separation as well as ClearVü and SideVü scanning sonars to see up to 1,000 feet below and around your boat at 260 kHz (requires a transducer, sold separately). That consolidation means fewer components to fail and a cleaner installation from the start.

Charts That Are Ready Before You Leave The Dock

The 8612xsv ships preloaded with Garmin Navionics+ coastal and inland charts for the U.S. and Canada. From there, Auto Guidance+ technology helps plot a path based on boat draft and preferred depth for trip planning purposes, minimizing pre-departure chart work and giving the captain a starting point before leaving the slip. Note that Auto Guidance+ is for planning purposes only and does not replace safe navigation operations.

A Network Backbone That Ties The Helm Together

A chartplotter that struggles to reliably share data with radar, autopilot, and instruments is an isolated screen, not a helm. The 8612xsv connects via NMEA 2000 and the Garmin Marine Network, linking radar, autopilot, cameras, AIS, and instruments across multiple displays. When that backbone is designed and installed correctly, every device communicates cleanly. When it is not, intermittent failures follow. Our NMEA 2000 Explained guide covers what a properly structured network backbone requires before any build begins.

How The GPSMAP 8612xsv Performs Under Pressure

Performance goes beyond the spec sheet. This is how the 8612xsv holds up when conditions demand more from your helm.

Processing Speed That Keeps Attention On The Water

A chartplotter that lags during fast maneuvers or busy conditions forces the captain to manage the screen rather than the boat. The premium-performance processor provides fast map drawing and smooth video distribution across networked displays. For captains running this as the best GPS fishfinder for center console and sport boat chartplotter applications, that processing margin is meaningful.

SmartMode For High-Stress Situations

Docking, anchoring, and fishing each require a different helm configuration. SmartMode presets provide one-touch access to those configurations, decreasing the number of steps between a change in conditions and the right screen layout. The result is less time managing the display and more time managing the boat.

Third-Party Control From One Screen

OneHelm extends control to compatible third-party devices, bringing together all their operations and capabilities, such as EmpirBus digital switching, into a single screen. This keeps the captain's eyes on one interface rather than switching between panels. For captains evaluating popular brands, our Garmin vs. Raymarine comparison breaks down the key differences.

LiveScope And Live Sonar Compatibility

The 8612xsv supports Garmin Live Sonar products with a compatible transducer, sold separately. When paired with the right transducer and a properly designed system, the difference in fish detection and situational awareness is immediate. Our Marine Electronics Definitive Guide covers how sonar fits into a complete electronics build.

Recommended Garmin GPSMAP Displays For 30–60 ft Boats

Every unit here is selected because it addresses a specific boat size, helm layout, and performance requirement. The 8612xsv is the one this page is about, but it isn't automatically the right answer for every dash.

Garmin GPSMAP 8612xsv — The 12-Inch Flagship Helm Display

Best for: 30–60 ft center consoles, express boats, and sportfish boats that want maximum resolution, the fastest processor in the lineup, and room to grow into a multi-display glass helm.

• 12-inch full HD IPS touchscreen, sunlight readable with polarized sunglasses
• Dual-channel 1 kW CHIRP plus ClearVü and SideVü, no black box required
• Preloaded Garmin Navionics+ charts with Auto Guidance+
• NMEA 2000 and Garmin Marine Network, HDMI input, LiveScope support
• Flat-mounts edge-to-edge for a glass helm

View Garmin GPSMAP 8612xsv →

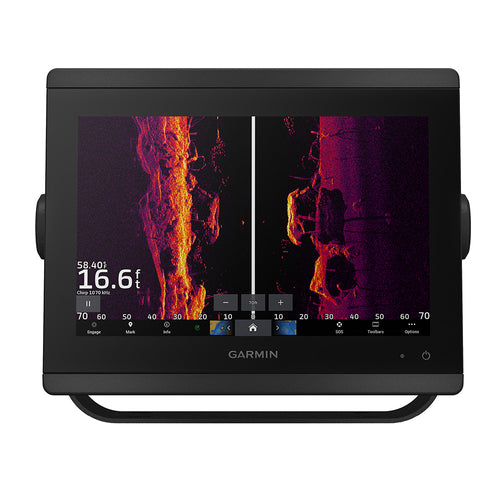

Garmin GPSMAP 8610xsv — Same Capability, Smaller Footprint

Best for: 30–45 ft boats where the dash won't take a 12-inch cutout but the captain doesn't want to give up 8600-series performance.

• 10-inch display, same sonar architecture and network capability as the 8612xsv
• Full 8600-series processing in a smaller cutout
• The right call when helm space, not budget, is the constraint

View Garmin GPSMAP 8610xsv →

Garmin GPSMAP 1243xsv — Slimline 12-Inch For Tighter Dashes

Best for: 30–50 ft boats retrofitting a 12-inch display into a dash that was never cut for one.

• Slimline 12-inch design with a smaller unit footprint than the 8612xsv
• Ultra High-Definition scanning sonar and edge-to-edge glass
• Enhanced engine connectivity, including select Yamaha systems
• Retrofits into a wider range of dash configurations

View Garmin GPSMAP 1243xsv →

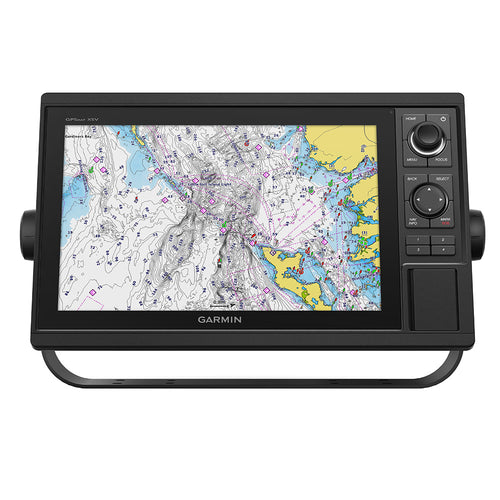

Garmin GPSMAP 1242xsv — Keypad Control Instead Of Touchscreen

Best for: Captains who want keyed operation, and boats that run in conditions where wet hands and spray make a touchscreen frustrating.

• 12-inch display with keypad interface and multifunction control knob
• Built-in CHIRP, ClearVü, and SideVü scanning sonars
• LiveScope support and full Garmin Marine Network compatibility

View Garmin GPSMAP 1242xsv →

Recommended Add-Ons For The GPSMAP 8612xsv

The display is one part of the system. These are the two things that most often determine whether it performs the way it's rated to.

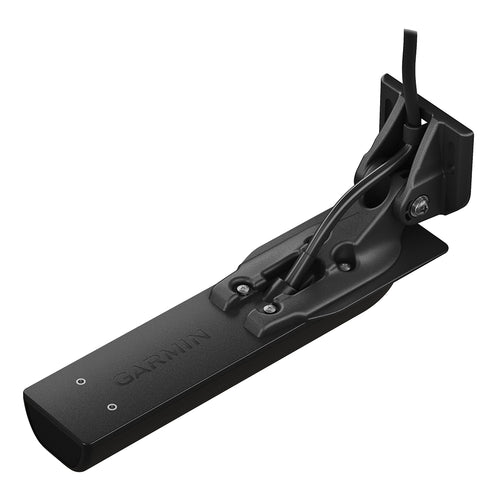

Transducer — The 8612xsv ships without one, and sonar does nothing until you add it. Match the transducer to your hull, the depths you fish, and the sonar modes you actually want. This is the single most consequential add-on decision on this page.

View transducer options →

NMEA 2000 Network Components — Backbone cable, tees, and terminators are where most "the display keeps dropping data" problems originate. If you're adding the 8612xsv to an existing network rather than building fresh, this is worth auditing before you order the display. View NMEA 2000 networking →

DIY vs Professional Installation

Good DIY fit: A single-station like-for-like swap where you're replacing an existing display of similar size, reusing the transducer and network, and are comfortable with power wiring and sealing the cutout.

Pro-install recommended: New transducer installs, especially thru-hull or pocket-mount. Boats over 40 ft. Multi-display glass helm builds. Integration with radar, autopilot, engine data, or digital switching. Any install where the network backbone is being extended rather than reused.

Worth being straight about this one: the 8612xsv is a networking display, and most of what makes it worth its price — multi-station data sharing, radar and autopilot integration, video distribution, engine data — falls on the pro-install side of that line. If you're doing a straight display swap into an existing Garmin network, it's a very approachable DIY job. If the 8612xsv is the first piece of a larger helm build, the install is where the money is either well spent or wasted.

A rushed install creates wiring faults, sensor conflicts, and network instability that surface weeks later. Our Marine Electronics Installation Expectations guide covers what a proper installation process looks like from start to finish.

Based in South Florida and prefer professional installation? Equipment purchased through this store qualifies for a 10% installation credit with Concord Marine Electronics at Safe Harbor Lauderdale Marine Center. For a breakdown of how pricing works in this industry, our Best Prices on Garmin Marine Electronics guide covers what captains need to know before buying.
