Best MFD For Sport Fishing Boats

When we evaluate a multifunction display for a sport fishing build, we are not reading spec sheets. We are asking if the display holds up in direct sun, whether the sonar resolves fish at depth, and how well the unit communicates reliably across the vessel network.

Screen Size And Sunlight Readability

A display that washes out in direct sunlight is not a tool we recommend. Sport fishing boats run in full sun for hours, and a screen that requires shade creates a real situational awareness gap. We look for high-brightness panels rated for direct sunlight with wide viewing angles across the helm, because brightness specification tends to determine real-world usability far more reliably than screen size alone.

MFD For Center Console Fishing Boat

An MFD for center console fishing boat installations carries demands that enclosed-helm builds do not face. Center consoles expose displays to spray, temperature swings, and vibration profiles that can accelerate failures in units not engineered for open-boat conditions. We design center console installations with helm ergonomics established before a single mount is specified, because placement decisions made correctly on paper prevent expensive corrections.

Sonar Integration And Target Separation Below The Surface

When a client tells us the sonar return is noisy, our first question is not about the display. It is about where the transducer is mounted. Placement in disturbed water flow produces noise-filled returns that make fish arches unreadable at speed, and we conduct hull-specific placement analysis before any transducer goes in the water because that single decision determines sonar performance more than any specification on the box.

Network Compatibility With The Rest Of Your Electronics

We design the NMEA 2000 network before we specify hardware. Onboard network bottlenecks caused by undersized backbones and incorrect terminations produce device dropouts and data failures that are blamed on individual units. The network is not an afterthought in our builds. It is the foundation every component depends on to perform reliably.

Recommended MFD Kits For 28–55 Ft Sport Fishing Boats

We stock verified MFD platforms across all three brands discussed below, each backed by professional installation and commissioning. The three options below reflect the paths most 28–55 ft sport fishing owners choose.

Good: Garmin GPSMAP 1242xsv Combo GPS/Fishfinder GN+

Best for: 28–40 ft center consoles and walkarounds where keypad control and built‑in sonar matter more than maximum screen size.

• Combo GPS/fishfinder with built-in Garmin CHIRP, ClearVü, and SideVü scanning sonar
• Panoptix and LiveScope compatible for owners who want to expand later
• Garmin Marine Network support shares sonar, radar, maps, and user data across multiple Garmin units
• Full NMEA 2000 and NMEA 0183 connectivity for autopilots, digital switching, and other sensors already on board

View Garmin GPSMAP 1242xsv sport fishing kit

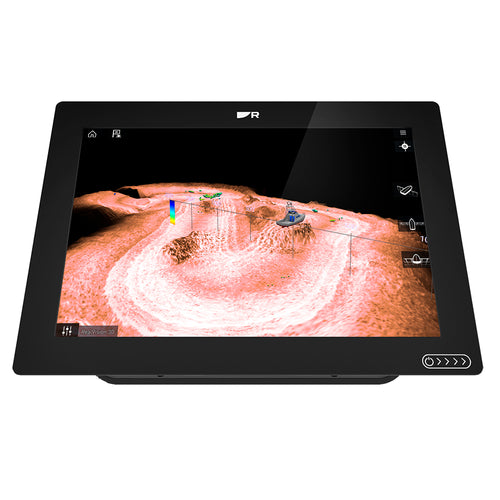

Better: Raymarine Axiom+ 12 RV Chartplotter/Fishfinder

Best for: 30–45 ft sport fishing boats that prioritize strong radar integration and high‑detail sonar imaging.

• Four-channel sonar suite supports RealVision 3D, CHIRP DownVision, SideVision, and 600‑watt 50/200 kHz sonar at the same time
• Wide Spectrum CHIRP sonar transmits across up to 60 different frequencies for more detailed imagery than single‑frequency systems
• Quantum CHIRP radar ready with full RayNet Ethernet and NMEA 2000 connectivity so the display scales with the rest of the helm
• Bright, high-resolution display with dedicated day/night color palettes for enhanced visibility in changing light

Our Raymarine Chartplotter Guide covers the full Axiom lineup if you want to compare configurations before deciding.

View Raymarine Axiom+ 12 RV sport fishing kit

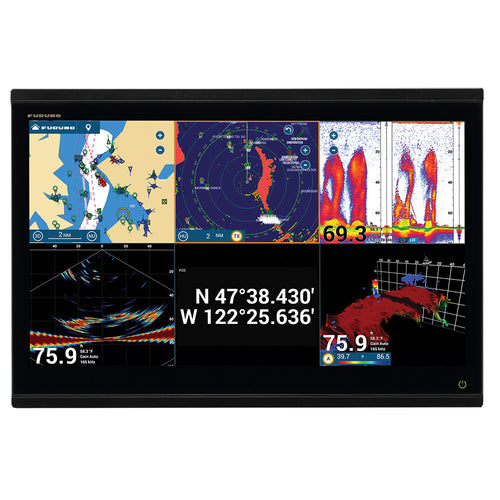

Best: Furuno NavNet TZtouch3 16" MFD With 1kW Dual-Channel CHIRP Sounder

Best for: 35–55 ft offshore fishing boats where reliability, dual‑channel sonar, and future expansion are top priorities.

• Built-in dual-channel 1 kW TruEcho CHIRP and an internal GPS receiver, ready for offshore fishing right out of the box
• Connects with Furuno's NXT solid-state Doppler radars for vessels where radar and sonar performance need to work as one system
• Supports autopilot, AIS, and multi-beam sonar on the same NavNet TZtouch3 network, keeping a growing system on a single backbone

Our Best Boat Radar Systems Comparison covers how that pairing fits into a complete build.

View Furuno NavNet TZtouch3 sport fishing kit

Recommended Add‑Ons For Sport Fishing MFD Systems

To get full value from any of the MFDs above, we typically pair them with:

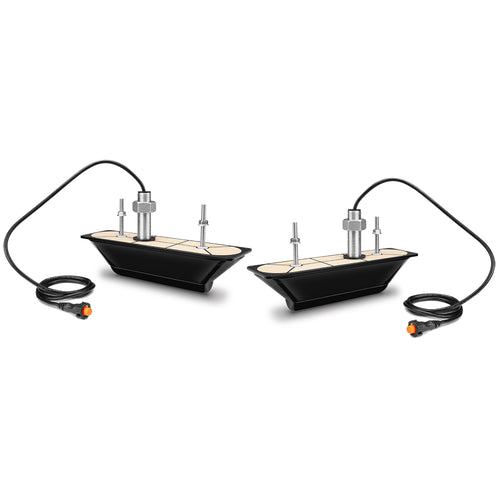

• CHIRP transducers (through‑hull and transom‑mount) — Best for: matching the sonar engine in your MFD and keeping clean water flow at speed. View CHIRP transducers
• NMEA 2000 starter kits and backbone components — Best for: building a clean, expandable network instead of one‑off cabling. View NMEA 2000 network kits
• Radar domes and open arrays — Best for: boats that run early, late, or in changing offshore weather and need target detection overlaid on the MFD chart. View radar systems

The Installation Decisions We Make Before Any Display Goes On The Boat

Most sport fishing MFD performance problems stem from three causes: wrong unit selection for the actual use case, improper transducer placement and cabling, and poorly designed onboard networks. We address all three before a single cable is pulled.

Transducer Placement And Why It Changes Everything

We conduct hull-specific placement analysis before any transducer goes in the water. A transducer mounted behind a strake or in a disturbed flow zone produces noise-filled returns that make fish arches unreadable at speed, and correcting that error after commissioning generally costs far more than getting it right from day one.

Offshore Fishing GPS Display And Network Design

When we commission an offshore fishing GPS display installation, the build is not finished until every networked device has been tested under operational load on the water. Speed at the display means nothing if the onboard network bottlenecks performance when the vessel is running hard. Our guide on Marine Electronics Installation covers what professional installation involves in more detail.

NMEA 2000 Backbone And Multi-Device Communication

We build every NMEA 2000 backbone as a system specification before selecting hardware. A backbone built without correct termination resistors, or with too many devices on a single drop, tends to produce intermittent failures that are expensive to correct.

Why Professional Installation Protects The Investment

When a client calls us because their MFD is underperforming, the system is almost never the real problem. The installation is. Shortcuts in cable routing, network design, and commissioning produce recurring failures that look like hardware problems but are consistently installation problems we are called in to correct.

Sport Fishing Electronics Package

When we design a sport fishing electronics package, we address every system the helm operator depends on rather than just the display. These are the components we typically specify for a complete offshore fishing build:

• Multifunction Display: We select the display based on sonar architecture, network compatibility, and helm ergonomics, not brand familiarity.
• CHIRP Transducer: We match sonar hardware to the MFD engine and position it for clean water flow at speed, because sonar performance is earned at placement.
• Radar System: We integrate target detection and weather awareness as an MFD overlay for predictable performance in variable offshore conditions.
• VHF Radio With DSC: We install emergency communication hardware that transmits the vessel's GPS position automatically in a distress situation.
• AIS Transponder: We feed real-time vessel traffic data directly to the MFD chart display on the water.
• NMEA 2000 Network: We design, terminate, and commission the backbone correctly before the vessel leaves the dock.

Our resource on the Best Marine Electronics Package for a New Boat Build walks through this full system approach in more detail if you're planning a build from scratch rather than upgrading a single display.

DIY Install Notes And Warnings

Here are a few things worth knowing before deciding to install a sport fishing MFD system yourself:

• Space: Confirm dash or helm panel depth allows room for NMEA 2000, RayNet, or Ethernet connectors behind the display, not just enough space for the faceplate.
• Location: Mount the display where sunlight and spray exposure are expected, but keep connectors protected from standing water and away from bilge areas.
• Cabling: Transducer and network cable runs should stay clear of other wiring to avoid interference, and thru-hull transducer runs need careful sealing to prevent leaks.
• Tools: Expect to need a hole saw matched to the transducer or mounting template, crimping tools for waterproof connectors, and a multimeter to confirm NMEA 2000 power and termination before commissioning.
• Estimated Time: A single MFD swap using an existing mounting footprint can often be done in a few hours. A thru-hull transducer install or a new NMEA 2000 backbone is typically a multi-day project.

Call a pro instead if the install involves a thru-hull transducer penetration below the waterline, if you're integrating multiple brands onto one network, or if the vessel is 80 ft or larger with crew or charter guests aboard. Prefer professional installation? South Florida customers receive a 10% installation credit on all shop purchases with Concord Marine Electronics at Safe Harbor Lauderdale Marine Center.
