The Right Solid-State Radar For Coastal And Offshore Boats

Solid-state radar replaces the magnetron transmitter with a solid-state amplifier, and that hardware change produces performance differences that matter from the moment the system powers on.

How Solid-State Replaces The Magnetron Tube

A magnetron transmitter requires a high-voltage tube that warms up before transmitting, degrades over time, and draws significant power from the vessel's electrical system. In contrast, a solid-state transmitter uses semiconductor amplifiers that start instantly and draw a fraction of the power at comparable range ratings.

Instant-On Operation And Why It Matters

Solid-state Doppler radar for boats powers on and transmits immediately with no warm-up period. In situations where conditions change quickly near an inlet or in a squall, having operational radar from the moment it switches on can meaningfully lower risk on the water.

Power Draw, Longevity, And Maintenance Differences

Solid-state transmitters generally draw less power than magnetron units at comparable range ratings, which can reduce generator runtime demands and battery load. They also eliminate the tube replacement cycle that magnetron radars require, which tends to lower long-term maintenance costs over the life of the system.

Where Solid-State Doppler Radar For Boats Pulls Ahead

Solid-state units tend to resolve near-field targets that magnetron units miss due to transmitter recovery time limitations, which is where the performance gap shows up most clearly in coastal conditions. Our Best Marine Radar for Coastal Navigation guide covers solid-state performance across the environments where close-range detection matters most.

Doppler Technology At The Helm

Furuno NXT solid-state radar adds Doppler frequency-shift detection to the radar picture, turning the display from a passive contact map into an active threat-assessment tool.

How Doppler Detects Target Motion

Doppler radar measures the frequency shift in the returning signal caused by target motion relative to the vessel. The radar processor translates that shift into directional motion data that appears on the display in real time, without requiring manual target acquisition.

Target Analyzer Color Coding Explained

Target Analyzer color-codes every radar return based on Doppler motion data. In particular, red targets are closing, while green targets are stationary or opening. That instant visual classification cuts down threat assessment time and can meaningfully improve collision avoidance decisions at the helm.

Fast Target Tracking In Heavy Traffic

Fast Target Tracking acquires a target's course and speed vector within seconds and displays it as a projected track line on the radar screen. In congested inlets and offshore shipping lanes, that information can reach the captain in time for a controlled course change rather than an emergency response.

Furuno DRS2DNXT Review: Performance And Range

The Furuno DRS2DNXT review picture is strong across the metrics that matter for coastal and offshore work. It delivers 25 watts of solid-state output, a 48 nautical mile maximum range, Target Analyzer color-coded threat detection, RezBoost beam sharpening, and Fast Target Tracking in a 19-inch dome format that connects directly to NavNet TZtouch displays. For a broader look at where Furuno radar sits in the wider market, our Garmin vs. Raymarine Comparison provides useful context against two other big players.

Want to see solid-state radar kits we recommend?

Shop Solid-State Radar Kits for Coastal & Offshore Boats →

Choosing The Right Solid-State Radar

The decisions surrounding whether to go with a dome or an open array, or whether to choose 25 watts or a higher output, depend on how and where your vessel operates on the water.

Best Solid-State Radar For Offshore Anglers

The right solid-state radar for offshore anglers generally comes down to balancing Bird Mode capability, bearing resolution, and Doppler threat assessment against the vessel's typical operating range and mounting configuration. Bird Mode adjusts gain and sea clutter filtering automatically to help detect flocks of diving birds that mark bait schools on the surface, which functions as a direct fishfinding tool built into the radar rather than an incidental feature. Our Best Boat Radar Systems 2026 Comparison covers the broader solid-state radar market for anglers in more detail.

Bird Mode, Rain Mode, And Fishing Features

Furuno NXT radar often includes Bird Mode and Rain Mode presets that optimize the radar picture for each detection task without manual gain adjustment. Captains moving between navigation and fishfinding on the same trip can switch modes without interrupting helm operations.

Furuno Doppler Radar Comparison Across The NXT Lineup

A Furuno Doppler radar comparison across the NXT lineup shows increasing antenna size, output power, and range moving from the DRS2DNXT dome through the DRS6ANXT, DRS12ANXT, and DRS25ANXT open-array options. Dome units suit space-limited mounting positions, while open-array units generally deliver higher bearing resolution for vessels operating offshore at extended range.

Connecting To NavNet And NMEA 2000 Networks

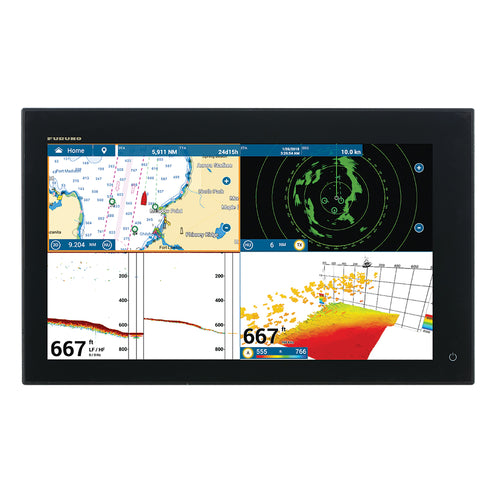

Furuno NXT radar units connect to NavNet TZtouch displays via Ethernet, sharing data across every networked display without additional interface hardware. Our NMEA 2000 Explained guide covers the backbone fundamentals that underpin every Furuno network build.

Recommended Solid-State Radar Kits By Boat And Operating Range

We carry a verified range of Furuno NXT solid-state radar units, each professionally installed and commissioned by our certified technicians. The three options below cover the most common paths, from a first step into solid-state for coastal and nearshore work to a full open-array setup for offshore range.

Good: Furuno DRS2DNXT For A First Step Into Solid State Best for: coastal cruisers and nearshore anglers upgrading from a magnetron dome on 25–40 ft boats.

• A 19-inch dome delivers 25 watts of output and 48 nautical miles of range, enough for most coastal and nearshore operating profiles.
• Target Analyzer and Fast Target Tracking bring Doppler-based threat detection to a compact, easy-to-mount package.
• Connects directly to NavNet TZtouch, TZtouch2, and TZtouch3 displays without additional interface hardware. Add this Furuno DRS2DNXT kit to cart →

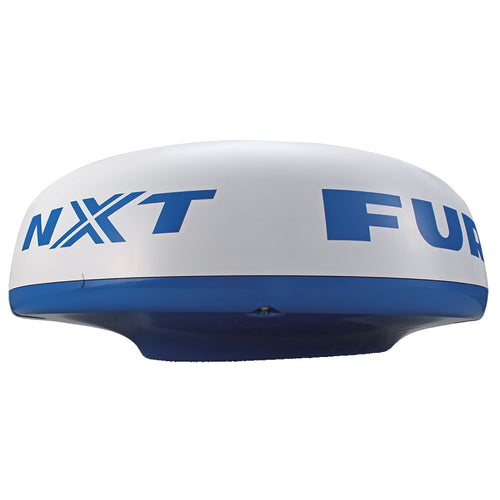

Better: Furuno DRS4DNXT For A Simple Retrofit Upgrade Best for: owners who want Bird Mode and a straightforward retrofit on 25–45 ft boats without opening an existing radome.

• This compact 24-inch radome packs open-array-level performance into a dome format that suits space-limited mounts.
• Bird Mode and Fast Target Tracking come standard, useful for anglers who split time between navigation and fishfinding.
• A smart-connector cable is designed for retrofitting existing DRS cable runs, which can simplify the swap for boats replacing an older radar. Add this Furuno DRS4DNXT kit to cart →

Best: Furuno DRS6ANXT With 6' Open Array For Offshore Range Best for: offshore and blue-water boats 35–60 ft that need extended range and sharper bearing resolution.

• A 6-foot open array delivers 72 nautical miles of range with a 1.2-degree beam width, considerably tighter than the dome options above.
• Full Target Analyzer, RezBoost, Bird Mode, and Target Tracking carry over from the dome lineup, scaled to open-array performance.
• Includes a pedestal and a 15-meter cable, simplifying installation planning compared to sourcing components separately. Add this Furuno DRS6ANXT 6' open-array kit to cart →

Recommended Add-Ons for Solid-State Radar Systems

Radar Mounts and Towers Best for: getting domes and open arrays above head height with a clear 360-degree sweep on hardtops, arches, and masts. View Radar Mounts & Towers →

NMEA 2000 & Ethernet Network Kits Best for: tying radar into a clean backbone so every display sees the same radar picture. View Network & NMEA 2000 Kits →

Power & Surge Protection Hardware Best for: protecting solid-state radar electronics from voltage spikes and unstable power. View Power & Protection Accessories →

DIY vs Professional Installation

Good DIY fit: swapping a dome radar for another dome on the same mast or hardtop mount, using existing cable runs, on a 25–40 ft boat with safe access. Call a pro: any install involving an open-array pedestal, new mast or arch work, complex NavNet integration across multiple stations, or larger/crewed vessels.

Most long-term radar issues come from mounting, cable routing, and network configuration, not the solid-state hardware itself.

• Space: Open-array units need enough mast, hardtop, or arch clearance for the array to rotate freely without striking antennas, outriggers, or rigging.
• Location: Radar needs a mounting position with a clear 360-degree sweep, positioned above head height and clear of obstructions that could create blind spots or false returns.
• Cabling: Radar cable runs should stay clear of bilge water and other electronics, and dome units generally have simpler cable requirements than open-array pedestals.
• Tools: Expect to need a torque wrench for mast or pedestal mounting hardware, proper crimping tools for waterproof connectors, and a multimeter to confirm power and network connections before commissioning.
• Estimated time: A dome radar swap can often be done in a few hours. Meanwhile, an open-array pedestal install, especially one requiring new mast or arch work, is typically a multi-day project.

Call a pro instead if the install involves working at height on a mast or tower, if the array needs to be balanced or leveled precisely for accurate bearing data, or if the vessel is 80 ft or larger with crew or charter guests aboard. Our Marine Electronics Installation Expectations guide covers what a professional install looks like from start to finish, if you want a clearer picture before deciding.

Prefer professional installation? South Florida customers receive a 10% installation credit on all shop purchases with Concord Marine Electronics at Safe Harbor Lauderdale Marine Center. Learn about professional radar installation → Call us for details at +1 954 779 1100.
