The Right Raymarine Axiom+ 12 Setup For 25 To 35-Foot Boats

The Axiom+ 12 brings meaningful hardware upgrades over previous Axiom generations that translate directly into better real-world helm performance.

Quad-Core Processing And IPS Display Performance

The Raymarine Axiom+ 12 runs a quad-core processor delivering faster chart redraw and smoother radar overlay than the original Axiom. The IPS display is 25 percent brighter than previous generations, with twice the resolution, producing a readable screen in direct sunlight without shading or speed adjustments.

LightHouse 3 And Daily Helm Operation

The LightHouse 3 operating system ties every connected Raymarine device into a consistent interface across all display sizes, extending capability over the service life of the display. For owners investing in a complete Raymarine build, that ongoing update path matters over the long term.

HydroTough Coating And All-Weather Reliability

HydroTough nano-coating repels water from the touchscreen surface, helping to maintain accurate touch response and display clarity in spray, rain, and open-cockpit conditions. For open-helm vessels operating offshore or in exposed coastal waters, this is close to a baseline operational requirement.

RayNet And NMEA 2000 Connectivity

The Axiom+ 12 connects to radar, sonar modules, autopilot, and instruments through RayNet Ethernet and NMEA 2000, sharing data across all networked stations at the same time. Our NMEA 2000 Explained guide covers the backbone fundamentals that apply to every Raymarine network build.

The Axiom+ 12 As A Chartplotter Fishfinder

The RV variant transforms the display from a navigation-focused MFD into a complete chartplotter fishfinder with a built-in four-channel sonar suite.

Raymarine Axiom Chartplotter Fishfinder In The RV Variant

The Raymarine Axiom chartplotter fishfinder RV variant includes RealVision 3D, DownVision, SideVision, and CHIRP sonar built directly into the display. It shares sonar data across networked displays and connects to a compatible RealVision 3D transducer, sold separately.

RealVision 3D Sonar Below The Hull

RealVision 3D combines DownVision, SideVision, and traditional CHIRP into a three-dimensional picture of the water column and bottom around the vessel. For owners who are fishing complex structure, that three-dimensional view can reveal spatial relationships between fish, bait, and bottom features that two-dimensional sonar generally can't show.

Raymarine Axiom 12 CHIRP Sonar And Wide Spectrum Coverage

Raymarine Axiom 12 CHIRP sonar in the RV variant operates across a wide frequency spectrum, delivering target separation and bottom discrimination that single-frequency sonar typically can't produce as reliably at coastal depths. It suits the depth profile of most 25 to 35-foot vessel fishing applications without needing an external black box module.

Connecting To External Sonar Modules For Expanded Performance

For offshore depths beyond what built-in sonar handles, the Axiom+ 12 connects to Raymarine CP series sonar modules via SeaTalk HS for higher power output and deeper water capability. That upgrade path keeps the initial investment lower while leaving room to expand as fishing requirements evolve. Our Garmin vs. Raymarine Comparison covers how this platform stacks up against Garmin equivalents if you're still weighing brands.

Want to see Raymarine Axiom+ 12 kits we recommend?

Shop Raymarine Axiom+ 12 Kits for 25–35 ft Boats →

Is The Axiom+ 12 Right For Your Vessel?

Vessel size, helm layout, and build intentions all shape whether the Axiom+ 12 is the right display before any purchase is made. Overall, the best MFD for a 25 to 35-foot boat typically benefits from a 12-inch display with full system integration and sonar capability in a format that fits mid-size helm layouts without dominating the panel. On the Raymarine Axiom 12 review front, quad-core processing, up to 1,800-nit brightness, and HydroTough coating make the picture dependably strong in open-cockpit and coastal conditions where lesser displays tend to struggle.

For radar, the Axiom+ 12 is Quantum CHIRP radar ready with RayNet connectivity, and our Raymarine Radar Guide covers the full range of compatible options if you're planning a radar addition alongside the display. On the upgrade path side, the Axiom+ 12 shares the same mounting footprint as the original Axiom 12, which generally allows for a straightforward retrofit installation without cutting a new dash opening.

Recommended Raymarine Axiom+ 12 Kits By Boat And Fishing Style

We stock verified Axiom+ 12 configurations and compatible accessories, each backed by professional installation. The three builds below cover the most common paths, from a navigation-focused display to a fully expanded sonar system for deeper water.

Good: Raymarine Axiom+ 12 MFD Chartplotter Best for: owners who want a top-tier navigation display on a 25–35 ft boat and plan to add sonar separately or don't need built-in fishfinding.

• Quad-core processing with a 12-inch IPS display delivers up to 1,800 nits of brightness and twice the resolution of traditional displays.
• HydroTough nano-coating and a next-generation 10 Hz GPS/GNSS receiver with 4x increased sensitivity give reliable performance and accurate positioning.
• Quantum CHIRP radar ready with full RayNet Ethernet and NMEA 2000 connectivity, so the display scales as the rest of the helm grows.
• Our Raymarine Chartplotter Guide: Axiom Series Comparison breaks down how this configuration compares to the rest of the Axiom lineup. Add this kit to cart →

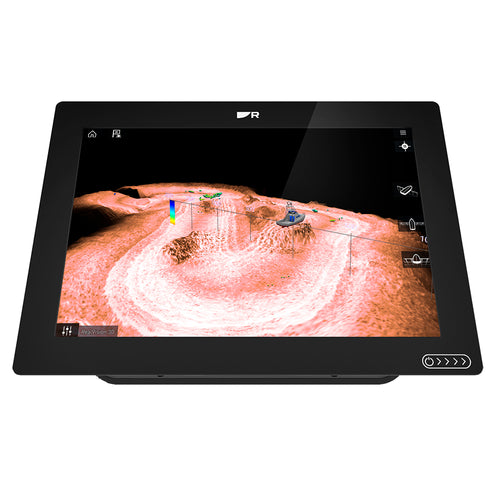

Better: Raymarine Axiom+ 12 RV Chartplotter/Fishfinder Best for: anglers who want dedicated built-in sonar on a 25–35 ft boat without adding a separate black box module.

• Four-channel sonar suite supports RealVision 3D, CHIRP DownVision, SideVision, and 600-watt 50/200 kHz sonar simultaneously.
• Wide-spectrum CHIRP transmits across 60 different frequencies for more detailed sonar imagery than single-frequency systems.
• Covers most coastal and nearshore fishing depths without requiring an external sonar module, keeping the initial build simpler. Add this kit to cart →

Best: Axiom+ 12 RV + Raymarine CP370 Digital Sonar Module Best for: owners who fish depths beyond what the built-in RV sonar suite is designed to cover.

• The CP370 adds dedicated black box sonar processing rated to track the bottom down to 5,000 feet, extending well past typical coastal depth profiles.
• ClearPulse digital signal processing manages sonar settings automatically in changing conditions.
• The CP370 shares sonar data across all networked Axiom displays, so a second station sees the same picture without duplicating hardware.
• We recommend pairing this with an Axiom+ 12 RV that includes LightHouse North America charts preloaded to simplify setup. Add this kit to cart →

Recommended Add-Ons for Raymarine Axiom+ 12 Builds

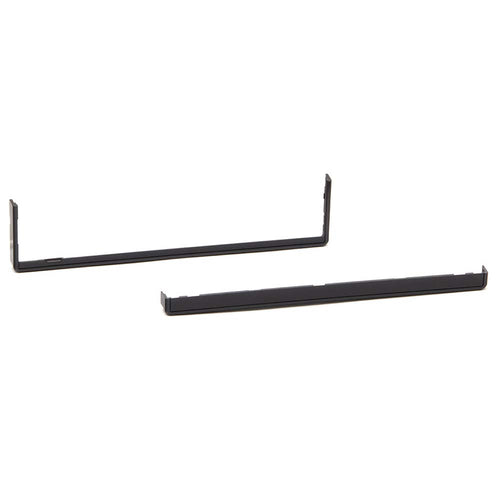

Trim Kit for Axiom Pro 12/eS12 Best for: owners who want a clean, flush-mounted finish around the Axiom+ 12 bezel on a 25–35 ft helm. View Trim Kit for Axiom Pro 12/eS12 →

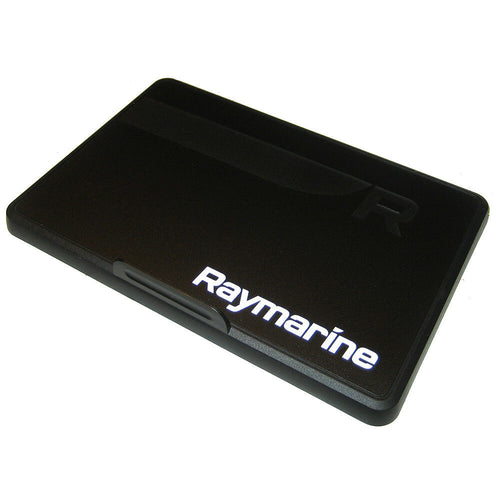

Suncover for Axiom 12 Best for: protecting the Axiom+ 12 screen from UV exposure and salt spray while the boat is docked or in storage. View Suncover for Axiom 12 →

DIY vs Professional Installation

Good DIY fit: straightforward Axiom+ 12 swap on a 25–35 ft boat using the same mounting footprint, with simple RayNet and NMEA 2000 connections and existing transducer wiring. Call a pro: any install involving a new dash cutout, new transducer runs, integration with radar or autopilot on a multi-device network, or larger/crewed vessels.

Most long-term issues come from mounting, cabling, and backbone configuration, not the Axiom+ hardware itself.

• Space: The Axiom+ 12 uses a standard mounting footprint, but confirm dash depth allows room for the power/data cable and RayNet connections behind the panel.
• Location: Position the display where direct sunlight and spray exposure are expected, since HydroTough coating and IPS brightness are built for exactly that environment, but mounting still needs to protect connectors from standing water.
• Cabling: RayNet and NMEA 2000 runs should stay clear of bilge areas and other wiring to avoid interference and moisture damage over time.
• Tools: Expect to need a jigsaw or hole saw matched to the mounting template, a crimping tool for waterproof connectors, and a multimeter to confirm NMEA 2000 power before commissioning.
• Estimated Time: A straightforward MFD swap using the same mounting footprint can often be done in a few hours. However, adding a CP370 sonar module and running new transducer cable is typically a longer, multi-step project.

Call a pro instead if the install involves a new dash cutout rather than a retrofit, if you're integrating radar or autopilot into an existing multi-device network, or if the vessel is 80 ft or larger with crew or charter guests aboard. If autopilot is part of the build, our Best Raymarine Autopilot Systems Ranked guide is a useful starting point before deciding how much of the install to take on yourself.

Prefer professional installation? South Florida customers receive a 10% installation credit on all shop purchases with Concord Marine Electronics at Safe Harbor Lauderdale Marine Center. Learn about professional Raymarine installation → Call us for details at +1 954 779 1100.
