Radar Dome

A radar dome is not an optional addition to your helm. It is a fundamental layer of situational awareness that extends the captain's effective range well beyond what the eye can do in normal conditions, and replaces it entirely when visibility drops.

Seeing What Your Eyes Can't In Low Visibility

Fog, rain, and darkness remove the visual margin that captains depend on during normal operations. A properly installed radar dome restores that margin by detecting boats, landmasses, and hazards at distances the naked eye cannot reach. For a full overview of how dome radar compares to open array systems across brands, our Best Boat Radar Systems 2026 Comparison covers the current market in detail.

How A Closed-Dome Radar For Boats Handles Coastal Conditions

A closed-dome radar for boats encloses the antenna in a protective housing, limiting exposure to salt spray and physical damage, plus reducing wind resistance. This design suits boats operating in coastal and nearshore environments where conditions change quickly.

When A Radar Dome Is The Right Choice Over An Open Array

For boats where mounting space is limited, windage is a concern, or range requirements fall within coastal parameters, a dome unit is the more practical solution. By contrast, open arrays suit larger yachts with longer-range requirements and dedicated mast-mounting positions. For captains operating primarily in coastal waters, our Best Marine Radar for Coastal Navigation guide covers where dome radar fits in that operating profile.

Selecting The Right Radar Dome For Your Boat

Matching a radar dome to your boat requires more than checking a spec sheet. Here is how we approach that decision for every build.

Best Radar For 30- To 45-Foot Boat Applications

The best radar for 30- to 45-foot boat installations balances target resolution, rotation speed, and network compatibility without overbuilding for a range the boat will rarely use. In particular, an 18 or 24-inch dome covers the operational profile of most coastal and nearshore captains in this size class, giving the captain reliable situational awareness without the mounting complexity of an open array.

Solid-State Versus Magnetron: What Actually Changes At The Helm

Solid-state units start instantly, draw less power, and perform better at close range than magnetron alternatives. Garmin's solid-state Fantom domes add MotionScope technology, which uses the Doppler effect to detect moving targets and color-code them on the chartplotter display, giving the captain an immediate visual distinction between hazards and stationary returns. Magnetron units deliver higher transmit power at a lower price point. The right choice depends on the boat's operating range and power budget. For a direct platform comparison across brands, our Garmin vs. Raymarine comparison covers the key differences across performance categories.

How Boat Network Architecture Shapes Radar Performance

A radar dome feeds data to your chartplotter, overlays targets on your chart, and in some configurations, shares that data across multiple helm stations. That said, getting the network architecture right before installation prevents signal conflicts and display inconsistencies. Our Ideal Network Topology for a Yacht guide explains how these systems should be structured for reliable performance.

Key Factors Before Purchasing A Radar Dome

These are the variables that determine whether a radar dome fits your boat and operating profile before you make a purchase.

Boat Size And Mounting Height: Mounting height directly affects maximum effective range and reduces blind spots close to the hull. After all, a dome mounted too low produces a larger close-range blind zone that no setting adjustment will correct.

Solid-State vs. Magnetron Technology: Solid-state units start instantly, draw less power, and perform better at close range than magnetron alternatives. On the other hand, magnetron units deliver higher transmit power at a lower price point. The right choice depends on the boat's operating range and power budget.

Network Compatibility: Garmin domes require compatible Garmin displays, whereas Raymarine domes require compatible Raymarine displays. Mixing brands without proper interface hardware creates integration problems that affect performance across the whole helm.

Installation Quality: Cable runs, connector quality, and physical mounting angle all affect radar performance regardless of how capable the hardware is rated. A correctly installed dome outperforms a poorly installed one at any price point.

Rotation Speed: Faster antenna rotation improves target update rate at close range, which matters most in congested areas, narrow channels, and anchorages where conditions change quickly.

Recommended Radar Domes For 25–70 ft Boats

Six units cover the great majority of dome installs we specify. Which one is right for your boat comes down to three things: the platform already at your helm, whether you want solid-state or magnetron, and how much bearing resolution you need at range.

When you purchase equipment through Concord Marine Electronics, 10% of your online equipment purchase price is applied toward professional installation by our certified technicians.

Garmin GMR Fantom 18x — Solid-State Radar For 25–40 ft Coastal Boats

Best for: 25–40 ft center consoles and smaller sport boats focused on coastal and nearshore fishing.

An 18-inch solid-state dome with 50 watts of output power, up to 60 RPM rotation speed for a refresh rate that can detect movement at any speed, and a maximum range of 48 nautical miles. MotionScope detects and color-codes moving targets on the chartplotter display, while timed transmit mode and the power save feature both lower electrical load when full output is not required. Connects to compatible Garmin chartplotters via a BlueNet network cable.

View Garmin GMR Fantom 18x →

Garmin GMR Fantom 24x — Extra Resolution For 30–50 ft Boats

Best for: 30–50 ft boats where extra target separation justifies a larger dome.

The same 50-watt solid-state platform and 48 nautical mile maximum range as the 18x, with a narrower 3.7-degree horizontal beam width for improved bearing resolution. Same MotionScope, timed transmit, power save, and BlueNet networking. The tradeoff is dome footprint, so confirm your mounting position before ordering.

View Garmin GMR Fantom 24x →

Garmin GMR 18 xHD3 — Value Magnetron Upgrade

Best for: Boats upgrading from older magnetron units who want HD performance at a value price.

An 18-inch magnetron dome with 4kW transmit power, a 48 nautical mile maximum range, and up to 60 RPM rotation speed. Dynamic sea filters automatically adjust sea clutter to enhance consistent target detection. It also includes MARPA target tracking for up to 30 targets with a compatible heading sensor (sold separately), a split-screen dual-range display, and Dynamic Auto Gain. Connects via BlueNet to compatible Garmin chartplotters.

View Garmin GMR 18 xHD3 →

Garmin GMR 24 xHD3 — Extended Range And Resolution

Best for: 35–70 ft boats needing better long-range resolution.

The same 4kW magnetron platform as the 18-inch model with a narrower 3.7-degree horizontal beam width compared to the 18x's 5.2 degrees. That produces better bearing resolution and improved target separation at range. Same feature set throughout, including scan averaging, MARPA tracking, dual-range display, and BlueNet networking.

View Garmin GMR 24 xHD3 →

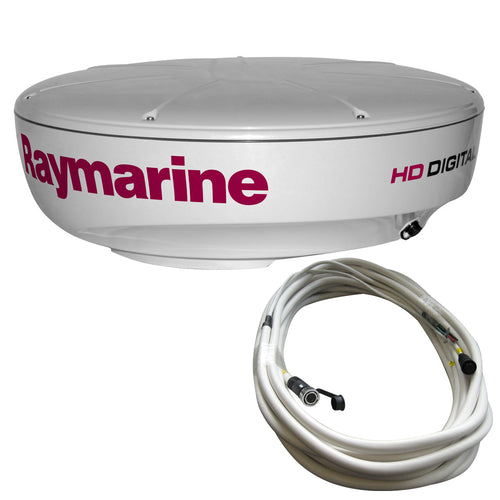

Raymarine RD418HD — For Raymarine Helm Owners (18")

Best for: 25–45 ft Raymarine-equipped boats, coastal use.

An 18-inch 4kW digital dome with HD target resolution, adaptive digital receiver technology, and a 256-color multi-level display with selectable palettes. The adaptive receiver automatically adjusts to changing sea and weather conditions, maintaining clear target returns in rain, fog, and high sea states without manual adjustment. Bird Mode optimizes the receiver to detect seabirds above schools of fish, useful for locating bait activity before committing to a position. Dual-range display lets the captain monitor long and short ranges simultaneously from a single scanner. Includes 48 RPM high-speed target tracking.

View Raymarine RD418HD →

Raymarine RD424HD — For Raymarine Owners Wanting More Resolution (24")

Best for: 35–70 ft Raymarine boats running busier coastal routes.

The 24-inch version of the RD418HD extends bearing resolution and effective target separation for boats operating in busier or more open coastal environments. Same adaptive digital receiver, 256-color display, Bird Mode, dual-range display, and 48 RPM high-speed tracking as the RD418HD.

View Raymarine RD424HD →

Want to see specs and pricing?

View Garmin Radar Domes → · View Raymarine Radar Domes →

DIY vs Professional Radar Installation

Good DIY fit: Single-station setups on smaller boats where you are comfortable running cabling, sealing penetrations, and wiring power.

Pro-install recommended: Any install that involves network integration (radar plus MFDs plus autopilot), multiple helms, tower mounts, or 40 ft+ boats and 70 ft+ yachts.

Mis-mounted domes and bad cabling usually don't show up at the dock. They show up in fog and tight traffic.

Based in South Florida and prefer professional installation? Equipment purchased through this store qualifies for a 10% installation credit with Concord Marine Electronics at Safe Harbor Lauderdale Marine Center.
