Marine Monitor for Yacht Captains

View Furuno MU series marine monitors that fit most sportfish builds, motor yachts, and superyachts.

Shop Furuno marine monitors

Marine Monitor Features That Matter at the Helm

These features separate a true marine monitor from a screen that simply survives on a boat for a season or two.

• Sunlight Readability: Furuno's MU series monitors use 1,000 cd/m² panels, bright enough to stay readable in tropical sun. Anti-reflective glass on the HD models further cuts glare.
• Bonded Glass: The LCD and front glass are bonded together, which prevents internal fogging on open flybridges. That bonding also sharpens contrast at wide angles.
• Wide Viewing Angles: Captains and crew read the same screen from different positions at the helm. Wide viewing angles keep colors and data accurate from each seat.
• Multiple Inputs: Depending on the model, DVI, DisplayPort, HDMI, composite, and BNC inputs allow one monitor to show radar, charts, cameras, and computers. That flexibility simplifies larger helm designs.
• Dual-Power Redundancy: The multi-touch MU models accept 115 to 230 volts AC, 24 volts DC, or both, switching automatically if one source drops. Our Marine Navigation and Instruments Marine Monitors collection lists every model in one place.

Building a Glass Bridge Display

A glass bridge brings navigation, monitoring, and cameras together into one clear, consistent view for the captain.

Combining Radar, Charts, and Cameras

Picture-in-picture and split-screen modes on the multi-touch MU models let one display show radar, charts, and a camera feed side by side. That reduces the number of screens needed and keeps critical information in the same line of sight. Video pass-through on these models also sends a clone signal to a second monitor, which suits upper and lower helm stations. Pass-through is VGA only, so plan the second monitor's input accordingly. On larger yachts, that same flexibility lets the captain build different layouts for docking, cruising, and night running.

Monitors vs Multifunction Displays

Multifunction displays combine screen and processor in one unit, while marine monitors pair with separate black box processors. Larger yachts often choose monitors because processors can be upgraded without replacing screens, and screens can be sized freely. Black box systems also keep heat-producing processors below the console, away from sun-exposed helm surfaces. Our Raymarine Chartplotters Axiom Series comparison explains when an all-in-one display makes more sense.

Brand Ecosystem Considerations

The MU series pairs naturally with Furuno's NavNet TZtouch black box systems. For a remote display of a TZT9 or TZT14, Furuno specifies the wide-aspect MU245T so the video scales correctly. The MU192HD and MU152HD also work with compatible systems from other manufacturers. Our Garmin vs Raymarine for boat navigation comparison helps owners weigh the broader ecosystem decision. Choosing the platform first prevents mismatched hardware that limits control features later.

Network Design Behind the Helm

A glass bridge depends on the network behind it as much as the screens in front. Processors, radar, cameras, sonar, and Yacht Internet all share that backbone, and poor layout causes lag and dropouts. Our guide to the Ideal Network Topology for a 50 to 100ft Yacht shows how we structure those systems for dependable performance. The monitors themselves rarely cause network problems, but they expose every weakness behind them.

Choosing the Right Display Type

Each display in the lineup serves a specific role, from the main helm to a secondary station below deck.

Furuno MU Series Monitor Lineup

Furuno's MU series covers sizes from 15 to 24 inches, with multi-touch models for primary helm control and LCD models for viewing and secondary stations. Every model in the series delivers 1,000 cd/m² brightness and bonded panels built for marine conditions. The touch models carry multiple class approvals, including IEC, NK, DNV, BV, LRS, and ABS, with some approvals pending. That consistency means a helm built from different sizes still reads the same across every screen.

Multi-Touch Marine Monitor Controls

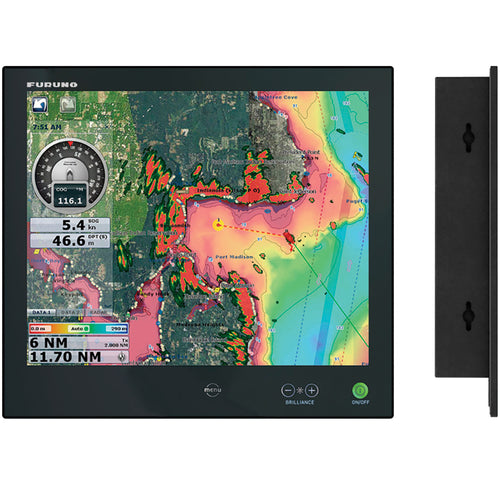

The Furuno MU245T 24" Wide Screen Multi Touch Monitor, Furuno MU195T 19" Multi Touch Marine Monitor, and Furuno MU175T 17" Multi Touch Marine Monitor all use Projected Capacitive Touch, called PCTouch, for responsive control of NavNet TZtouch systems. The MU245T offers native 1920 x 1080 resolution, while the MU195T and MU175T run at 1280 x 1024. Glass display controls include two user-programmable hot keys for frequent functions. An updated touchscreen and controller deliver faster, more accurate response.

Marine LCD Monitor Options for Secondary Stations

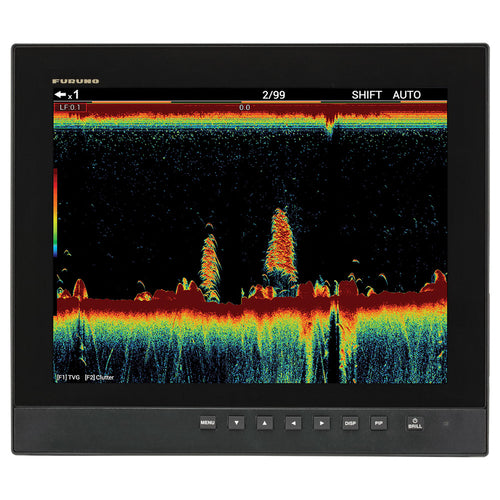

The Furuno 19" Color LCD Marine Monitor, model MU192HD, and the Furuno 15" Color LCD Marine Monitor, model MU152HD, suit secondary helms, engine rooms, and crew stations. Both run on 12 to 24 volts DC, carry an IP56 front-panel rating, and accept HDMI, DVI-D, RGB, and composite video. The MU192HD runs at 1280 x 1024, while the MU152HD runs at 1024 x 768. Both can also display security cameras, DVD players, and computers alongside navigation sources.

Sizing Screens for the Helm Layout

Screen size should follow viewing distance and the information each station needs. A 24-inch wide screen suits a main helm where radar and charts run side by side, while 17-inch and 19-inch screens fit tighter consoles. Secondary stations often need only a 15-inch display. Larger screens also make chart detail and small radar targets easier to read from a distance. We mock up helm layouts before ordering so screens fit the console, sightlines, and the captain's reach.

Common DIY Mistakes With Marine Monitors

• Choosing size before layout. Screen size should follow viewing distance and what each station needs to see, not the biggest panel that fits the cutout.
• Running video cable beside high-current power. That can introduce interference on the image, and long digital runs need quality cable to avoid signal loss.
• Skipping ventilation space. Heat buildup behind a monitor in an enclosed console shortens display life.

Which Monitor Fits Your Helm

• If radar and charts run side by side at the main helm, choose the 24-inch MU245T.
• If the console is tighter and you want touch control of a NavNet TZtouch system, choose the 17-inch MU175T or the 19-inch MU195T.
• If the station is secondary, such as an engine room or crew station, and needs viewing rather than control, choose the MU192HD or MU152HD.
• If you are upgrading an older Furuno helm, the MU192HD and MU152HD reuse the MU150HD and MU190HD cutout.
• If the display must stay live when one power source drops, choose a multi-touch model with dual AC and DC power.

Recommended Furuno Marine Monitor Kits

These three options cover most helm layouts we design. Each is chosen for what it delivers on the water, not for its spec sheet.

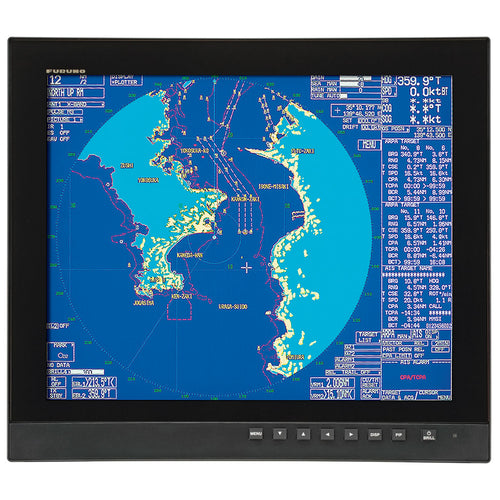

Furuno 19" Color LCD Marine Monitor (MU192HD) – Good

Best for: Secondary helms, engine rooms, and crew stations that need to view navigation, cameras, and computers rather than control them.

What's included: Furuno MU192HD 19" color LCD marine monitor. Flush mounting is standard, and a bracket mount is optional.

• 1,000 cd/m² panel with anti-reflective glass to cut glare
• HDMI, DVI-D, RGB, and composite inputs for cameras, computers, and navigation sources
• 12 to 24 volts DC with an IP56 front-panel rating
• Reuses the MU150HD and MU190HD cutout when upgrading an older helm

Shop Furuno MU192HD 19" marine monitor kit

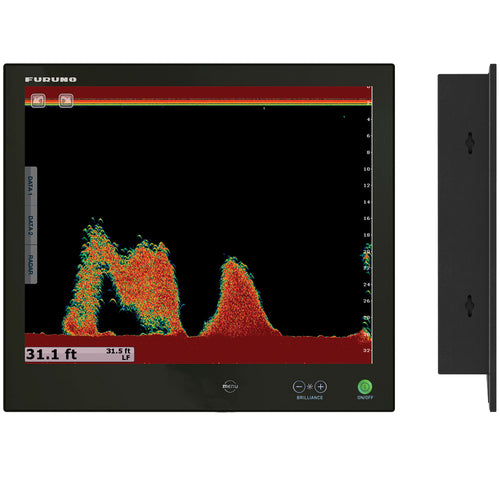

Furuno MU195T 19" Multi Touch Marine Monitor – Better

Best for: Main helms on tighter consoles where the captain wants touch control of a NavNet TZtouch system.

What's included: Furuno MU195T 19" multi-touch monitor with flush mounting kit.

• PCTouch projected capacitive touch with two user-programmable hot keys
• 1280 x 1024 resolution with picture-in-picture and split-screen modes
• Dual power: 115 to 230 volts AC, 24 volts DC, or both, with automatic switching

Shop Furuno MU195T 19" multi-touch monitor kit

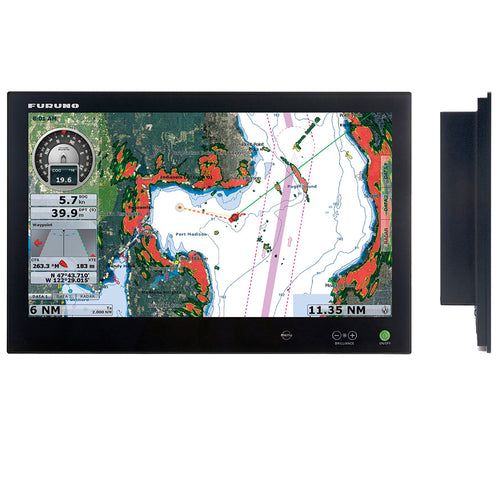

Furuno MU245T 24" Wide Screen Multi Touch Monitor – Best

Best for: Primary glass-bridge helms where radar and charts run side by side and the captain needs a wide 24" control display.

What's included: Furuno MU245T 24" wide screen multi-touch monitor with flush mounting kit.

• Native 1920 x 1080 resolution
• Video pass-through (VGA only) clones the picture to a second monitor for upper and lower stations
• Dual AC and DC power keeps the display live if one source fails

Shop Furuno MU245T 24" multi-touch monitor kit

Want to see the Furuno marine monitors we recommend?

View Furuno MU series marine monitors that fit most sportfish builds, motor yachts, and superyachts.

Shop Furuno marine monitors

Recommended Add-Ons for Furuno Marine Monitors

Flush-mount kits and brackets

Best for: Captains upgrading older Furuno helms or adding monitors to secondary stations.

• Allows clean flush mounting or bracket mounting on a variety of consoles.

High-quality DVI, DisplayPort, and HDMI cables

Best for: Long digital runs between processors and MU monitors without signal loss.

• Marine-grade or high-spec cables help keep images sharp at the main and secondary helms.

AC/DC power cabling and breakers

Best for: Dual-power MU195T/MU245T installs where the display must stay live if one source fails.

• Properly sized wiring and breakers help prevent flicker and restarts.

Shop Furuno marine electronics

DIY vs Professional Installation

Installation decides how well even the best monitor performs over years of heat, vibration, and salt air.

Good DIY fit:

• Single-station upgrade where the new monitor reuses an existing MU150HD/MU190HD cutout.
• Captains comfortable cutting or modifying consoles and running AC/DC and video cabling.
• Simple layouts where one processor drives one or two monitors and networks are already stable.

Call a pro when:

• The console is finished and requires a new or enlarged cutout.
• Several helm stations share sources through video pass-through and networked processors.
• You want both AC and DC power wired for automatic switchover and are not confident in circuit sizing.
• Monitors will pair with a NavNet TZtouch black box on a network shared with radar, sonar, cameras, and Yacht Internet.
• The yacht has crew or charter guests and the helm must work reliably every time.
• Mounting: Flush mounting kits come standard with the multi-touch MU models, giving a clean, integrated helm appearance. The MU192HD and MU152HD can be flush or bracket mounted, and both reuse the same cutout as the earlier MU150HD and MU190HD. That makes upgrading older Furuno helms far simpler, since the console does not need to be recut.
• Cabling: Plan every source the monitor will display, from processors and cameras to onboard computers, before routing cables. Digital connections such as DVI and DisplayPort deliver the sharpest image, but long runs need quality cable to avoid signal loss. Avoid running video cable alongside high-current power, which can introduce interference on the image. Label both ends of every video cable so future service and upgrades stay simple.
• Power: Wire the multi-touch models to both AC and DC sources where possible, so the display stays live if one source fails. Stable voltage also prevents flicker and unexpected restarts during engine starts.
• Location and ventilation: Mount screens at angles that minimize glare from windows and open sky. Allow ventilation space behind every monitor, since heat buildup shortens display life in enclosed consoles.
• Tools and time: Expect to need the flush-mount template, tools to cut or modify the console, quality video cable, and a way to test every input. Treat it as a multi-step job: cutout, mounting, power, cabling, input setup, and day and night checks each need their own attention.

Commissioning Every Input

We test each input, configure picture-in-picture layouts, and set brightness for day and night operation before handover. Touch response, hot keys, and remote display functions are verified at every station. Every display is checked under both bright daylight and night settings. Our Marine Electronics Installation guide outlines the full process we follow.

Prefer professional installation? South Florida customers receive a 10% installation credit on all shop purchases with Concord Marine Electronics at Safe Harbor Lauderdale Marine Center.
