How Marine Circuit Breakers Protect Your Electronics

Circuit protection is the quiet layer that keeps one electrical fault from becoming a fire or a failed system.

Stopping Overloads Before Damage Spreads

A circuit breaker opens the circuit the moment current exceeds its rating, whether from a short, a failing motor, or an overloaded device. That interruption protects the wire from overheating, which protects everything around it. Without correct protection, a single fault can melt insulation, damage nearby circuits, and leave several systems offline at once. On yachts running Yacht Internet, navigation, and entertainment from one electrical system, correct protection keeps a single fault from becoming a wider outage. The most expensive system is the one that fails during a charter or a business call.

Breakers vs Boat Fuse Protection

Fuses and breakers both interrupt excess current, but they behave differently after a fault. A fuse must be replaced once it blows, which means carrying the right spares and finding the fuse holder. A breaker simply resets once the fault is cleared. Fuses still have a place, especially close to batteries, but resettable breakers make daily ownership far simpler for most circuits. Underway, that difference often decides whether a system returns in seconds or stays down until port.

Safeguarding Sensitive Networked Gear

Modern helms share data across a single network, so a power fault on one device can disrupt the entire system. Proper protection on each circuit isolates problems before they spread to chartplotters, radar, or sonar. Our NMEA 2000 Explained guide shows how network power and protection fit into a dependable onboard backbone. A dedicated breaker for network power also makes troubleshooting faster when a device misbehaves.

Why Proper Sizing Matters

A breaker that is too large lets wire overheat before it trips, while one that is too small trips during normal operation. The correct rating depends on both the device's draw and the conductor's capacity. That relationship applies to every run aboard, including the speaker and multifunction cable in our Electrical Wire collection.

Amp Circuit Breaker Marine Ratings at a Glance

Each rating serves a different type of load, and choosing correctly starts with knowing what each circuit draws.

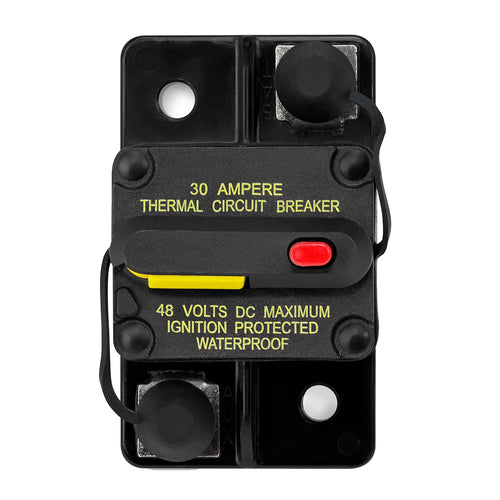

• 30A and 40A Circuits: The JL Audio 30 Amp Resettable Circuit Breaker - XMD-MCB-30 and JL Audio 40 Amp Resettable Circuit Breaker - XMD-MCB-40 suit moderate loads. They cover many accessory and audio circuits on smaller vessels.

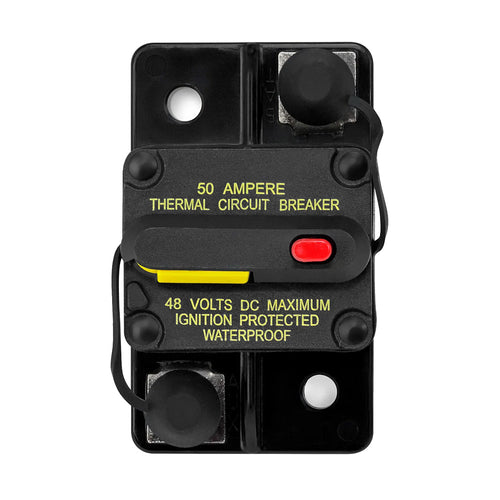

• 50A and 60A Circuits: The JL Audio 50 Amp Resettable Circuit Breaker - XMD-MCB-50 and JL Audio 60 Amp Resettable Circuit Breaker - XMD-MCB-60 handle heavier loads. They suit larger systems that draw more current under full power.
• 80A Circuits: The JL Audio 80 Amp Resettable Circuit Breaker - XMD-MCB-80 protects the highest-draw circuits among these breakers. It suits demanding loads with correspondingly heavy wiring.

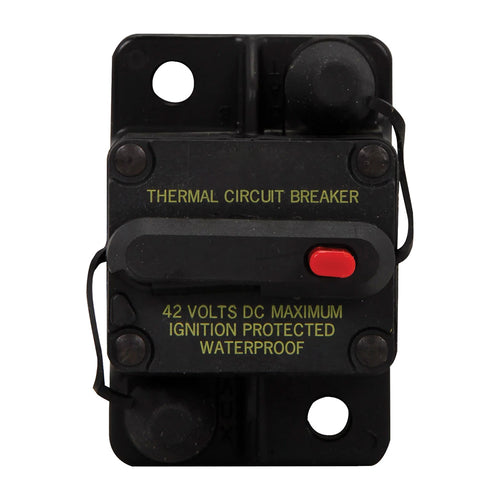

• Trolling Motor Circuits: The Garmin 60A Circuit Breaker is specified for Garmin Force trolling motor installations and is compatible with both the Force and Force Kraken motors.
• Matching Breaker to Wire Gauge: A breaker should never exceed the safe capacity of the wire it protects. Size the wire to the load first, then choose the breaker that protects that wire.

Resettable Circuit Breaker Boat Upgrades

Replacing old fuses and generic breakers with marine-rated resettable units improves both safety and everyday reliability.

Fast Recovery Without Spare Fuses

The JL Audio XMD-MCB series uses a manual reset design with a high-visibility switch, so a tripped circuit is easy to identify and restore. There are no spare fuses to stock, match, or replace. After the cause of the trip is found and corrected, the circuit returns to service in seconds rather than minutes. The visible switch also tells the crew which circuit tripped without testing every fuse holder.

Waterproof Housings for Exposed Locations

Breakers often sit in lockers, bilges, and consoles where water and spray reach them. Every JL Audio XMD-MCB breaker carries an IP67 rating, which means it withstands immersion in water up to one meter deep. That rating protects the internal mechanism from corrosion and keeps the breaker dependable in locations where standard breakers fail. Even so, we mount breakers where they stay accessible for inspection and resetting.

Ignition Protection for Engine Spaces

Engine compartments and fuel tank spaces can contain fuel vapor, so any electrical component installed there must not create a spark. The JL Audio XMD-MCB breakers are SAE J1171 external ignition protected, making them suitable for those spaces. Using non-protected breakers in an engine room is one of the more serious issues we correct during electrical surveys.

High Draw Circuits and Trolling Motors

Trolling motors draw significant current for long periods, so their circuits need dedicated, correctly rated protection. Garmin specifies the Garmin 60A Circuit Breaker for Force and Force Kraken installations. Using the specified breaker protects the motor and the wiring.

Common DIY Mistakes With Marine Circuit Breakers

• Sizing the breaker above the wire. A breaker should never exceed the safe capacity of the wire it protects, so size the wire to the load first.
• Using non-protected breakers in engine spaces. Engine compartments and fuel tank spaces need ignition protected components.
• Crowding the panel. An unlabeled panel with no spare positions makes every reset and upgrade harder, especially in low light.

Which Breaker Fits Your Circuit

• If the circuit is a moderate accessory or audio load, start with the 30A or 40A breaker, then confirm the wire can carry it.
• If the circuit feeds a larger system that draws more current under full power, choose the 50A or 60A breaker.
• If the circuit is the highest-draw load and the wiring is correspondingly heavy, choose the 80A breaker.
• If the breaker will sit in an engine compartment or fuel tank space, choose an SAE J1171 ignition protected breaker.
• If the breaker will sit in a locker, bilge, or console where water reaches it, choose an IP67 rated breaker.
• If the circuit powers a Garmin Force trolling motor, use the breaker Garmin specifies for that motor.

Recommended Marine Circuit Breaker Kits

These three options cover the load ranges we see most often. The right one is set by the circuit's wire and draw, not by the label.

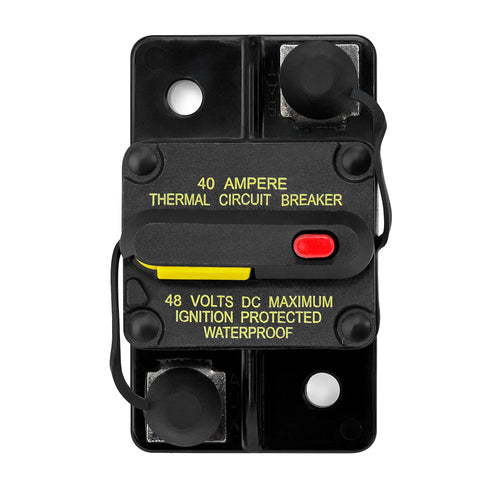

JL Audio 40 Amp Resettable Circuit Breaker - XMD-MCB-40 (Good)

Best for: Moderate accessory and audio circuits on smaller vessels, once wire gauge confirms it can safely carry 40 amps.

What's included: JL Audio XMD-MCB-40 40 amp resettable circuit breaker.

• Manual reset design with a high-visibility switch, so there are no spare fuses to stock
• IP67 rated to withstand immersion in water up to one meter deep
• SAE J1171 external ignition protected for engine compartments and fuel tank spaces
• Stainless steel M6 x 1 mm threaded studs resist corrosion at the connection points

Shop JL Audio 40A resettable breaker – XMD-MCB-40

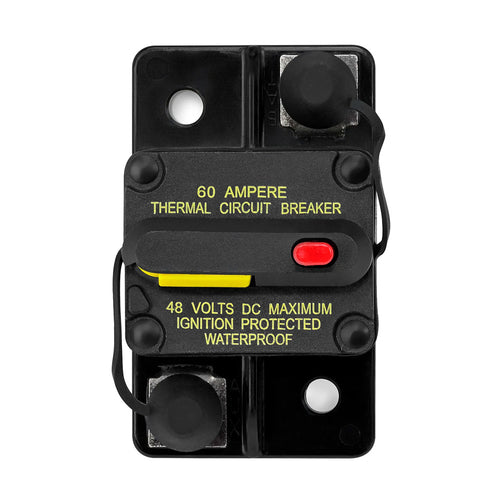

JL Audio 60 Amp Resettable Circuit Breaker - XMD-MCB-60 (Better)

Best for: Larger systems that draw more current under full power (for example bigger amps or DC loads) with wiring sized accordingly.

What's included: JL Audio XMD-MCB-60 60 amp resettable circuit breaker.

• Handles heavier loads than the 30A and 40A breakers
• Same IP67 rating and SAE J1171 ignition protection as the rest of the series
• Visible switch shows which circuit tripped without testing fuse holders

Shop JL Audio 60A resettable breaker – XMD-MCB-60

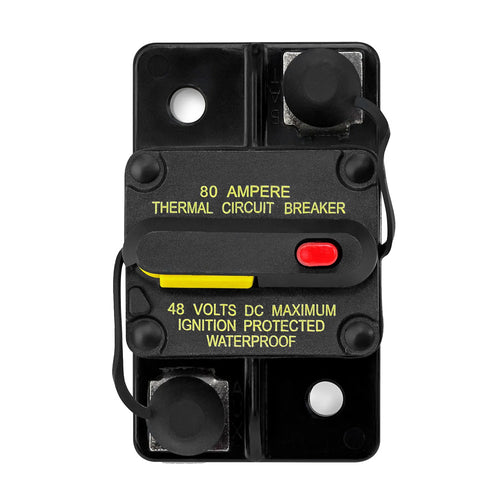

JL Audio 80 Amp Resettable Circuit Breaker - XMD-MCB-80 (Best)

Best for: The highest-draw circuits among these breakers, using heavy-gauge cable sized to the load and breaker rating.

What's included: JL Audio XMD-MCB-80 80 amp resettable circuit breaker.

• Protects demanding loads with a manual reset instead of replaceable fuses
• IP67 rating keeps the internal mechanism protected in exposed locations
• Stainless steel studs resist corrosion where heavy cable and lugs connect

Shop JL Audio 80A resettable breaker – XMD-MCB-80

For Garmin Force trolling motors, use the Garmin 60A Circuit Breaker specified for the motor. Our Electrical Circuit Breakers collection groups the current lineup.

Want to see the marine circuit breakers we recommend?

View marine-rated resettable breakers from 30A to 80A for audio, accessories, and high-draw systems.

Shop marine circuit breakers

Recommended Add-Ons for Marine Circuit Breaker Installs

Marine-grade breaker panels and enclosures

Best for: Organizing multiple breakers into a single, labeled panel instead of scattered add-ons.

• Supports clean layout and spare positions for future circuits.

Electrical wire and lugs

Best for: Matching wire gauge and lug size to 30A–80A circuits so breakers never exceed wire capacity.

• Marine-rated wire and tinned lugs improve long-term reliability.

Shop the Electrical Wire collection

Wire management hardware

Best for: Keeping panel wiring supported, bundled, and protected from chafe.

• Includes clamps, loom, and ties that keep runs tidy.

Shop the Electrical Wire Management collection

Labels and panel markers

Best for: Clearly marking each breaker and matching labels at the device end.

• Makes resets and diagnostics much faster, especially in low light.

DIY vs Professional Installation

A breaker works best as part of a planned, documented panel rather than an addition squeezed in later.

Good DIY fit:

• Replacing existing fuses or basic breakers with marine-rated resettable breakers on clearly labeled circuits.
• Adding moderate-draw accessory or audio circuits where you know the wire gauge and load.
• Working on accessible panels where wire routing is straightforward and clearly visible.

Call a pro when:

• You are adding circuits to a main panel or building a new panel from scratch.
• You are not certain of the wire gauge and breaker rating for 50A, 60A, or 80A circuits.
• Breakers will be installed in engine compartments or fuel tank spaces and must be ignition protected.
• Circuits feed networked helm gear, Yacht Internet, or other systems that cannot go offline unexpectedly.
• Your yacht has crew or charter guests and a single fault must not cascade into a wider outage.
• Panel layout and labeling: Group circuits logically at the panel, with navigation, communication, lighting, and accessories clearly separated. Label every breaker with the circuit it serves and match those labels at the device end. A well-organized marine electrical panel lets anyone aboard identify and reset the right circuit quickly, even in low light. Leave spare positions for future equipment, so upgrades do not require a cramped add-on panel.
• Wire routing: Wires leaving the panel need support, strain relief, and protection from chafe. Bundle circuits neatly, secure them at regular intervals, and keep high-current runs separated from data cables. Our Electrical Wire Management collection covers the hardware that keeps every run tidy and protected. An organized space behind the panel also makes every future upgrade faster and safer.
• Location and space: Choose each breaker by the wire it protects, the location it will occupy, and the environment around it. Check the mounting space too, since high-current breakers need room for heavy cable and lugs. The stainless steel M6 x 1 mm threaded studs on the JL Audio breakers resist corrosion at the connection points, where many electrical problems begin.
• Tools: Expect to need wire strippers, a crimping tool and correctly sized lugs, labels, and a meter to confirm voltage at each device.
• Time: Treat it as a multi-step job: planning, wiring, labeling, and load testing each need their own attention.

Final Load Testing Before Launch

We test every circuit under real load before handover, confirming correct voltage at each device and verifying that breakers hold during normal operation. Labels are checked against the panel diagram, and the documentation stays aboard for future service. Our Marine Electronics Installation guide outlines how that process fits into a complete install.
