Marine Antenna Mount for Captains

View Seaview rail, deck, and mast mounts that fit most center consoles, sportfish builds, motor yachts, and superyachts.

Shop marine antenna mounts

What a Solid Antenna Mount Protects

A mount looks like simple hardware, but it decides how well every antenna above it performs over time.

Stable Signals Start With a Solid Base

Antennas perform as designed only when they stay where they were aimed. A loose base lets the antenna sway, which shifts its signal pattern and weakens reception in exactly the conditions where it matters most. Satellite antennas are even less tolerant of movement. A rigid, correctly sized mount is the foundation of dependable Yacht Internet, communication, and navigation performance. That is why we treat the mount as part of the system design rather than an afterthought.

Vibration and Flex on the Water

Every boat flexes and vibrates, from engine harmonics to wave impact. Over time, that movement loosens fasteners, cracks gelcoat around mounting points, and fatigues cables at the base. Quality mounts use heavy-duty construction and rubber bushings that absorb movement instead of passing it along. We often find that an antenna replaced twice was simply mounted on hardware that could not handle the load.

Clearance From Radar and Other Antennas

Antennas crowded together interfere with one another, and radar energy can disrupt nearby equipment. A mount positioned with proper separation from radar arrays, satellite domes, and other antennas protects every system on the arch. Planning that separation early is far easier than relocating antennas after the arch is finished. Our Best Boat Radar Systems 2026 comparison explains how radar placement fits into that overall plan.

Why a Stainless Steel Antenna Mount Lasts

Salt air attacks cheap alloys and plated hardware quickly, leaving streaks, weak threads, and seized fittings. The Seaview 316 Stainless Steel Antenna Rail Mount - 1" - 1-1/4" Rails is cast from solid 316 stainless steel, a grade chosen for its corrosion resistance in marine environments. Rubber bushings protect the rail finish, and the standard 1"-14 threads accept the most common GPS and VHF antennas.

Mount Types for Every Vessel Layout

The right mount depends on where the antenna needs to sit and what structure is available to support it.

Rail Mount Antenna Options

Rail mounts suit boats without hardtops or arches, and they keep antennas accessible for service. The Seaview 316 rail mount fits 1-inch, 1-1/8-inch, and 1-1/4-inch rails, and its two-piece design hides wiring inside the mount and railing.

Deck Mount Antenna Setups

Flat surfaces such as hardtops and cabin roofs suit surface-mounted antennas. The Seaview Gen 3 Standard Starlink Antenna Mount w/8 Degree Wedge Base secures the Gen 3 Standard Starlink antenna, whose kickstand is designed only for flat, non-mobile placement. Its 8-degree wedge base tilts the antenna for water runoff, and the aluminum base carries a three-part polyurethane prime and powder coat for corrosion resistance. The wedge base is available in white or black to match the vessel's finish.

Mast and Arch Mounting

Masts and arches place antennas high, where sightlines are clearest. The Seaview Mast Mount f/Starlink Standard Gen 3 Antenna fits masts or tubes 3.63 inches (92 mm) and larger, using heavy-duty feet and rivets. Its solid underbody hides cables and is pre-drilled for flood lights or horns. Mast mounts also free up valuable hardtop space for other antennas or seating. Our Communication Antennas collection covers antennas suited to high mounting positions.

Starlink Antenna Mount Choices

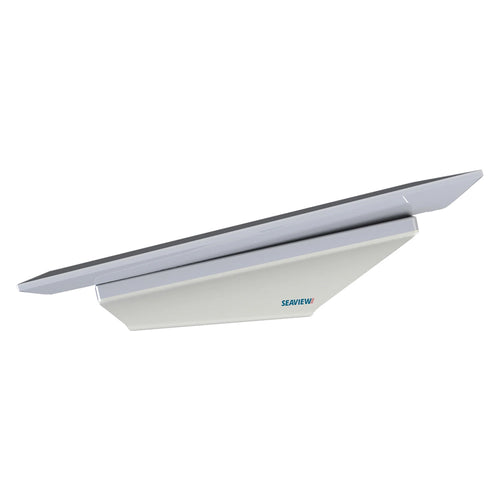

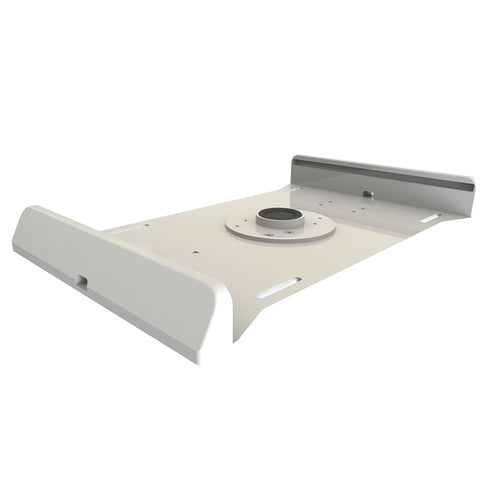

Starlink performance depends on a stable, clear view of the sky, and the mount must match the antenna generation exactly. The Seaview Performance Gen 3 Starlink Antenna Mount w/8 Degree Wedge Base - White includes an adapter plate and wedge base for the Starlink Performance Gen 3 antenna. The Seaview Gen 3 Standard Starlink Antenna Mount Top Plate - Fits Mounts Ending in M1 M2 adds the Gen 3 Standard antenna to existing Seaview modular pedestal mounts. On yachts bonding Starlink with 5G through the MDS Blender, that stability protects the Yacht Internet guests and crew depend on during charters and business calls.

Common DIY Mistakes With Antenna Mounts

• Ordering before matching the mount to the antenna. Thread size, weight, base diameter, and generation all have to match, and a Gen 3 Standard mount will not fit a Performance Gen 3 antenna.
• Leaving fasteners unsealed. Every fastener through a deck or hardtop is a path for water into the core, so each one needs marine sealant.
• Crowding antennas together. Without separation from radar arrays and other antennas, every system on the arch can suffer.

Which Mount Fits Your Boat

• If the boat has rails and the antenna is VHF, GPS, or weather, choose a rail mount such as the Seaview 316 stainless steel mount.
• If you have a flat hardtop or cabin roof for a Starlink Gen 3 Standard antenna, choose the 8-degree wedge base mount. For a Performance Gen 3 antenna, choose the Performance Gen 3 mount with its adapter plate.
• If you have a mast or tube of 3.63 inches (92 mm) or larger and want the clearest sightlines, choose the mast mount.
• If you already run a Seaview modular pedestal mount ending in M1 or M2, the Gen 3 Standard top plate adds the antenna without replacing the pedestal.
• If the antenna is heavy or the water is rough, choose a mount and structure rated for the added load.

Mount Selection Checklist Before You Buy

Confirm each of these points before ordering, and the installation will go smoothly from the first fastener.

• Antenna Weight and Size: Match the mount's rating and footprint to the antenna, especially for heavier satellite units.
• Mounting Surface: Identify whether the antenna will sit on a rail, deck, hardtop, mast, or existing pedestal.
• Rail or Mast Diameter: Measure precisely, since rail and mast mounts are built for specific diameter ranges.
• Wedge Angle: Decide whether the antenna needs a tilted base for water runoff or sightline clearance.
• Future Upgrades: Choose modular mounts where possible, so new antenna generations need only a new top plate.

Recommended Marine Antenna Mount Kits

These three options cover most antenna layouts we design. Each is chosen for what it delivers on the water, not for its spec sheet.

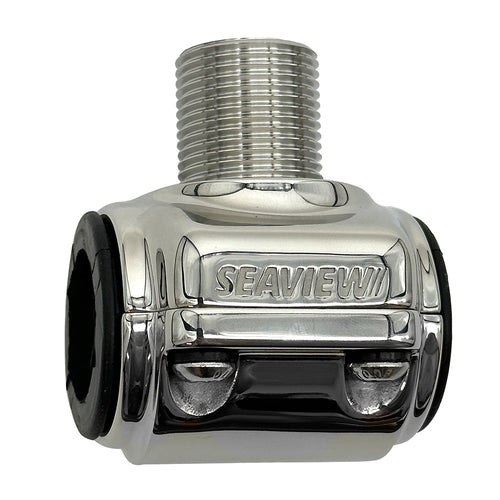

Seaview 316 Stainless Steel Antenna Rail Mount – Good

Best for: Boats with 1", 1-1/8", or 1-1/4" rails carrying VHF, GPS, or weather antennas where easy access for service and clean wiring are important.

What's included: Seaview 316 stainless steel rail mount for 1", 1-1/8", and 1-1/4" rails, with rubber bushings.

• Cast from solid 316 stainless steel for corrosion resistance
• Two-piece clamp keeps wiring hidden inside the mount and railing
• Standard 1"-14 threads accept the most common GPS and VHF antennas

Shop Seaview 316 stainless rail mount kit

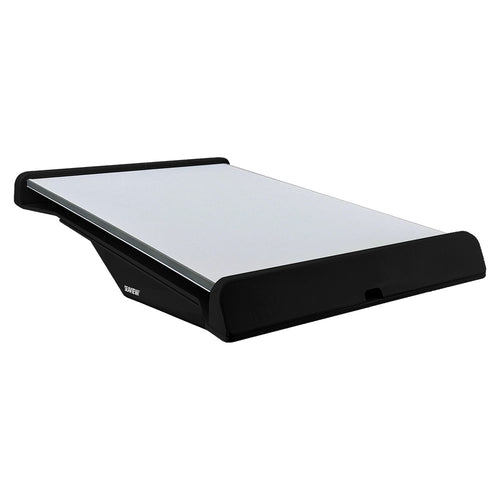

Seaview Gen 3 Standard Starlink Antenna Mount w/8 Degree Wedge Base – Better

Best for: Hardtops and cabin roofs where a Starlink Gen 3 Standard antenna needs a rigid, sealed base instead of its portable kickstand.

What's included: Seaview wedge base mount for the Gen 3 Standard Starlink antenna, available in white or black.

• 8-degree wedge base tilts the antenna for water runoff
• Aluminum base with a three-part polyurethane prime and powder coat
• Drilled and tapped for the CG30PW cable seal, so the Starlink connectors are not cut

Shop Seaview Gen 3 Standard Starlink wedge base kit

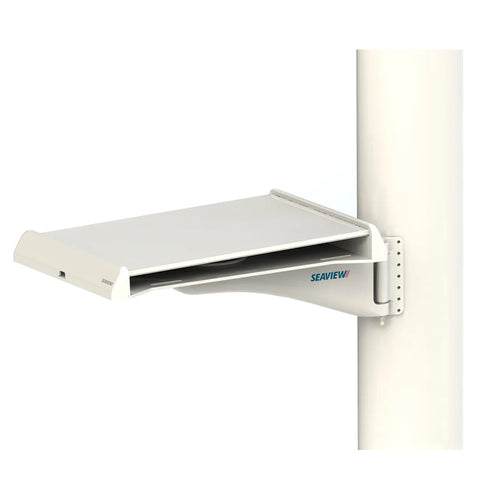

Seaview Mast Mount for Starlink Standard Gen 3 Antenna – Best

Best for: Masts and tubes 3.63" (92 mm) or larger on yachts that need the clearest sightlines and want to keep the hardtop free.

What's included: Seaview mast mount with heavy-duty feet and rivets for the Gen 3 Standard Starlink antenna.

• Heavy-duty feet and rivets secure the mount to the mast
• Solid underbody hides cables and is pre-drilled for flood lights or horns
• Frees up hardtop space for other antennas or seating

Shop Seaview mast mount for Starlink Gen 3 kit

Want to see the marine antenna mounts we recommend?

View Seaview rail, deck, and mast mounts that fit most center consoles, sportfish builds, motor yachts, and superyachts.

Shop marine antenna mounts

Recommended Add-Ons for Marine Antenna Mounts

Cable seals (CG30PW and related)

Best for: Starlink and other antennas where connectors cannot be cut and a watertight deck or hardtop penetration is required.

• Provides a sealed cable entry so water cannot reach the laminate core.

Backing plates and reinforcement kits

Best for: Mounting on cored hardtops and decks where loads need to be spread and the core must be protected.

• Helps prevent crushing and water intrusion around fasteners.

Coax, marine antenna cable, and connectors

Best for: VHF and AIS antenna runs that need short, protected routes with minimal loss.

• Marine-rated coax and connectors help maintain signal quality in harsh conditions.

Stainless fastener packs and sealants

Best for: Any new mount install through decks, arches, or hardtops.

• Provides appropriate stainless hardware plus recommended marine sealants.

Shop antenna mounts and accessories

DIY vs Professional Installation

A quality mount installed poorly performs no better than a cheap one, so installation details matter.

Good DIY fit:

• Rail-mount installs on 1"–1-1/4" rails for VHF, GPS, or weather antennas where structure is easy to access.
• Starlink or VHF deck and hardtop installs where you understand how to drill, bed fasteners, and install cable seals.
• Boats where the structure is solid (not unknown cored construction) and you can follow a layout drawing.

Call a pro when:

• Fasteners will pass through a cored hardtop or deck and you are not sure how it was built or how to seal the core.
• The antenna is a heavier satellite unit on a mast or arch in rough-water service.
• You need to plan Starlink, VHF, GPS, and radar positions together on a finished arch or mast.
• Wiring must pass through a finished structure without cutting Starlink connectors.
• The yacht has crew or charter guests and Yacht Internet and communications must work reliably every time.
• Height and sightlines: Plan every antenna position together rather than one at a time. VHF antennas need height, satellite antennas need open sky, and radar needs a clear sweep without blocking either. Our guide to the Best marine radar for coastal navigation shows how radar placement affects the rest of the arch layout. Mapping those positions on a drawing first avoids the costly reshuffle that happens when a new antenna arrives with nowhere sensible to go.
• Matching the mount: Thread size, antenna weight, base diameter, and generation all have to match the mount. A Starlink Gen 3 Standard mount will not fit a Performance Gen 3 antenna, and a rail mount must match the rail diameter exactly. Heavier satellite antennas also need a mount and structure rated for the added load in rough water. Our Communication Antenna Mounts and Accessories collection lists compatible options by antenna type.
• Sealing fasteners: Every fastener through a deck or hardtop is a path for water into the core. Bed each fastener in marine sealant, and use proper cable seals where wiring passes through. The Seaview Starlink wedge bases are drilled and tapped for the CG30PW cable seal, so wiring passes through watertight without cutting the Starlink connectors. The ADAG3 top plate includes a waterproof center grommet for the same purpose. Inspect those seals during routine service, since sealant ages faster under constant sun.
• Cable routing for VHF systems: Route coax cable inside rails, masts, or arches wherever possible to protect it from sun and chafe. Keep runs short, avoid tight bends, and leave a drip loop below exterior connectors. Secure cable every few feet so it cannot slap against the structure underway. Our Marine VHF Radio collection covers radios that pair with these antenna installations.
• Tools and time: Expect to need a drill, marine sealant, the correct cable seal for the entry point, and basic hand tools, plus a drawing of your antenna layout. Treat it as a multi-step job: planning, mounting, sealing, cable routing, and a signal check each need their own attention.

Prefer professional installation? South Florida customers receive a 10% installation credit on all shop purchases with Concord Marine Electronics at Safe Harbor Lauderdale Marine Center.
