Furuno Radar

Furuno's radar is engineered from decades of commercial maritime experience. That engineering difference is visible in the field on every vessel we install it on. For a broader comparison of marine radar options across brands, our best boat radar systems comparison is a useful starting point.

Furuno Doppler Radar: How Target Analyzer Changes Situational Awareness

Target Analyzer automatically colors radar returns based on approach velocity to indicate potential danger. Targets approaching at 3 knots or faster display in red. Stationary targets display in green. It works independently of your ship speed, giving the helmsman an immediate visual distinction between hazards and background.

Furuno DRS Solid State Radar: Why It Outperforms Magnetron

Solid state radar uses pulse compression rather than a magnetron transmitter, eliminating warm-up time, reducing power consumption, and delivering exceptional short-range detection. Combined with Doppler frequency shift sensing, the DRS NXT series produces target tracking accuracy that conventional magnetron radar cannot replicate.

Furuno Open Array Radar: What Antenna Size Determines At Range

Array size determines beam width, which controls target separation and long-range resolution. For instance, the DRS6ANXT 6-foot array produces a 1.2-degree beam width, whereas the 4-foot array produces a 1.85-degree beam width. We confirm mounting clearance and operational range requirements before specifying any open array configuration. For vessels navigating coastal waters specifically, our best marine radar for coastal navigation guide covers how these specs translate into real-world performance.

How RezBoost And Fast Target Tracking Improve Performance

RezBoost enhances target separation beyond what antenna beam width alone delivers. Meanwhile, Fast Target Tracking displays a target's speed and course vector within seconds of acquisition. From there, ARPA tracks up to 100 targets simultaneously in a single sweep. Rain Mode turns storm cells blue for clearer weather navigation. These capabilities change how the vessel is managed in demanding conditions.

The Furuno Marine Radar System Lineup We Carry And Install

Every unit in this lineup addresses a specific vessel size, operational range, and power requirement. Browse our full marine navigation radars collection to see everything we carry.

DRS6ANXT 6-Foot Open Array

Suited for coastal and near-offshore vessels that need reliable target detection without the power draw of a high-output system, this is a 25W solid state Doppler radar. The Target Analyzer automatically changes the color of targets approaching your boat, while Target Tracking interprets and tracks threats with Furuno’s advanced Doppler technology. Almost instantly, you'll see the target's speed and course vector, and if the target is hazardous, it will also be displayed in red, making it easier to identify and predict its course. From there, an incredible ARPA signal processor tracks and displays up to 100 targets. For an even more detailed display, Furuno's True Trail feature can be utilized, allowing you to see the direction in which a target is moving, independent of your vessel's motion.

It also includes Bird Mode, a standard feature that automatically adjusts echo-enhancement settings to help you locate birds. Further, RezBoost gives you enhanced target separation, in addition to its noteworthy long-range target detection. Plus, you’ll get direct 12VDC connection without the need for an external power supply. Compatible with TZtouch and TZtouch2, the range goes up to 72 nautical miles.

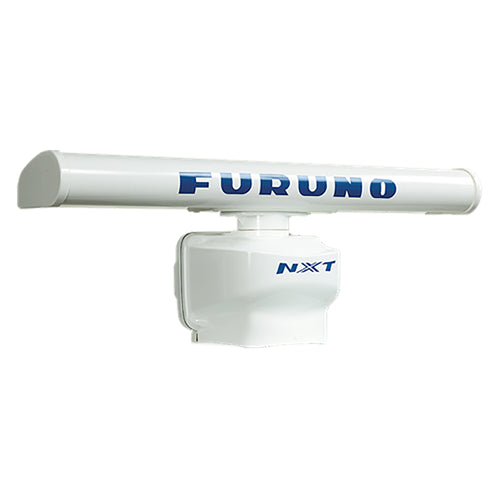

DRS6ANXT 4-Foot Open Array

The same 25W solid-state Doppler platform as the 6-foot DRS6ANXT with a 4-foot array producing a 1.85-degree beam width. You’ll get the same impressive feature set, including Target Analyzer, Target Tracking, Bird Mode, RezBoost, and direct 12VDC connection, with a range up to 72 nautical miles. This is best suited for vessels where mounting geometry limits the 6-foot configuration but the comprehensive NXT feature set remains a requirement.

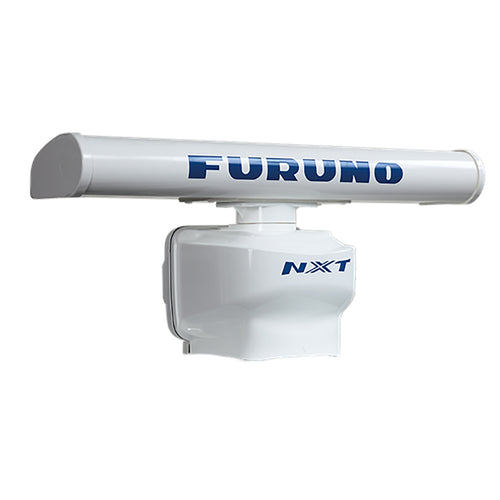

DRS12ANXT 3- And 4-Foot Array

For mid-size vessels operating offshore where 25W output is not sufficient to maintain reliable target separation in deteriorating conditions, the DRS12ANXT delivers 100W solid state radar with Target Analyzer, Fast Target Tracking, ARPA, Bird Mode, and Rain Mode that isolates rain cells, so that you can clearly see your targets. Compatible with NavNet TZtouch2 and TZtouch3, the 3-foot array configuration suits vessels where the mounting geometry limits the use of larger formats. For offshore fishing applications where radar is part of a complete electronics build, our best marine electronics for offshore fishing collection covers relevant configurations.

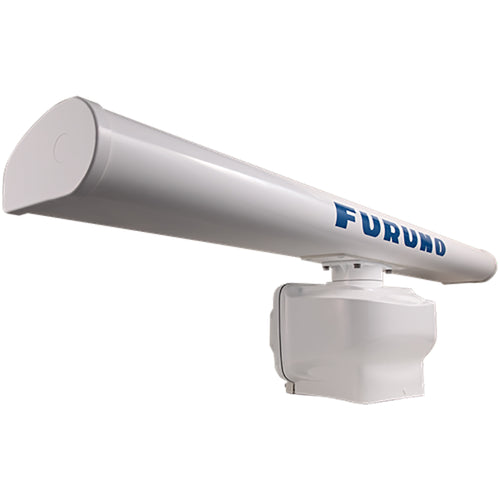

DRS12AX 12kW UHD Digital Radar

This 12kW X-Class Ultra-High Definition digital radar has a Fast Target Tracking function adopted from our commercial FAR3000, Bird Mode, enhanced short- and long-range target detection down to a minimum range of 20 meters, and a 96-nautical-mile detection range. The redesigned pedestal unit is 20% lighter than previous models with a low-noise motor and an updated smart-connector cable, so installation and maintenance is simpler than ever before. Compatible with NavNet TZtouch, TZtouch2, and TZtouch3, please note that this will not work with NavNet 3D or earlier NavNet models. Additionally, the DRS12AX is a 24V system, so a converter is required for use with 12V power systems.

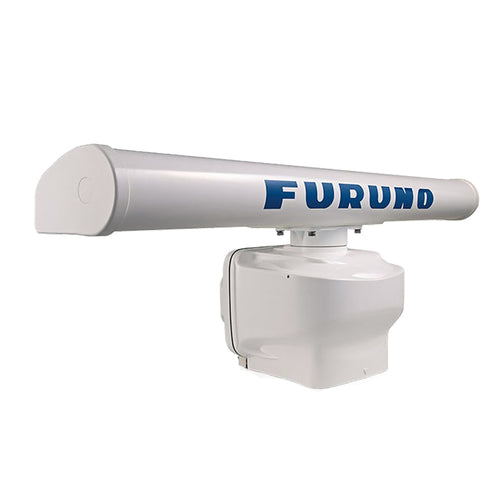

DRS25AX 25kW UHD Digital Radar

The Furuno DRS25AX 25kW UHD Digital Radar has the same commercial-grade Fast Target Tracking, Bird Mode, 96-nautical-mile detection range, and redesigned lightweight pedestal as the DRS12AX. There’s no PSU required, and it comes with a 4-foot open array and a 15M cable. Plus, it’s compatible with NavNet TZtouch, TZtouch2, and TZtouch3, but not NavNet 3D or earlier NavNet models. For captains also evaluating Raymarine radar alongside Furuno, our Raymarine radar overview provides a useful comparison point.

How We Install Furuno Marine Radar Systems

A Furuno radar only performs when the antenna position, cabling, and MFD integration are all correct.

• Antenna Mounting Position: We calculate the optimum mounting height based on vessel's superstructure, mast geometry, and the minimum detection range required for safe navigation.
• Cable Routing And Power Planning: DRS radars require specific cable specs. For instance, the DRS25AX and DRS12AX/6 require a 24V to 12V converter on 12V vessels. We confirm the power architecture before installation begins.
• MFD Integration And Verification: Every radar we install is integrated into NavNet TZtouch2 or TZtouch3 with a verified overlay on the helm MFD. From there, Target Analyzer, ARPA, and Bird Mode are all tested.
• Our 10% Installation Discount: When you purchase equipment through Concord Marine Electronics, 10% of your online equipment purchase price is applied toward professional installation by our certified technicians on any Furuno radar in our lineup.

Rest assured, every Furuno radar we install is tested on the water with all MFD functions active before the vessel is returned to you.
