The Right Furuno NavNet Setup For Offshore Sportfishing Boats

Furuno's presence on working vessels worldwide is the result of equipment that has consistently performed in demanding real-world conditions.

Built On Commercial And Recreational Reliability

Furuno Marine Electronics traces its technology roots directly to commercial and government marine applications, where system failure carries consequences far beyond inconvenience. That engineering discipline carries into every recreational product in the lineup, producing equipment that regularly outlasts and outperforms gear built purely for the consumer market.

How Furuno NavNet TZtouch3 Anchors The Ecosystem

The Furuno NavNet TZtouch3 platform connects MFDs, radar, multi-beam sonar, autopilot, AIS, and a variety of other sensors through a unified network architecture without requiring interface hardware or workarounds. Every component in the NavNet lineup is designed to communicate through the same backbone, which keeps the architecture clean and the failure point count low.

What To Know Before Building A Furuno System

A correctly structured NMEA 2000 backbone is required for sensor data to distribute reliably across all displays, and an incorrect layout tends to create conflicts that are difficult to diagnose after installation. For larger and more complex vessel builds, our Ideal Network Topology for a Yacht explains how a correctly structured backbone supports every connected device without conflict.

Matching The Right Furuno MFD To How You Fish

The right Furuno MFD for anglers depends on display size, built-in sonar capability, and Side-Scan support matched to the vessel's fishing profile. Our Marine Electronics Definitive Guide covers how to build a complete Furuno system around the right display foundation.

Furuno Radar For Offshore Fishing

Furuno's NXT solid-state Doppler radar gives captains and anglers a level of target intelligence that conventional radar generally can't match.

Target Analyzer And What It Changes At The Helm

Target Analyzer automatically color-codes radar targets based on whether they are approaching or moving away from the vessel: red targets are closing, while green targets are stationary or moving away. This reduces cognitive load on the captain in busy traffic situations and near congested inlets, where target behavior can change rapidly.

Bird Mode And Locating Bait Schools

Furuno's NXT radar lineup typically includes Bird Mode, which adjusts gain and sea clutter settings automatically to help detect flocks of diving birds that mark bait schools on the surface. For tournament anglers and serious offshore captains, this feature can translate directly into time saved and fish found. Our Best Marine Radar for Coastal Navigation guide covers how Furuno radar compares across coastal and offshore applications.

RezBoost And Fast Target Tracking In Practice

RezBoost is Furuno's exclusive beam sharpening technology that achieves resolution comparable to a larger antenna in a more compact package. Fast Target Tracking displays a target's course and speed vector within seconds of acquisition, giving the captain actionable information before a close-quarters situation develops.

How Furuno NXT Radar Integrates With NavNet Displays

Furuno NXT radar connects to NavNet TZtouch3 MFDs through the vessel's Ethernet backbone, sharing radar data across every display at the same time.

Furuno CHIRP Fishfinder Technology

TruEcho CHIRP is Furuno's proprietary sonar platform, appearing across the NavNet lineup in both integrated and black box configurations for serious fishing applications.

How TruEcho CHIRP Produces Cleaner Returns

TruEcho CHIRP sweeps across a wide frequency range within each transmission, producing more acoustic information per pulse than conventional single-frequency sonar. The result is generally sharper fish arches, better bottom discrimination, and more reliable target separation at the depths serious offshore anglers target. Understanding how this data moves across the vessel starts with the same backbone covered in our NMEA 2000 Explained guide.

From Built-In To Black Box Configurations

The Furuno CHIRP fishfinder lineup starts with built-in 1kW dual-channel TruEcho CHIRP in NavNet TZtouch3 MFDs and extends to dedicated black box modules for captains who need higher power output and CHIRP Side-Scan capability. Both configurations share sonar data across all networked NavNet displays at the same time.

Side-Scan Capability And What It Adds

Built-in CHIRP Side-Scan in TZT13X and TZT9E MFDs scans both port and starboard simultaneously, revealing bottom structure, cover, and fish-holding features in high definition. It operates at 230 kHz or 455 kHz center frequencies with multiple color presentation options for different water conditions.

Transducer Compatibility And Why It Determines Performance

Furuno transducer compatibility spans hull types, mounting styles, and frequency configurations, but correct matching to the sonar module and vessel profile is essential to getting the performance the hardware is capable of. Our Best Boat Radar Systems 2026 Comparison provides more context on how each hardware selection affects complete system performance on the water.

Want to see Furuno kits we recommend for offshore fishing?

Shop Furuno Kits for Offshore Boats →

Recommended Furuno Kits By Boat And Fishing Style

We carry a verified range of Furuno electronics selected for proven performance and professional installation compatibility across vessel types and fishing applications. The three builds below cover the most common paths anglers take, from a straightforward single-display upgrade to a full offshore radar-and-sonar system.

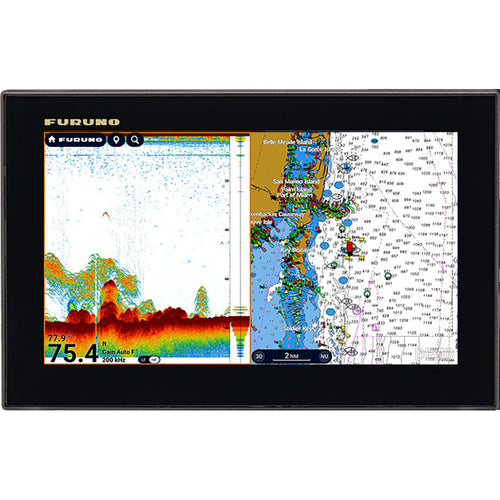

Good: Furuno TZT9E For An Essential Helm Upgrade ($2,195.00) Best for: 30–40 ft center consoles and day boats wanting a NavNet upgrade without a full multi-unit network.

• Built-in TruEcho CHIRP and CHIRP Side-Scan, so no separate black box to add.
• 9-inch multi-touch display with TZ MAPS, radar compatibility, and sonar expandability.
• Scales into a larger NavNet network later, so it's not a dead end if the boat or fishing gets more serious. Add this kit to cart →

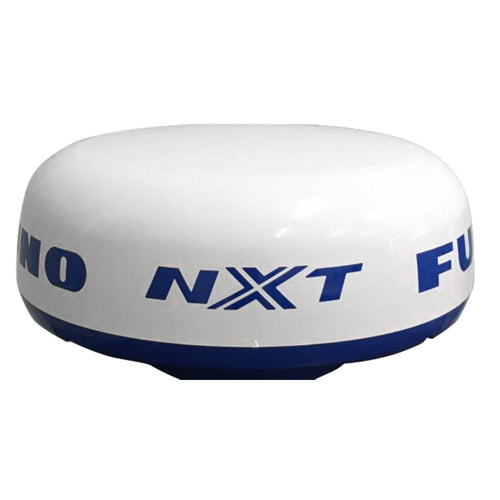

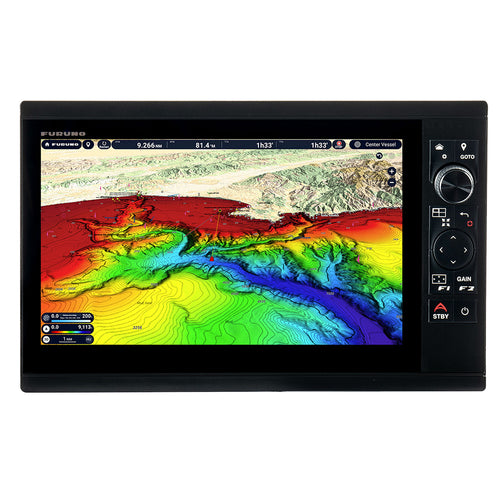

Better: Furuno TZT13X + Furuno DRS2DNXT For A Full Fishing And Safety Build Best for: mid-size offshore boats that want a larger display along with the safety and target-tracking benefits of NXT radar.

• The TZT13X's hexacore processor and 13.3-inch display give more screen real estate for split-function views at the helm.
• Built-in 1kW dual-channel TruEcho CHIRP and CHIRP Side-Scan cover most inshore-to-offshore fishing without an additional module.
• Pairing with the DRS2DNXT unlocks Target Analyzer and Fast Target Tracking, which reduce guesswork in busy traffic or low-visibility conditions. Add this kit to cart →

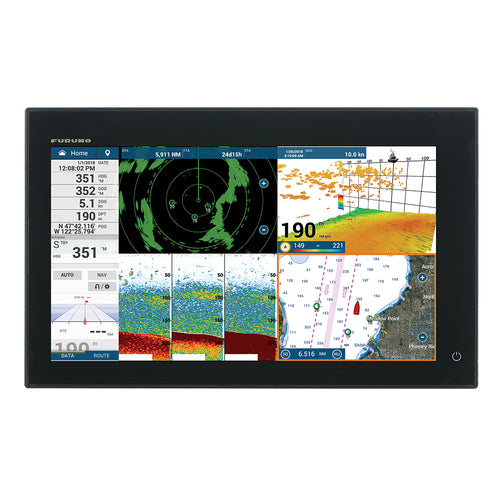

Best: Complete Deep-Water Fishing System With The Furuno TZT16F + Furuno DRS2DNXT + Furuno DFF1UHD+Best for: serious offshore and tournament anglers who want dedicated sonar power in addition to the display and radar.

• The TZT16F's built-in 1kW TruEcho CHIRP handles day-to-day fishing, while the DFF1UHD+ black box adds dedicated CHIRP Side-Scan and depth range extending to 4,000 feet for deeper canyon work.
• DRS2DNXT brings the same Target Analyzer and Fast Target Tracking as the Better build above, scaled to a full three-piece system.
• All three components share data across the network, so nothing has to be checked on a separate screen. Add this kit to cart →

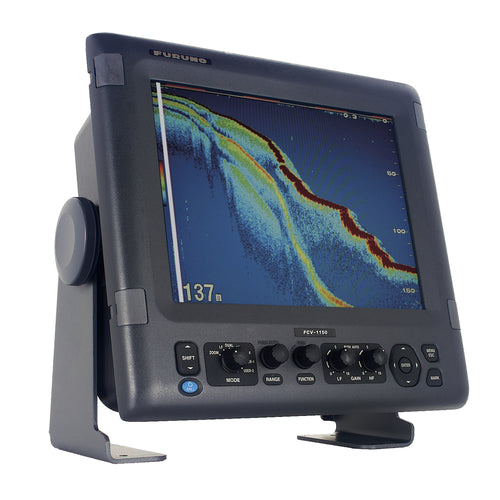

A Dedicated Alternative: Furuno FCV1150 Best for: captains who want a dedicated, high-power sounder separate from the main NavNet display. For anglers who want a purpose-built, standalone color fishfinder rather than a NavNet-integrated display, the FCV1150 offers selectable frequencies from 28 to 200 kHz and adjustable output power up to 3 kW, with heaving compensation for stable readings in rough seas. It isn't part of the NavNet ecosystem above, so it's worth considering only if a dedicated sounder fits your setup better than an integrated MFD. View Furuno FCV1150 →

Recommended Add-Ons for Furuno NavNet Systems

NMEA 2000 Starter & Backbone Kits Best for: boats adding Furuno NavNet to an existing helm and needing clean sensor data sharing. View NMEA 2000 Kits →

Radar Mounts and Towers Best for: mounting Furuno NXT domes with a clear 360-degree sweep above outriggers and antennas. View Radar Mounts →

Transducers Matched to TruEcho CHIRP Best for: getting full performance from TZT-series MFDs and DFF black box modules. View Furuno-Compatible Transducers →

DIY vs Professional Installation

Good DIY fit: smaller 30–40 ft boats doing a single MFD swap or adding a dome radar with simple cable runs and a transom-mount transducer. Call a pro: any install involving thru-hull transducers below the waterline, complex NMEA 2000 networks, multiple MFDs, or vessels 40 ft+ that run serious offshore trips.

Most mystery issues offshore come from transducer placement, cabling, or network configuration, not the Furuno hardware itself.

• Space: MFDs need enough depth behind the helm panel for NMEA 2000 and Ethernet connectors, not just enough room for the faceplate.
• Location: Radar domes need a mount with a clear 360-degree sweep, positioned above head height and clear of outriggers, antennas, or other obstructions.
• Cabling: Radar and transducer cable runs should stay clear of bilge water and other electronics to avoid moisture damage and interference.
• Tools: Expect to need proper crimping tools for waterproof connectors, the correct bits for thru-hull or transom transducer mounting, and a multimeter to confirm the NMEA 2000 backbone is reading correctly.
• Estimated Time: A single MFD swap can typically be done in a few hours. Adding an NXT radar and a black box sonar module with full network integration is usually a multi-day project.

Call a pro instead if the install involves a thru-hull transducer penetration below the waterline, if you're troubleshooting conflicts across an existing multi-device network, or if the vessel is 80 ft or larger with crew or charter guests aboard.
