Best VHF Marine Radio: Fixed-Mount & Handheld Picks For 2026

A VHF radio is the primary communication and distress tool on any vessel. The radios that perform aren't always the ones with the longest feature list. They're the ones that are correctly matched to the vessel, properly installed, and seamlessly integrated into the onboard electronics network. A well-matched, commissioned system is a reliable safety tool on every passage. For a broader look at how VHF fits into a complete onboard electronics setup, our Marine electronics guide is a good place to start.

Fixed-Mount vs. Handheld: Knowing Which Type Your Vessel Needs

Choosing the right marine VHF radio comes down to vessel size, communication demands, and helm configuration. Both handheld and fixed-mount configurations have a place on the water, and the mistake is treating them as interchangeable.

What Marine VHF Radio Fixed-Mount Options Provide

Fixed-mount radios transmit at 25 watts, giving them substantially greater range than handhelds, which are often capped at 6 watts. On a vessel over 40 feet, that output difference is operationally significant when hailing traffic, contacting marinas, or reaching the Coast Guard over distance. In addition, fixed mounts draw power directly from the vessel's electrical system, removing battery concerns during extended passages. To see what we currently carry, you can browse our full range of fixed-mount VHF radios.

When A Handheld Marine Radio Is The Right Call

A handheld excels as a portable backup and crew communication tool away from the helm. Tenders, dinghy operations, and crew working on deck or ashore all benefit from its mobility. On larger vessels, crew coordination during docking, anchoring, or emergency situations becomes more manageable when a portable radio is part of the system. However, a handheld should not serve as the primary radio on any vessel doing offshore work.

Installation Location And Its Effect On Performance

A fixed-mount radio's transmission performance is directly tied to where it's installed and how its antenna is positioned. A unit mounted in a poorly ventilated cabinet with a substandard cable run will not perform to its rated output. In addition, antenna height above the waterline has more effect on usable range than wattage does. These are installation decisions made at fit-out, not corrected by a future equipment upgrade.

The Garmin VHF Lineup: Fixed-Mount Radios Built For System Integration

Garmin's VHF radio range runs from entry-level fixed-mount units to modular multi-station systems. Each model is built around NMEA 2000 integration and compatibility with the broader Garmin marine electronics ecosystem. For a deeper look at how this affects system performance, our NMEA 2000 network guide covers the fundamentals.

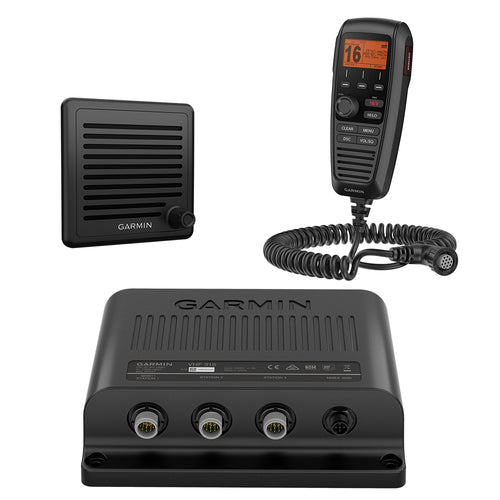

Garmin VHF 315: Modular Communication With Dual-Station Intercom

The Garmin VHF 315 is a 25-watt Class D Digital Selective Calling (DSC) fixed-mount with a modular design. It includes the GHS 11 handset and active speaker configured for intercom use between up to three stations. The unit features a built-in GPS receiver requiring an external antenna, and a two-way 30-watt hailer system for communication with other boats or deckhands. NMEA 2000 enables integration with compatible chartplotters and multifunction displays, as well as convenient software updates. Preprogrammed channels cover U.S., Canadian, and international marine frequencies, plus 10 NOAA weather channels.

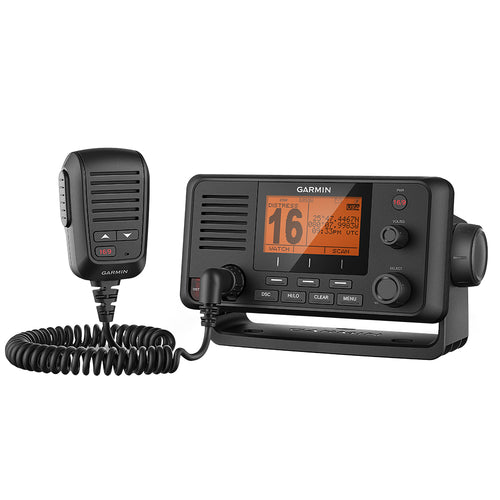

Garmin VHF 215: Mid-Tier Fixed-Mount With NMEA 2000

The Garmin VHF 215 offers Class D DSC capability with NMEA 2000 and NMEA 0183 connectivity. It supports easy plug-and-play installation to compatible chartplotters and MFDs via the NMEA 2000 network. Overall, the VHF 215 sits between entry-level and the extended modular capability of the VHF 315, making it a practical choice for vessels needing reliable fixed-mount communication without full multi-station expansion.

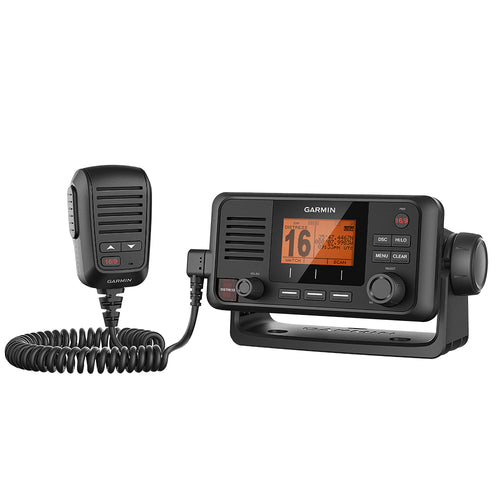

Garmin VHF 115: Entry-Level Fixed-Mount With Core Communication

The Garmin VHF 115 provides 25-watt Class D DSC communication in a straightforward fixed-mount format. It covers U.S., Canadian, and international marine channels alongside NOAA weather channels, with NMEA 2000 for chartplotter integration. For vessels that require a dependable primary radio without the expanded intercom and hailer features of the upper-tier models, the VHF 115 covers core communication requirements without unnecessary complexity.

How The Garmin VHF Series Fits Into A Garmin Marine Network

Each unit in the Garmin VHF lineup operates within the Garmin Marine Network via NMEA 2000. DSC distress alerts, vessel position, and channel data are shared with compatible Garmin chartplotters and MFDs across the same network backbone. For vessels already running Garmin navigation equipment, adding a Garmin VHF radio eliminates the compatibility and configuration work required when mixing brands across the communication and navigation stack.

Raymarine VHF Radios: Black-Box Architecture And Multi-Station Control

Raymarine's VHF lineup takes a distinct structural approach to fixed-mount communication. Its black-box architecture, modular handset system, and wireless expansion capability make it a strong fit for larger vessels with multiple helm stations.

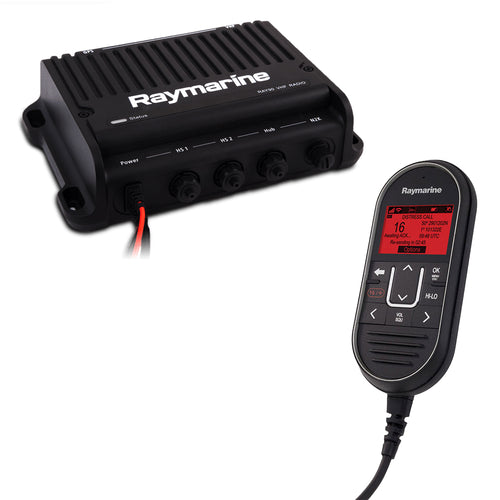

Raymarine Ray90: Powerful Commercial-Grade Build Quality

The Raymarine Ray90 is a modular 25-watt Class D DSC fixed-mount with a black-box transceiver built for out-of-sight mounting. The solid aluminum-cast transceiver unit is engineered for shock and vibration resistance with effective heat dissipation. Meanwhile, the RayMic handset and passive speaker provide full helm control. A built-in loudhailer delivers 30 watts of audio output with two-way talkback, and the unit can be programmed to automatically sound fog signals. Plus, channel scanning, dual-watch, and tri-watch are all standard. However, GPS operation requires the optional GA150 passive antenna.

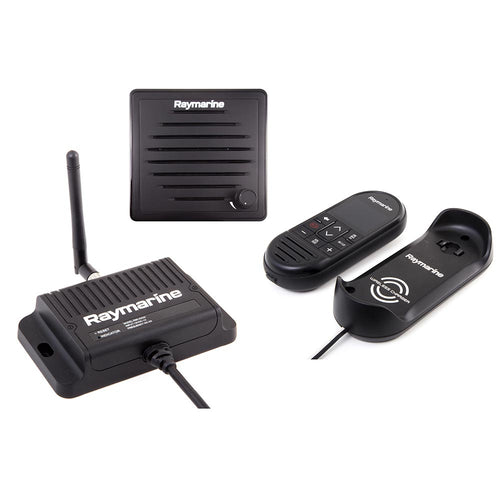

The Ray90 Wireless First Station Kit: Multi-Station Without The Cable Run

The Raymarine Ray90 Wireless First Station Kit adds a wireless handset, passive speaker, and wireless hub to the Ray90 system, enabling a second helm station without running additional cabling through the vessel. On larger yachts where cable runs between stations are long or complex, this kit resolves the problem cleanly. The wireless handset retains full radio and intercom functionality from the primary system, allowing the captain or crew to communicate from a second station without a hardwired cable run.

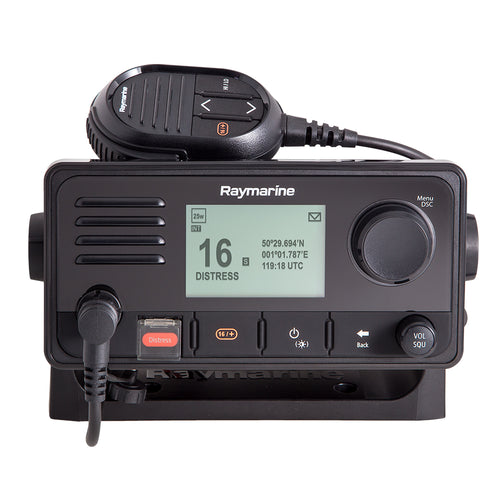

Raymarine Ray63: Full-Function DSC With Built-In GPS

The Raymarine Ray63 is a boat radio with GPS built into a full-function fixed-mount format with an oversized LCD and Class D DSC. It supports NMEA 2000 networking and accepts an optional remote speaker (A80542) for audio at a second location. The Ray63 supports dual-station control via the optional RayMic second-station kit, plus its design complements the Raymarine Axiom MFD family multifunction displays. For vessels running a Raymarine navigation stack, the Ray63 integrates without the configuration overhead of cross-brand pairing.

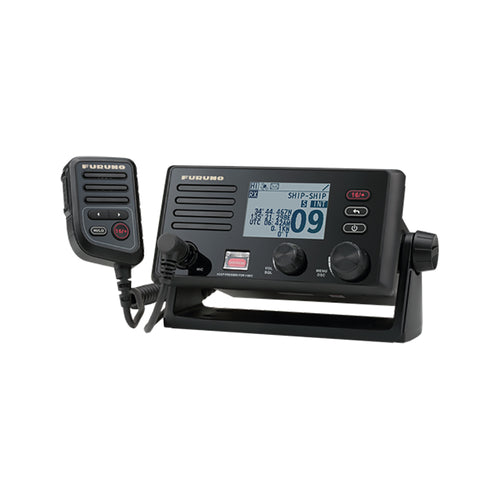

Furuno FM4800: The All-In-One Fixed-Mount Built For Serious Operators

The Furuno FM4800 consolidates VHF, GPS, AIS reception, DSC, and loudhailer functionality into a single compact housing. For vessels running Furuno navigation equipment, it fits the system architecture with minimal integration effort.

GPS, AIS, And Class D DSC In One Unit

The FM4800 is a VHF with built-in Class D DSC, a GPS receiver, and an AIS receiver, all in one compact housing. The internal GPS means the unit does not require an external GPS source to activate DSC functionality and can serve as a backup positioning source for other onboard electronics. Additionally, its AIS receiver overlays traffic data on compatible Furuno plotters and MFDs, including NavNet TZtouch2. When MOB is triggered on a connected TZtouch2, the FM4800 enters a mode where a distress call can be initiated with a single press of the rotary knob.

Loudhailer, Fog Horn, And Alert Sounds As Standard

The FM4800 operates as a simplified loudhailer with eight alert sound patterns. Fog Horn and Warning Signal modes are available as standard, useful for low-visibility navigation without requiring a separate hailer unit. When a second-station handset is connected, intercom communication is available between devices. The unit carries an IP67 waterproof rating on the transceiver and microphone, meaning it withstands temporary immersion, serving as a practical specification for exposed helm environments.

NMEA 2000, NMEA 0183, And Furuno Network Integration

The FM4800 simultaneously shares GPS, DSC, and AIS data across NMEA 2000 and NMEA 0183 networks. When connected via NMEA 2000 to a NavNet TZtouch2 MFD, DSC calls can be initiated directly from the MFD display by selecting an AIS or DSC target. The FM4800 also shares a design language with the NavNet TZtouch2, NavPilot 711C, and FI70 Instrument series, producing a visually unified helm for vessels running a full Furuno stack. At Concord Marine Electronics, when we specify full Furuno systems, the FM4800 performs as a native component rather than an added peripheral.

Matching The Best Marine Radio For Boating To Your Vessel

Radio selection is based on vessel size, operational range, helm configuration, and the electronics already onboard. Getting the match right from the start avoids the cost and disruption of replacement and reconfiguration later.

Vessel Size And The Appropriate Radio Architecture

Vessels under 40 feet with a single helm are typically well served by the Garmin VHF 215 or Raymarine Ray63. Contrastingly, vessels between 40 and 80 feet with flybridge or tower configurations benefit from a modular system like the Garmin VHF 315 or Raymarine Ray90, where a second station can be added without replacing the primary unit. Vessels over 80 feet routinely require a primary fixed-mount system with multiple handset stations and full network integration, the category where Concord Marine Electronics specializes.

Coastal Cruising vs. Offshore: How Requirements Change

Coastal operations within range of shore stations can be managed with a well-installed 25-watt fixed-mount and a quality antenna. Offshore use raises the stakes: GPS-enabled DSC becomes critical when shore-based triangulation is unavailable, AIS integration adds collision awareness in open water, and loudhailer capability matters for vessel-to-vessel communication in open conditions. The Furuno FM4800 consolidates those offshore requirements in a single unit, whereas the Raymarine Ray90 addresses them through modular expansion.

Matching Your VHF To The Electronics Already Onboard

A VHF radio that shares network protocol and design architecture with your existing chartplotter and MFD reduces integration complexity and supports cleaner DSC and AIS data sharing. A Garmin VHF on a Garmin network, a Raymarine Ray series on an Axiom-based system, or a Furuno FM4800 on a NavNet TZtouch2 installation each represents a deliberate pairing decision that produces better real-world outcomes than cross-brand installations configured after the fact.

Professional Installation From Concord Marine Electronics

Ultimately, the best marine radio for boating is the one correctly specified for your vessel, then installed with proper antenna placement, appropriate cable grade, and a clean network configuration. At Concord Marine Electronics, we handle that process from specification through commissioning. When you purchase equipment through us, 10% of your online equipment purchase price is applied toward professional installation by our certified technicians, because the equipment and installation decisions should never be made separately.
