Best Thermal Camera For Boats

Most captains begin thinking about thermal cameras after something nearly happens on the water. The ones who have systems installed made that decision before it was needed. Marine thermal camera technology is a safety tool for any vessel operating in low visibility, at night, or offshore in conditions where other sensors leave gaps. Nowadays, yacht technology 2026 highlights the importance of having the right thermal camera for your rides.

What Marine Thermal Camera Technology Actually Detects

Thermal cameras detect differences in heat signature, not reflected light. That means they resolve vessels, persons in the water, navigation buoys, debris, and marine mammals in conditions where cameras and human eyes see nothing useful. They perform in complete darkness, light fog, rain glare, and harsh backlight conditions that defeat visible-light sensors entirely. For example, a swim platform heat signature, a drifting lobster pot buoy, and a low-profile kayak without lights all appear on thermal.

Why Thermal Outperforms Visible Light In Marine Conditions

Best boat night vision camera decisions often start with visible-light low-light cameras. Those cameras require some ambient light to function. A thermal camera requires none. On the water after dark, in reduced visibility, or in conditions where artificial light creates glare that blinds a visible sensor, thermal is the only technology that continues to resolve targets reliably.

How Sensor Resolution Determines Detection Range On The Water

Standard resolution thermal sensors at approximately 320x256 pixels are appropriate for coastal operations and near-shore use where detection range requirements are moderate. High-resolution 640x512 sensors deliver nearly double the detection range, resolving targets at distances that matter when vessel closing speeds are high and reaction time is limited offshore.

What Gyro Stabilization Does For Image Quality In Rough Seas

An unstabilized thermal camera on a vessel moving in chop or following seas produces an image that sweeps and rolls with every wave. Two-axis gyro stabilization compensates for pitch, heave, and yaw, maintaining a steady, locked image on a selected bearing regardless of what the vessel is doing. In rough conditions, that stability is the difference between a usable system and an unusable one.

Why Chartplotter Integration Determines Real-world Usefulness

A thermal camera that requires a dedicated monitor and separate control unit adds distraction at the helm. FLIR marine camera systems that integrate with Furuno, Garmin, Raymarine, and Simrad MFDs allow the captain to view and control the thermal image from the same display used for navigation, radar, and sonar.

Captains researching the full scopes of radar system options alongside thermal integration will find our post, Which Marine Radar Systems Are Best, to be very helpful. Likewise, captains researching the full range of Raymarine-compatible options will find detailed integration requirements covered in our handy Raymarine Radar Guide.

FLIR M-series Pan And Tilt Cameras: M232, M332, And M364

The FLIR M-Series is designed for vessels that require a steerable thermal view with stabilization. Each model addresses a different range, resolution, and vessel size requirement. We select M-Series cameras based on vessel operating range, crew size, and the specific coverage gaps that need to be closed on the water.

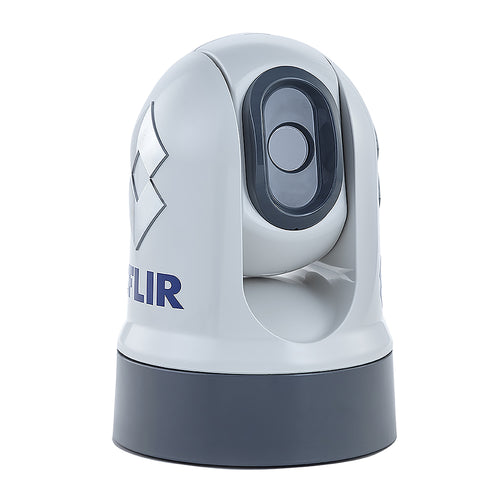

FLIR M232: Pan And Tilt Thermal For Smaller Coastal Vessels

The FLIR M232 is a 320x240 resolution pan and tilt thermal camera designed for smaller vessels operating in coastal and near-shore conditions. It delivers standard-resolution thermal night vision with 360-degree pan and 90-degree tilt capability, providing the entry point into steerable thermal awareness for vessels that do not require high-resolution long-range detection.

FLIR M332: 320x256 Resolution And What It Means For Night Watches

The FLIR M332 delivers 320x256 thermal resolution with two-axis gyro stabilization, 360-degree continuous pan, and 90-degree tilt. It resolves boats and buoys in complete darkness at useful ranges for coastal and offshore operations, where a standard-resolution sensor covers the detection requirements of the vessel and its operational profile on the water.

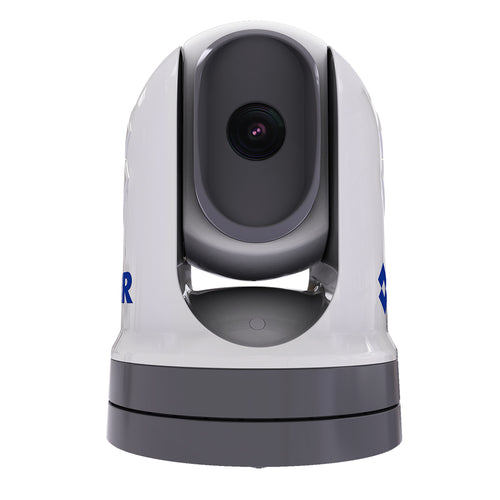

FLIR M364: 640x512 High-resolution And Long-range Target Detection

The FLIR M364 carries a 640x512 high-resolution thermal sensor powered by the FLIR Boson core, delivering nearly double the detection range of standard-resolution M-Series cameras. Two-axis gyro stabilization, Marine Video Analytics, and native chartplotter integration make the M364 the FLIR marine camera of choice for offshore vessels where long-range target resolution is a real operational requirement.

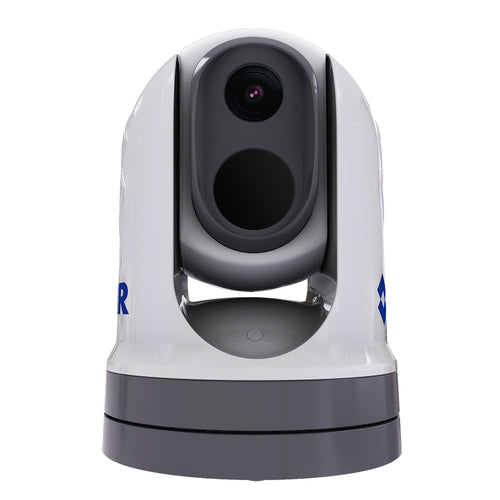

FLIR M364C: Dual Payload Thermal With Color Thermal Vision

The FLIR M364C combines the 640x512 thermal sensor with an ultra-low-light visible camera and Color Thermal Vision technology. CTV blends visible-light detail with thermal imaging, allowing positive identification of navigation aids and other vessels in the thermal scene. For captains who need both detection range and target identification capability from a single camera, the M364C closes both gaps simultaneously.

How Clearcruise Analytics Changes Watch Standing Offshore

ClearCruise Intelligent Thermal Analytics processes the thermal image in real time and generates audible and visual alerts when non-water objects are identified in the scene. For short-handed crews on long offshore passages, automated target detection reduces the cognitive load on watch officers and catches targets that manual scanning would miss during fatigue-affected watch periods.

A thermal camera is only as effective as the system it is part of. Concord Marine Electronics selects and installs FLIR marine thermal cameras based on how each vessel is actually operated on the water, not on which model ships fastest. We carry the full FLIR M-Series and MD-Series lineup and back every installation with professional commissioning. Equipment purchased through Concord Marine Electronics qualifies for a 10% installation discount.

FLIR MD-Series Static Cameras: MD-324 And MD-625

For vessels where a fixed field of view covers the primary risk zone, the FLIR MD-Series delivers thermal detection without the mechanical complexity of pan and tilt systems. We recommend MD-Series cameras for builds where forward-arc thermal coverage is the primary requirement and installation simplicity matters.

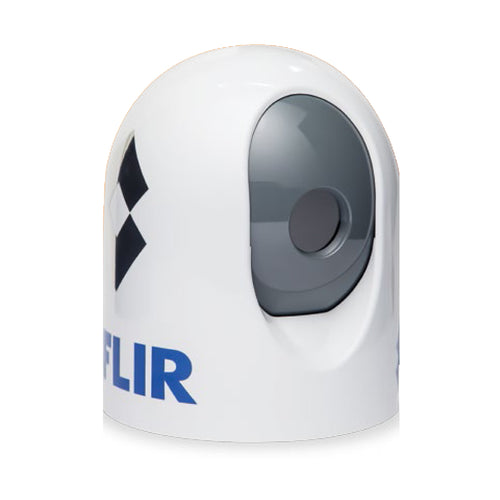

• FLIR MD-324 Static Thermal Night Vision Camera: A fixed-mount thermal camera providing continuous thermal awareness in a designated coverage arc, suited for vessels where the primary threat zone is directly ahead and full pan and tilt capability is not required or justified by the vessel's operational profile.

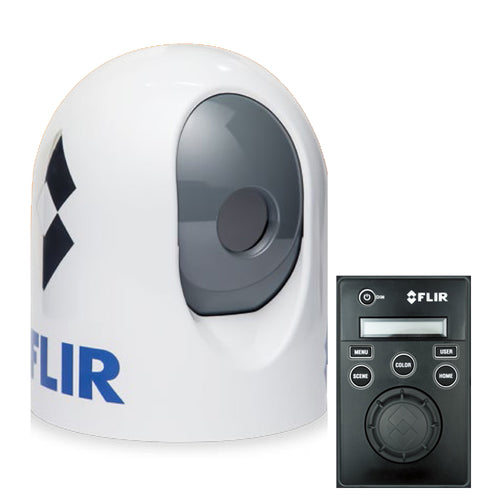

• FLIR MD-625 With Joystick Control Unit: Adds a dedicated joystick control unit to the static thermal platform, allowing manual directional camera control of the thermal view without requiring chartplotter integration for camera management on the water.
• FLIR Ocean Scout Pro Marine Thermal Monocular: A handheld 640x480 thermal monocular for crew-operated situational awareness, vessel inspection in low light, and use cases where a fixed-mount camera is not the right architecture for the vessel's size or operational requirements.

Static thermal cameras are not a compromise. They are the right design choice for specific coverage requirements. Selecting the wrong architecture creates gaps that matter on the water.

Matching The Right FLIR Camera To Your Vessel

Thermal camera selection is determined by vessel size, operational profile, and where the highest-risk gaps exist. At the end of the day, the right camera is the one that closes the specific gaps that make the vessel less safe at night. Captains who want a broader framework for evaluating their full onboard electronics setup will find our Marine Electronics Definitive Guide a useful reference for that process.

• Vessel Size And Detection Range: Larger vessels operating farther offshore need higher-resolution sensors. The 640x512 M364 delivers nearly double the detection range of standard-resolution cameras, which matters when closing speeds are high and reaction time is limited offshore.
• Pan/Tilt vs Fixed Mount: Pan and tilt cameras cover a full 360-degree arc and suit vessels that need steerable awareness across changing bearing. Static mounts are right for defined forward-coverage requirements with simpler installation and fewer mechanical components.
• Chartplotter Compatibility: FLIR M-Series cameras integrate natively with Furuno, Garmin, Raymarine, and Simrad MFDs. Compatibility must be confirmed and integration tested before installation is considered complete and the vessel is returned to service.
• Crew Complement And Watch Standing: Short-handed crews benefit from Marine Video Analytics that generate automatic target alerts. Larger crews with dedicated watch officers may prioritize manual control flexibility and full pan/tilt range over automated detection in their thermal system design.

Why Professional Installation Determines Thermal System Effectiveness

A thermal camera mounted in the wrong position, wired incorrectly, or not properly integrated into the onboard network delivers a fraction of its designed capability. On the water, that shortfall has real consequences that show up exactly when the system is needed most.

Mounting Height, Field Of View, And Camera Position

Mounting height determines horizon clearance. A camera mounted too low on the vessel loses forward thermal coverage to wave interference and hull obstructions. We position FLIR cameras based on vessel geometry, superstructure layout, and the field of view required to cover the specific risk zones identified for that vessel. A camera mounted six inches too low on the bow of a sportfish can cost 400 meters of forward detection range in a two-foot swell.

Cabling, Power, And Network Integration Done Right

FLIR M-Series cameras require proper IP network integration to pass thermal video to helm displays and support Marine Video Analytics processing. Power must be clean and stable. Cable routing must protect connections from corrosion, chafe, and vibration in the marine environment over the long term.

How We Commission And Test Every Thermal Camera System

We commission thermal camera systems with all integrated displays active, all alert functions enabled, and the vessel underway. Pan and tilt response, image stability, chartplotter integration, and alert triggering are all verified under real operating conditions before the system is considered complete.

Our 10% Installation Discount On FLIR Thermal Camera Installs

Equipment purchased through Concord Marine Electronics qualifies for a 10% installation discount applied toward professional installation by our certified technicians. A properly installed FLIR thermal camera system outperforms a self-installed unit of the same model in every measurable way on the water.

Long-term Support And Keeping Thermal Systems Current

FLIR thermal camera systems require firmware management, integration updates as the chartplotter software evolves, and periodic inspection of connections and mounting hardware. We provide long-term support for the thermal systems we install because a camera that worked at commissioning needs to work three years later when the vessel is operating offshore at night.
