A center console boat is a purpose-built machine operating in some of the harshest audio environments on the water. The audio system behind it needs to be engineered for those conditions from the start. We design every center console audio build around the vessel's operating environment, not around a product spec sheet. For a complete overview of what that kind of system-first thinking looks like across all marine electronics, our marine electronics definitive guide covers what boat owners need to know.

How Salt Spray, Vibration, And Sun Exposure Shape Center Console Audio Selection

Salt spray corrodes unprotected connections. UV degrades non-marine-grade cones and surrounds. Vibration at speed loosens poorly secured components and fatigues poorly terminated connections. Every product in a center console audio system must be rated and tested for the conditions the vessel actually operates in on the water.

Why Center Console Boat Audio System Design Starts With The Amplifier

Amplifier selection determines the power available to the speaker system. On a center console where engine noise, wind, and wave action compete with the audio at speed, underpowered amplification produces a system that strains and distorts at the volume levels required to actually hear the music on the water. We specify amplifiers before speakers in every center console audio build.

Best Boat Sound System Architecture For Center Console Helm Layouts

A center console helm layout typically concentrates controls at a single forward station with speakers distributed across the bow, helm, and T-top or leaning post positions. Marine audio system setup on a center console requires zone mapping that accounts for those positions and the distance and ambient noise levels associated with each one on the water.

How Running Speed And Wind Noise Determine Amplifier Power Requirements

A center console running at 35 knots in a chop generates a combined ambient noise level that a 50-watt RMS-per-channel amplifier cannot overcome without distortion. We calculate the amplifier power requirements for each center console build based on vessel speed, speaker positions, and expected operating conditions rather than using a generic power recommendation on the water.

Why Marine Audio System Setup On Center Consoles Requires Zone Planning

A center console with speakers at the bow, helm, and stern offers three functionally distinct listening positions, each with different distances from the amplifier, different ambient noise characteristics, and different user groups. Marine audio system setup without zone planning produces a system that sounds good from one position and poor from all others on the water.

Fusion Apollo MS-RA770: The Right Head Unit For Center Console Builds

The MS-RA770 is the stereo we specify most frequently for center console builds because it combines the features center console owners actually use with the marine durability the environment demands. For a full overview of what a complete system delivers, Garmin's own breakdown of Fusion DSP technology and system integration is worth reading before speccing a build. We recommend it as the primary head unit for center console audio systems that require multi-zone control, streaming capability, and long-term reliability on the water.

Four-zone Audio Control And Why It Fits Center Console Layouts

The MS-RA770's four independent audio zones allow bow, helm, T-top, and stern speaker groups to operate at independently controlled volumes with separate source assignments. On a center console where fishing and social activities occur simultaneously in different areas, four-zone control is the right architecture for the vessel's on-the-water usage profile.

Wi-fi Streaming, Airplay 2, And Bluetooth On The Water

The MS-RA770 delivers Wi-Fi streaming with AirPlay 2, along with Bluetooth connectivity, allowing iPhone and Android users to stream audio wirelessly from a compatible device. Over-the-air Wi-Fi software updates keep the system current without requiring a physical connection or a technician visit for routine firmware management on the water. For a broader look at where onboard technology is heading, our 2026 yacht technology overview is worth a read.

Fusion-link MFD Integration With Garmin And Simrad Chartplotters

Fusion-Link allows the MS-RA770 to be controlled directly from compatible Garmin and Simrad MFDs at the helm. On a center console where the captain is managing navigation, sonar, and audio simultaneously, Fusion-Link integration reduces the number of interfaces requiring attention and keeps helm interaction manageable at speed on the water.

Partybus Networking For Multi-stereo Center Console Builds

On larger center console builds where a secondary helm or cockpit audio station is required, PartyBus networking connects multiple Fusion stereos so all units can play the same audio source in sync or operate independently. We design PartyBus-capable systems for center consoles where a single head unit cannot address all listening positions effectively on the water.

Touchscreen Interface And Why It Works At A Center Console Helm

The MS-RA770's touchscreen interface delivers intuitive source switching, volume control, and zone management at the helm without requiring button navigation, even in the conditions a center console presents on the water. It responds accurately to gloved and wet hands, which is a standard operating condition on a center console fishing vessel.

A center console marine audio system that performs at speed and at anchor starts with the right Fusion Apollo head unit, correctly sized amplification, and JL Audio marine speakers installed by technicians who build these systems in real marine conditions. We design and install complete center console audio systems that are tested on the water before delivery. Equipment purchased through Concord Marine Electronics qualifies for a 10% installation discount. Contact us and build a center console audio system worth listening to on the water. Learn about why Concord Marine Electronics is the right partner for your build before you commit.

Fusion And JL Audio Amplifiers For Center Console Builds

A center console operating at speed in open water needs amplification that overcomes ambient noise without distortion. We size amplifiers to the speaker load, the listening environment, and the way the vessel is used on the water, not to a generic power recommendation applied across all builds.

• Fusion Apollo Marine 4-Channel 1200-Watt Amplifier: A 4-channel marine amplifier delivering the power output required to drive multiple JL Audio speaker pairs across a center console at speed, with marine-grade construction designed for the heat, moisture, and vibration of an open-water fishing environment. We specify this amplifier for center console builds with four or more speaker pairs requiring sustained output under real offshore operating conditions.
• Fusion Apollo Zone Marine Amplifier 140W: A compact zone amplifier suited for secondary audio zones on a center console where a full 4-channel amplifier is not required. It provides clean, reliable amplification for bow or stern speaker positions without oversizing the power budget or creating installation complexity that the zone does not warrant on the water.

Amplifier selection determines whether a center console audio system sounds controlled at volume or strained and distorted at speed in open water.

JL Audio M3 And M6 Marine Speakers For Center Console

Speaker selection for a center console is not just about sound quality. It is about which speaker survives salt fog, UV exposure, and continuous vibration for seasons of hard use on the water. We install JL Audio marine speakers because they are purpose-engineered for real marine duty and tested to exceed industry standards for the conditions center console vessels operate in.

• JL Audio M3 Series 6.5-Inch Marine Coaxial Speakers With Classic Grilles: Purpose-engineered for real marine duty, the M3 650X delivers CHIRP ClearVü sonar in a 6.5-inch coaxial format with a 0.75-inch silk dome tweeter, 60W RMS power handling, a long excursion woofer optimized for open-air operation, and construction exceeding industry salt fog and UV standards. Suited for helm and in-console positions on center console builds where clear, reliable audio at moderate power levels is the primary requirement on the water.
• JL Audio M6 Series 6.5-Inch Marine Coaxial Speakers With Sport Grille: The premium step up from the M3, the M6 650X features a DMA-optimized long-excursion woofer with 75W RMS power handling, a 0.8-inch pure silk dome tweeter, and a true 2-way passive crossover built into the terminal assembly to resist vibration and corrosion. For center console positions where maximum output and low distortion at higher volume levels are required, the M6 is the right driver for the water.
• Fusion Signature Series 3i 8-Inch CRGBW Sports Speakers: An 8-inch marine speaker with built-in CRGBW LED lighting and sport grille design, suited for center console T-top, and tower mounting positions where output at speed and visual presence are both requirements. The 8-inch format delivers full-range performance at the higher ambient noise levels encountered at the T-top position on the water.

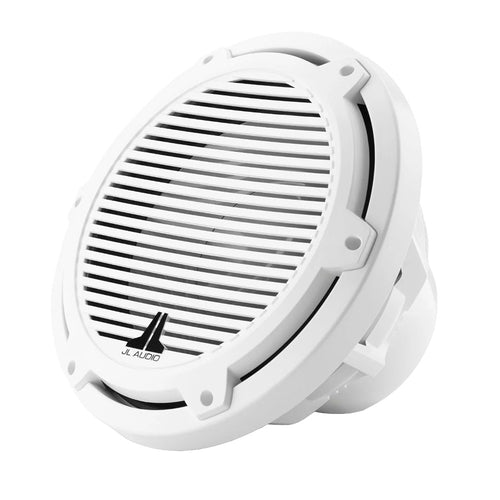

• JL Audio M3 10-Inch Marine Subwoofer With Classic Grille: A marine-grade 10-inch subwoofer built for infinite baffle installation in a center console hull, delivering low-frequency output that separates a complete audio system from a collection of mid-range speakers. We install the M3 subwoofer on center console builds where the owner wants full-range audio performance without the enclosure complexity of a traditional subwoofer cabinet.

JL Audio M3 and M6 speakers, combined with the right amplifier, produce a center console audio system that performs at anchor and at speed without compromising the build quality that marine environments require.

What To Know Before Buying A Center Console Marine Audio System

Center console marine audio purchases made without a complete system plan frequently result in undersized amplifiers, mismatched speakers, and audio that sounds acceptable at the dock but disappoints at speed on the water. We work through these questions with every center console owner before a system is specified or a single component is ordered. Understanding what sets professional local marine electronics dealers apart from online-only sellers is worth knowing at this stage.

How Many Zones Does A Center Console Actually Need

Most center consoles require two to four audio zones covering helm, bow, T-top, and cockpit or stern positions. Zone count determines head unit selection and amplifier architecture before any other feature is evaluated. Getting the zone count right at the start prevents underspecified systems that require expensive rework on the water.

Speaker Size, Mounting Depth, And Vessel Fit Before Ordering

Speaker cutout dimensions, mounting depth, and hull panel thickness must be confirmed against the vessel before any speaker is ordered. A speaker that physically does not fit a mounting position creates installation problems on the day of installation, delaying commissioning and increasing costs on the water.

Why Amplifier Selection Happens Before Speaker Selection

Amplifier selection determines the power budget available to the speaker system. Selecting speakers before confirming amplifier output risks a mismatch between speaker power handling and the actual drive levels, resulting in either underpowered performance or potential driver damage on the water. We specify amplifiers first in every center console audio build.

What Marine Audio System Setup Costs Beyond The Hardware

A complete center console marine audio installation includes marine-grade wiring, fusing, mounting hardware, cable routing, and professional installation labor. Equipment purchased through us qualifies for a 10% installation discount, bringing professional installation within the total system budget rather than treating it as a cost incurred after the hardware is ordered.

How To Get The Most From A Center Console Audio Investment

The maximum return on a center console audio investment comes from specifying the right system for the vessel from the start, installing it correctly, and maintaining it with the same attention given to the rest of the vessel's marine electronics systems on the water. We deliver that outcome on every center console audio build we complete.
